SECTION 10 -- ENGINE -- CHAPTER 1 15
84176554 -- 03--2008

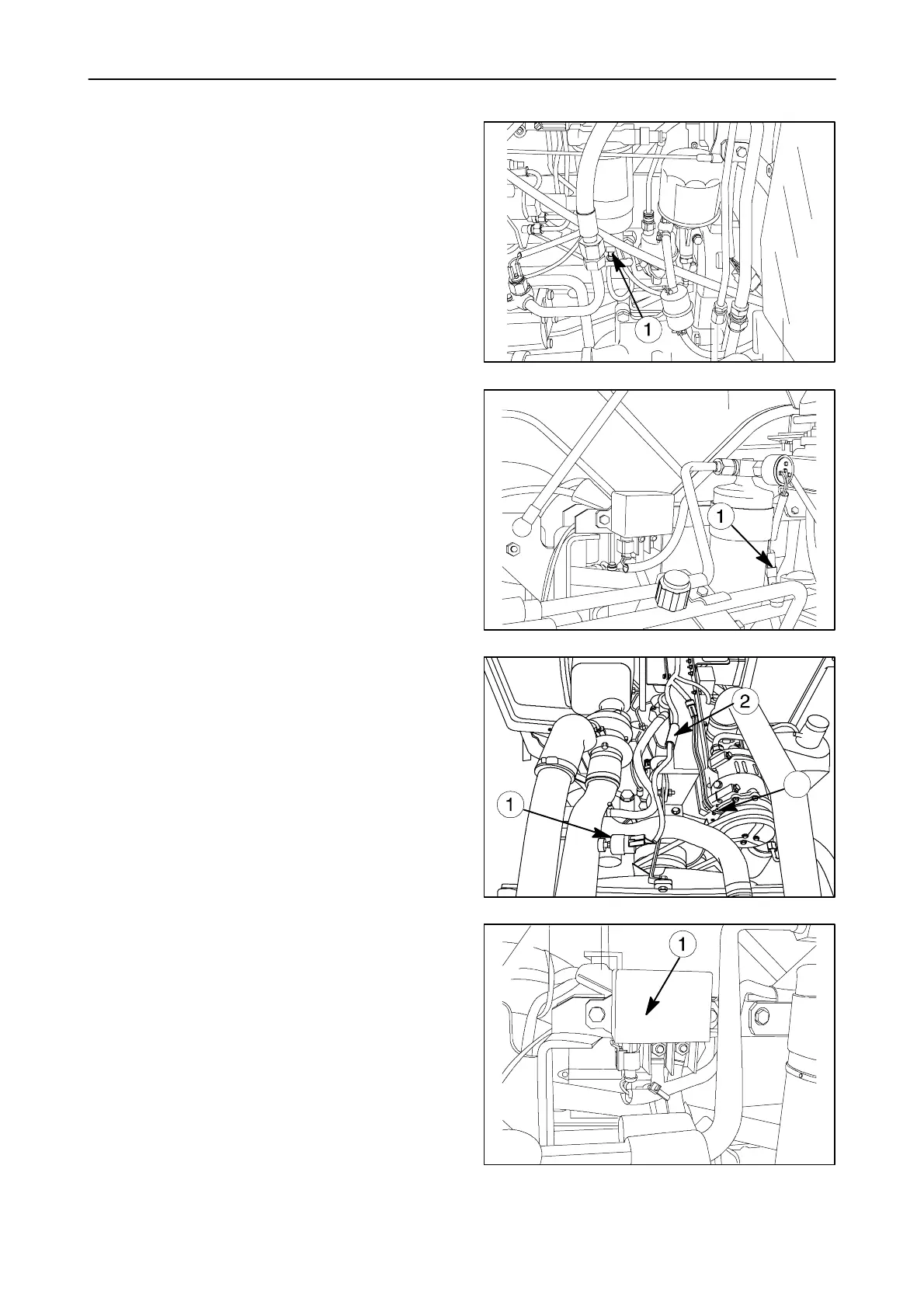

35. Disconnect the electrical connection of water in
fuel sensor (1).
32
36. Disconnect the electrical connections of dryer
filter sensor (1).
33
37. Remove the electrical connection (1), air filter
clogging sensor (2) and AC compressor
electrical connection (3).
3
34
38. Remove the two retaining bolts and the support
together with relays protecting system (1).
35
