Case JX80 - Engine Removal - Connectors and Hoisting; Brake Lights Switch Connectors; Pipe Extraction and Bracket Removal; Hitching Engine for Hoist

16 SECTION 10 -- ENGINE -- CHAPTER 1
84176554 -- 03--2008

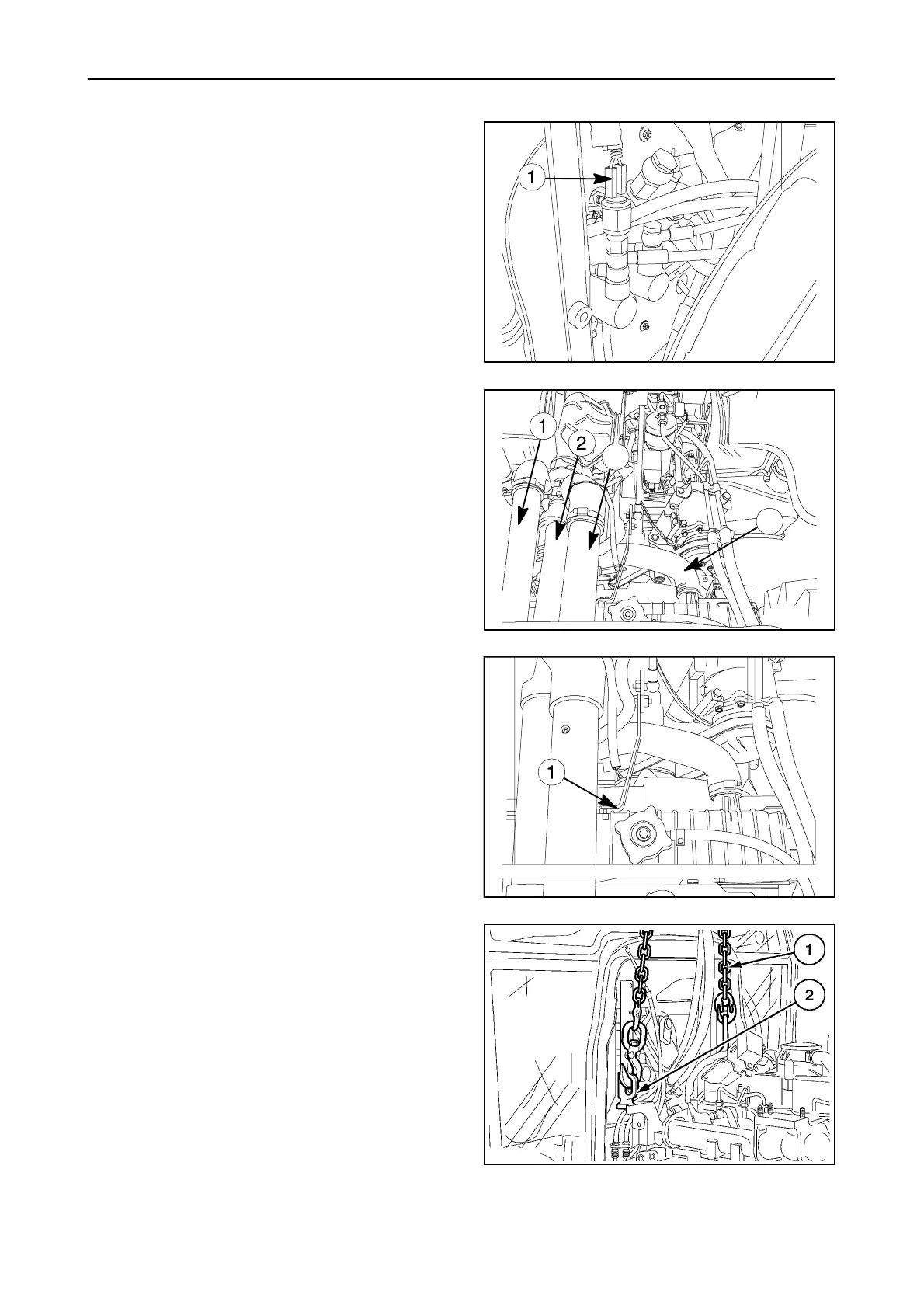

39. Remove the two connectors of the brake lights
switch (1).
36
40. Loosen the corresponding retaining clamps and
extract the pipes (1), (2), (3) and (4).
3
4
37
41. Loosen the corresponding retaining bolts and
remove the bracket (1).
38
42. Hitch the engine to the hoist with the chains
anchouring it to the attachments on the engine.
39
