SECTION 10 − ENGINE − CHAPTER 1 17
84176554 − 03−2008

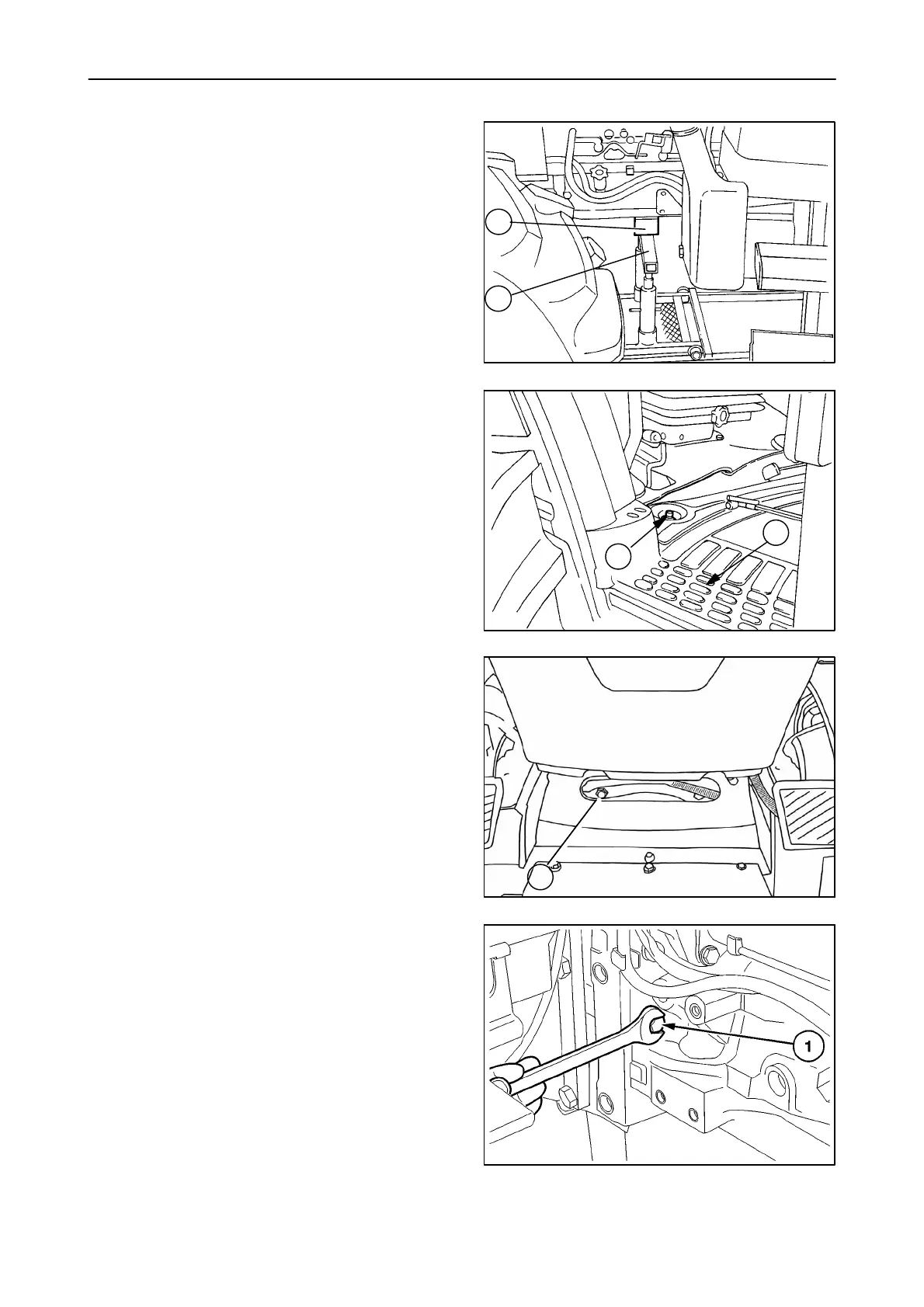

43. Position the movable tool for dismantling tractors
380000569 with the bracket 380000500 and
adapter plate 380000844 under the engine and
place a wooden block in between the points of
contact between the tool and tractor.
1
2
40
44. Extract the differential lock pedal retaining pin
from the drive shaft (1), remove the pedal and
footboard (2).
25043
1
2
41
45. Unscrew the nuts (1) and the bolts securing the
engine to the transmission. Access is through
the two slots in the cab floor.
1
42
46. Remove the remaining six retaining bolts at the
bottom and side.
43
