SECTION 2 - OPERATION
2-7

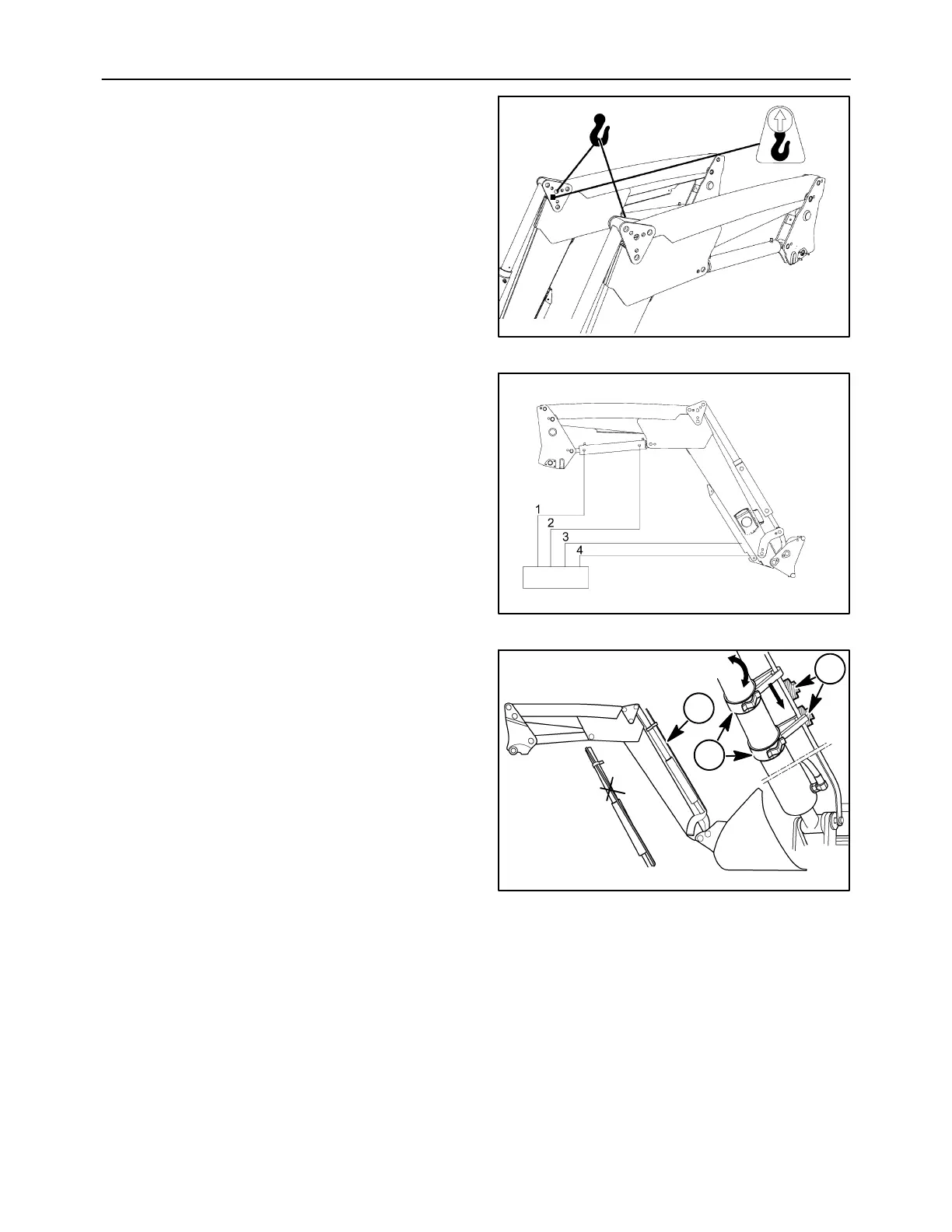

Lift the loader up onto the subframe. Holes for
attaching the lifting hooks are found on the inside of
the tie plates.
Make sure that the lock handle on Quick Lock is
pulled out and rests on the heel. When the bearing
box passes the stop, the Quick Lock system will lock
the loader to the subframe. Make sure that the end
of the lock pin is visible on the inside of both the left
and right bearing boxes.
0175
15
Connect the hoses to the hydraulic source as shown
in the illustration.
The control joystick must be connected to the valve
so that the loader is raised when the joystick is moved
rearwards.
0175
16
Install the Position Indicator
The position indicator can be mounted on the left or
right bucket/attachment ram. Set your attachment in
a level position and adjust your indicator (A) to
reference point (B) on the indicator rod. Check that
the indicator moves freely and adjust as needed.
Incorrect installation can cause damage to the
indicator.
86064677
C
B
A
17
