SECTION 2 - OPERATION
2-11

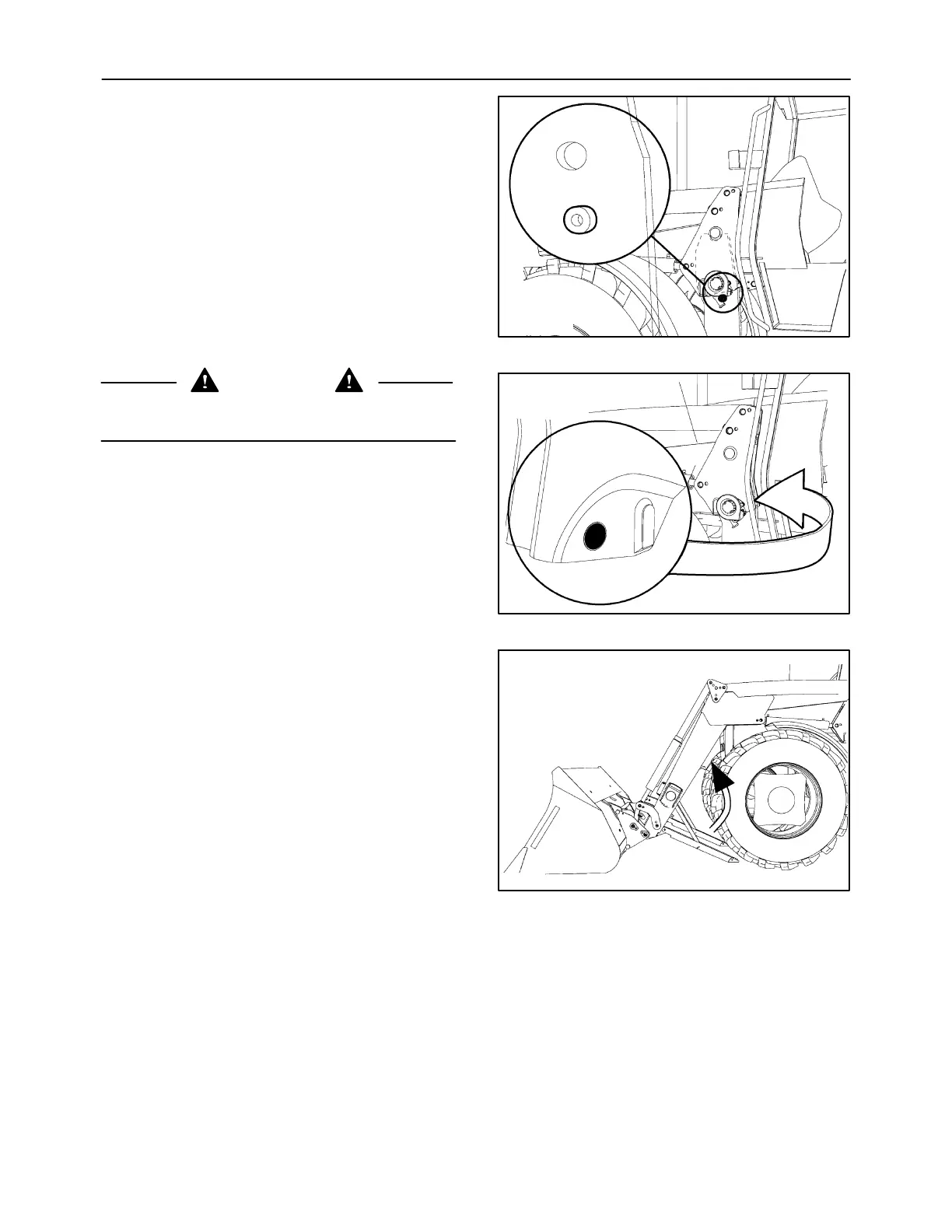

By extending the lift cylinders, the boom connecting
system will be engaged by contacting the latch bolts
on the subframes. When the end of the locking pin is
visible on the inside of the bearing boxes, the loader
is locked in place.
0143
24
CAUTION
Make sure that the end of the locking pins are
visible on both right and left bearing boxes.
0161
25
Fold the parking stands and secure in the storage
position.
0141
26
