SECTION 6 - SPECIFICATIONS
6-2
1

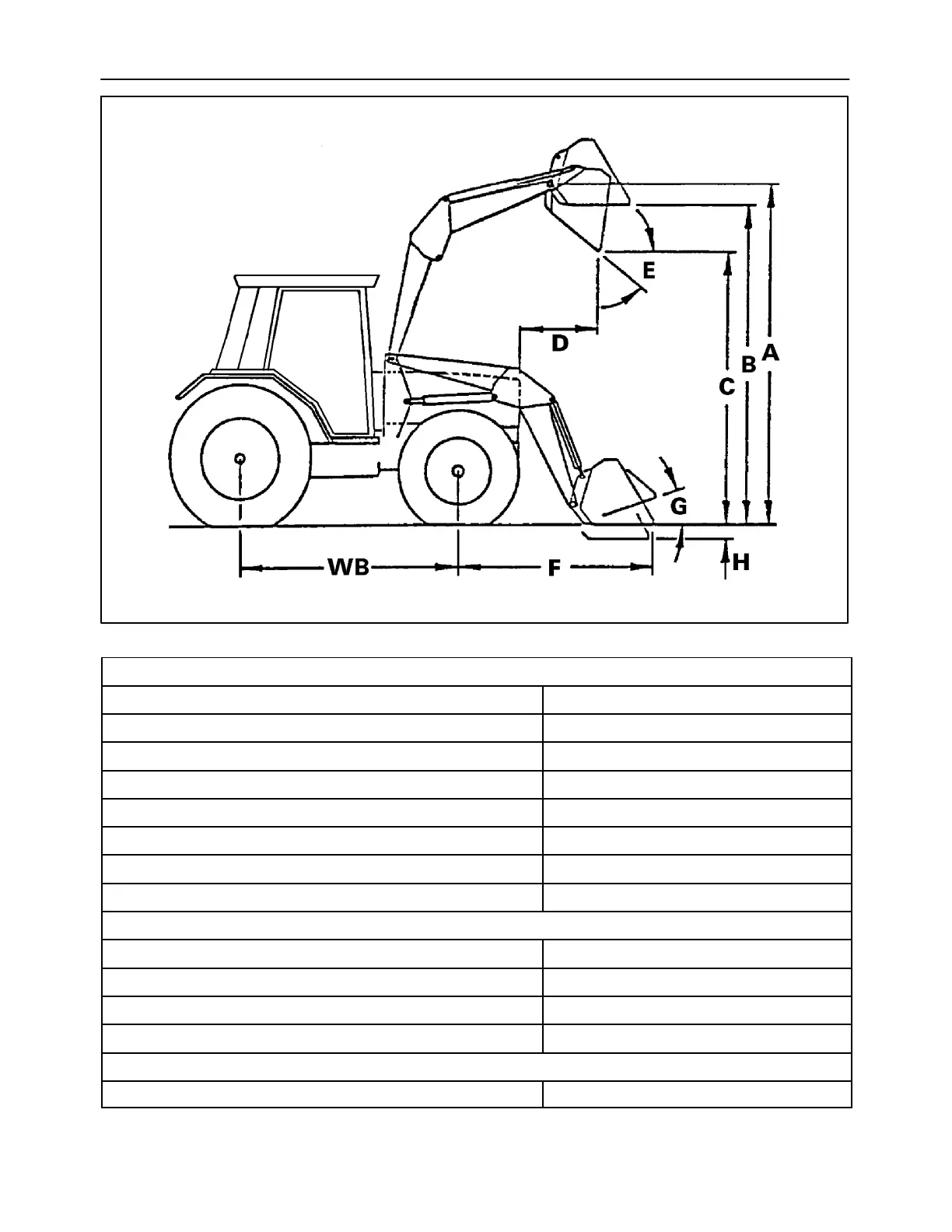

Dimension Specification (inch/mm)
A. Maximum lifting height to pivot pin 187 / 4750
B. Maximum lift height under level bucket 175 / 4445
C . Clearance with bucket dumped 150 / 3810
D. Reach at maximum lift height 7 / 179
E. Maximum dump angle 57 deg
F. Reach with bucket at ground 109 / 2769
G. Maximum rollback angle 38 deg
H. Digging depth 6 / 152
Cycle Times (seconds)
Raising Time 3.4
Lowering Time 2.7
Bucket Dump Time 1.8
Bucket Rollback Time 1.8
Approximate Weight (loader w/o bucket) lb / kg
1780 / 807
