Engine-Engineandcrankcase

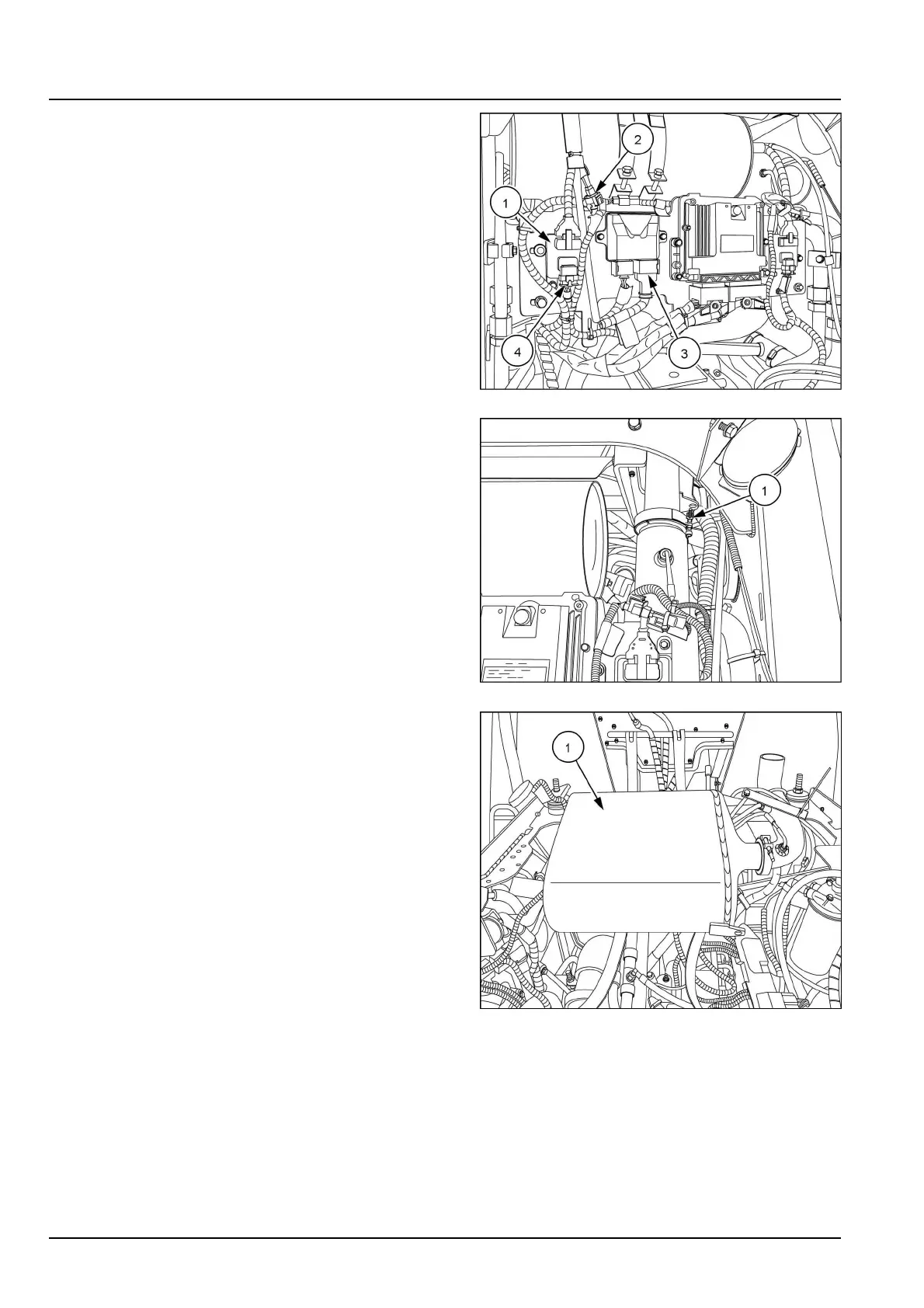

24.DisconnecttheNOxmodule(4),NH3module(3),and
temperaturesensor(2).
25.Removeanywireties,P-clamps,andretainersthat
aresecuringthesewires.
26.DetachtheNOxmodule(1)fromthebracketforthe
controlmodules.
RAIL14SSL0792BA16
27.Removetheexhaustclamp(1).
RAIL14SSL0791BA17
28.Detachtheselectivecatalyticreduction(SCR)mufer
(1)fromthemufermountingbracket.Savethehard-
wareforreuse.
29.RemovetheSCRmufer(1).
RAIL14SSL0853BA18
4768516124/06/2015
10.1[10.001]/10
