Engine-Engineandcrankcase

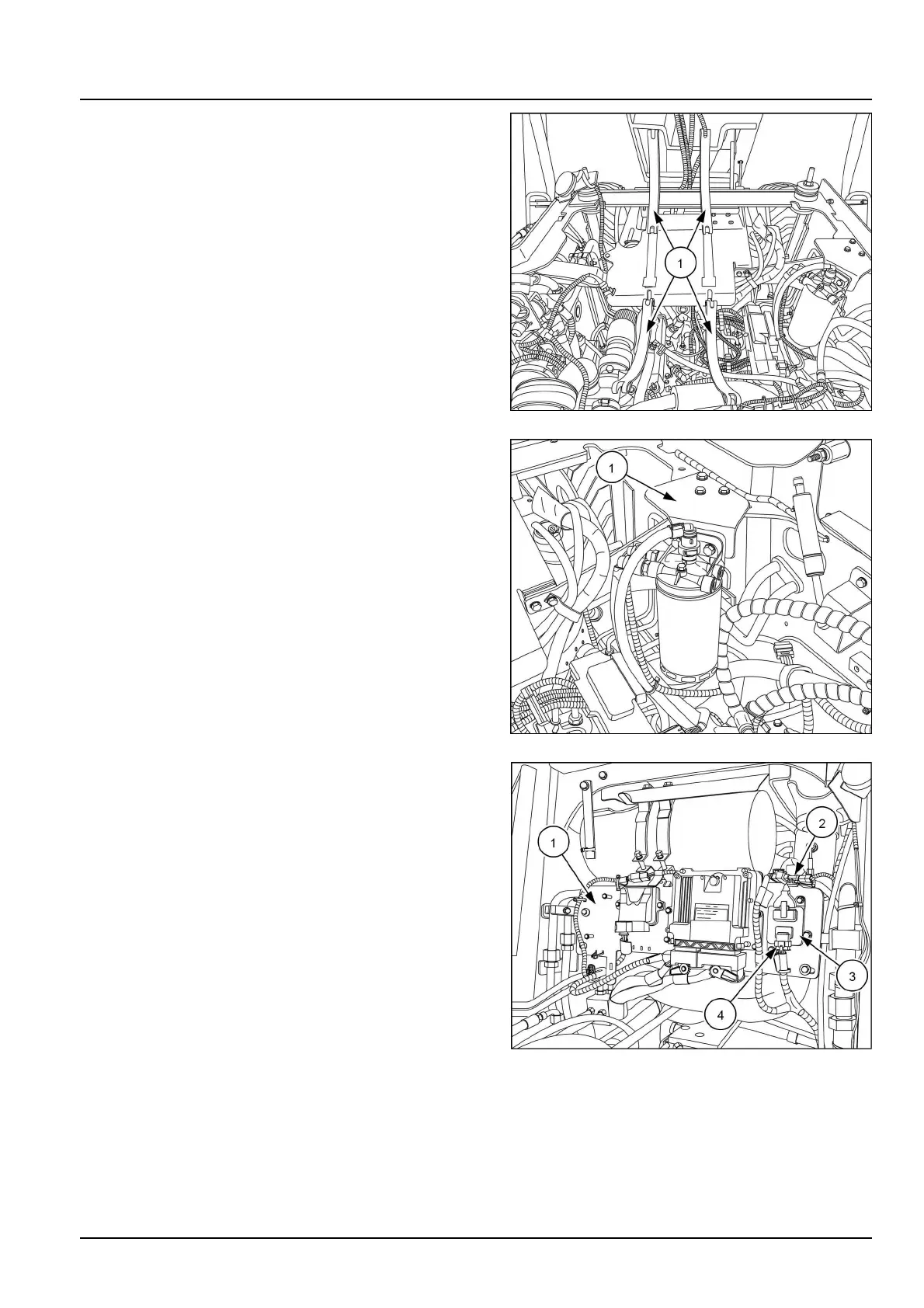

30.Removetheretainingstraps(1)fortheSCRmufer.
RAIL14SSL0854BA19
31.Detachthefuellterassembly(1)fromthechassis.
32.Laythefuellterassembly(1)ontheengine.
RAIL14SSL0855BA20
33.Disconnectthecontrolmodule(4)fortheNOxsensor
andthetemperaturesensor(2).
34.Removeanywireties,P-clamps,andretainersthat
aresecuringthesewires.
35.Detachthecontrolmodule(3)fortheNOxsensorfrom
thebracket(1)forcontrolmodules.
36.Detachthebracket(1)forthecontrolmodulesfrom
thechassis.
RAIL14SSL0788BA21
