— 23 —
3
4
5

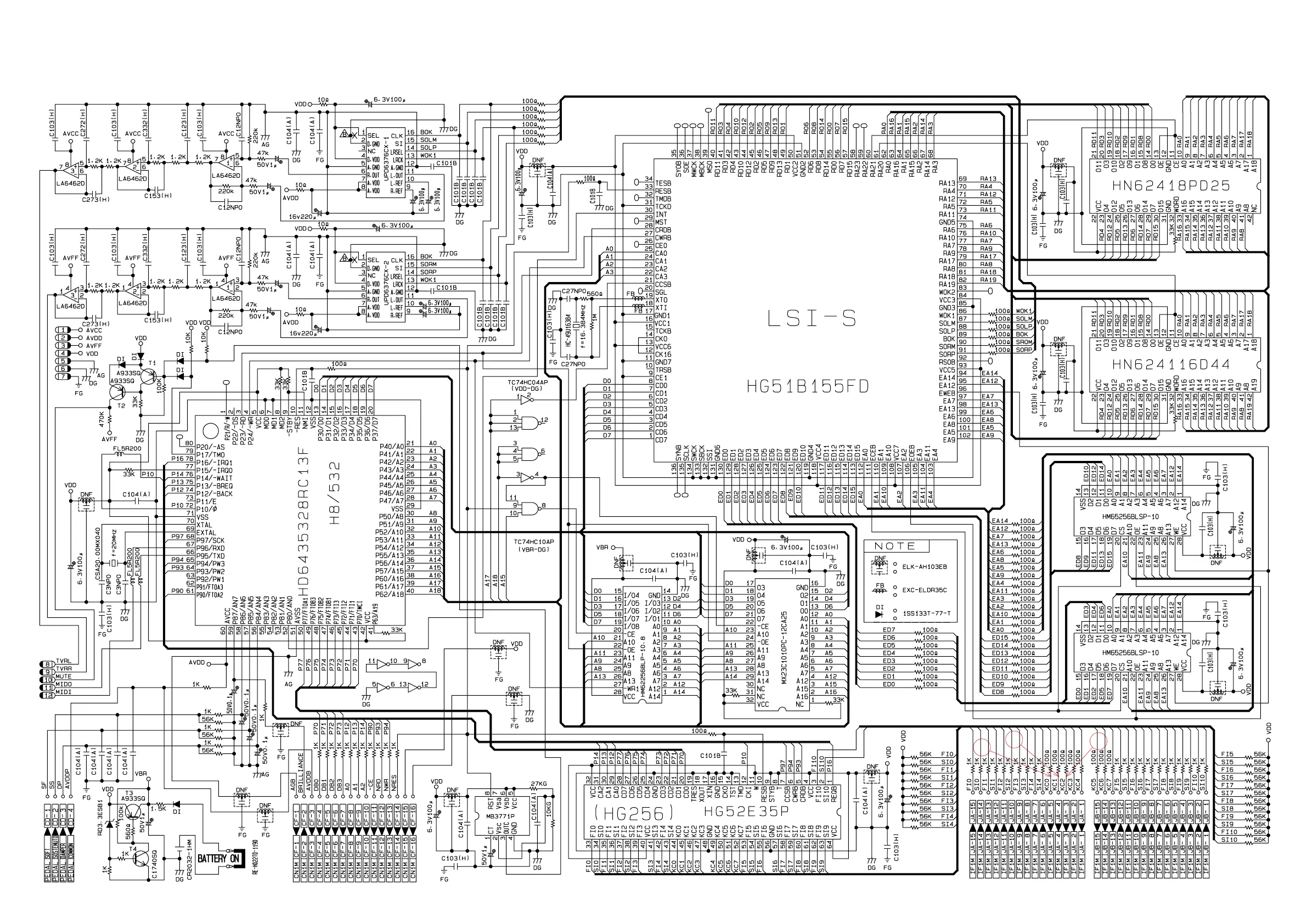

SCHEMATIC DIAGRAMS
MAIN PCB JCM433-MA1M (1/2)
DSP
CPU
ROM
(1M)
RAM
(256K)
Reset IC
Key Controller
RAM
(256K)
RAM
(256K)
ROM (16M)
ROM (8M)
D/A Converter
D/A Converter
