Casio AP-20 Service Manual

— 9 —
7. Disassembling keyboard PCBs
7-1. Turn round the keyboard unit to face the PCB
up.
7-2. Disconnect the connector at the middle of
keyboard.
7-3. Remove screws on the keyboard PCBs.

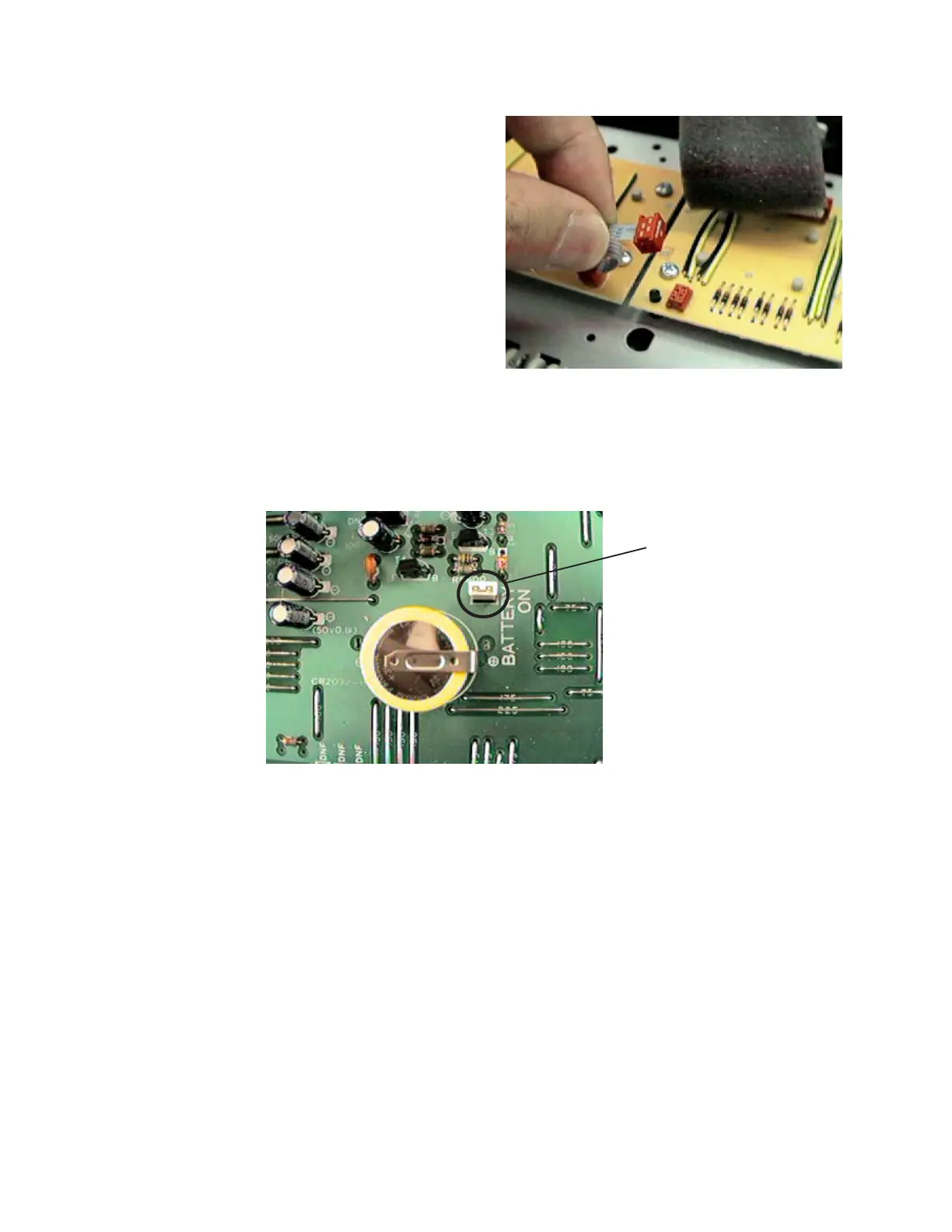

Jumper
8. Replacing the main PCB
Note: The main PCB contains a lithium battery for memory back-up. Please remove the jumper
before replacing the PCB. And make sure that the jumper is reset on new main PCB after
replacing the PCB. Because no jumper is set on a spare part of the main PCB.
