Casio CDP-130 Service Manual & Parts Guide

CDP-130
– 11 –

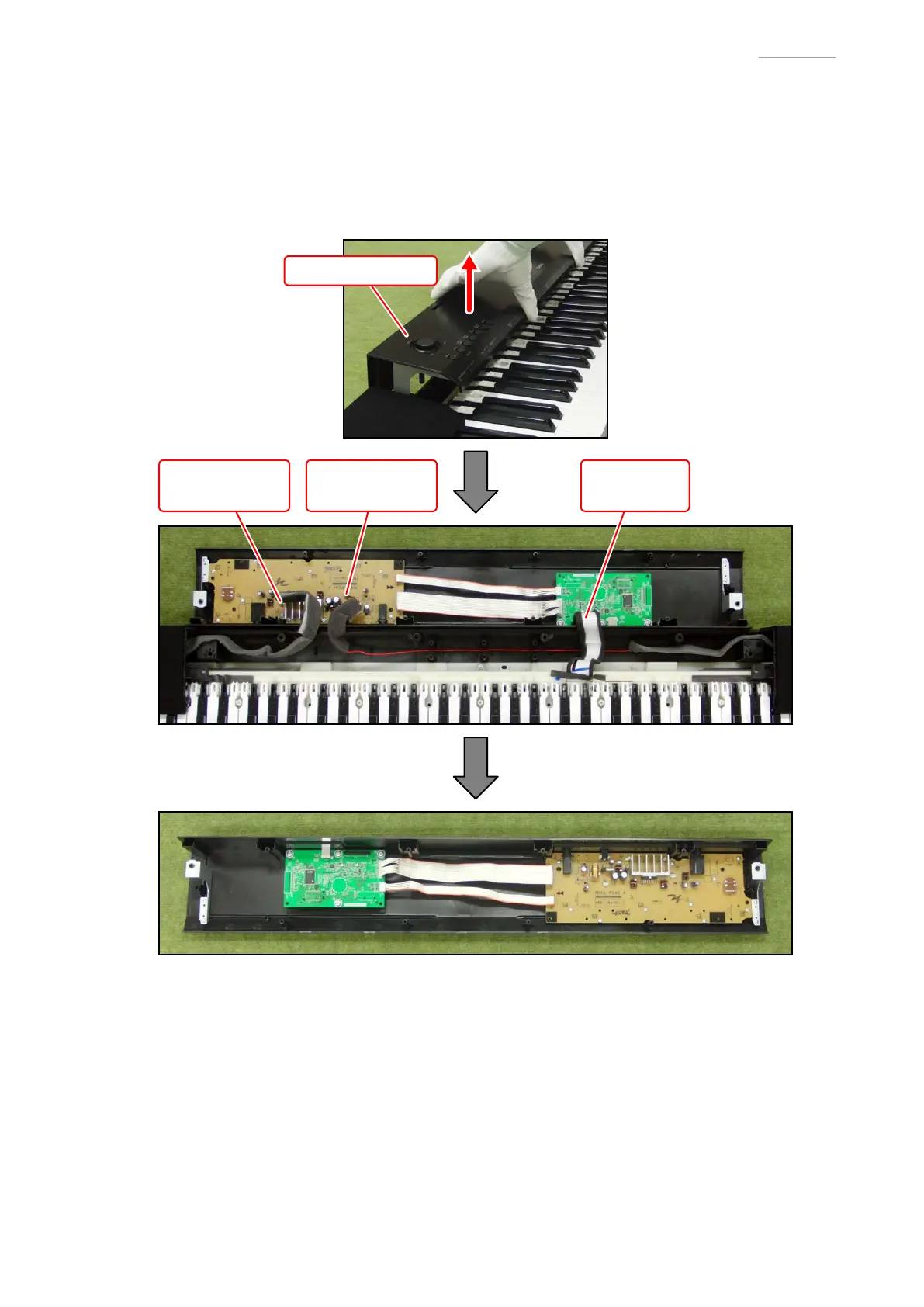

A-4. Place the digital piano with keyboard facing up.
A-5. Lift the Main Panel Unit and turn it over.
[NOTE] The Main Panel Unit is connected to the lower case with the cables. Use caution when
turn over the Main Panel Unit.
A-6. Unlock the connector and disconnect the fl at cable.
A-7. Disconnect two connectors and then remove the Main Panel Unit.
Connector
(Right speaker)
Flat cable
(KYB1 PCB)
Connector
(Left speaker)
Main Panel Unit

Casio CDP-130 Specifications

General

USB port	No
Headphone outputs	1
USB connector type	USB Type-B
Headphone connectivity	6.3 mm
Sound effects	Chorus, Reverberation
Output voltage	1.5 V
Output impedance	3 Ω
Number of speakers	2
Metronome tempo range	30 - 255 bpm
Amplifier output power	16 W
Chorus effects quantity	5
Maximum polyphony (notes)	48
Reverberation effects quantity	10
Adjustable tone range (octaves)	-12 - 12
Keys quantity	88 keys
Product color	Black
Power source type	-
Power consumption (min)	18 W

Weight and Dimensions

Depth	286 mm
Width	1322 mm
Height	129 mm
Weight	10800 g
Stand depth	373.2 mm
Stand width	1332 mm
Stand height	753.3 mm
