Casio CDP-130 Service Manual & Parts Guide

CDP-130
– 14 –

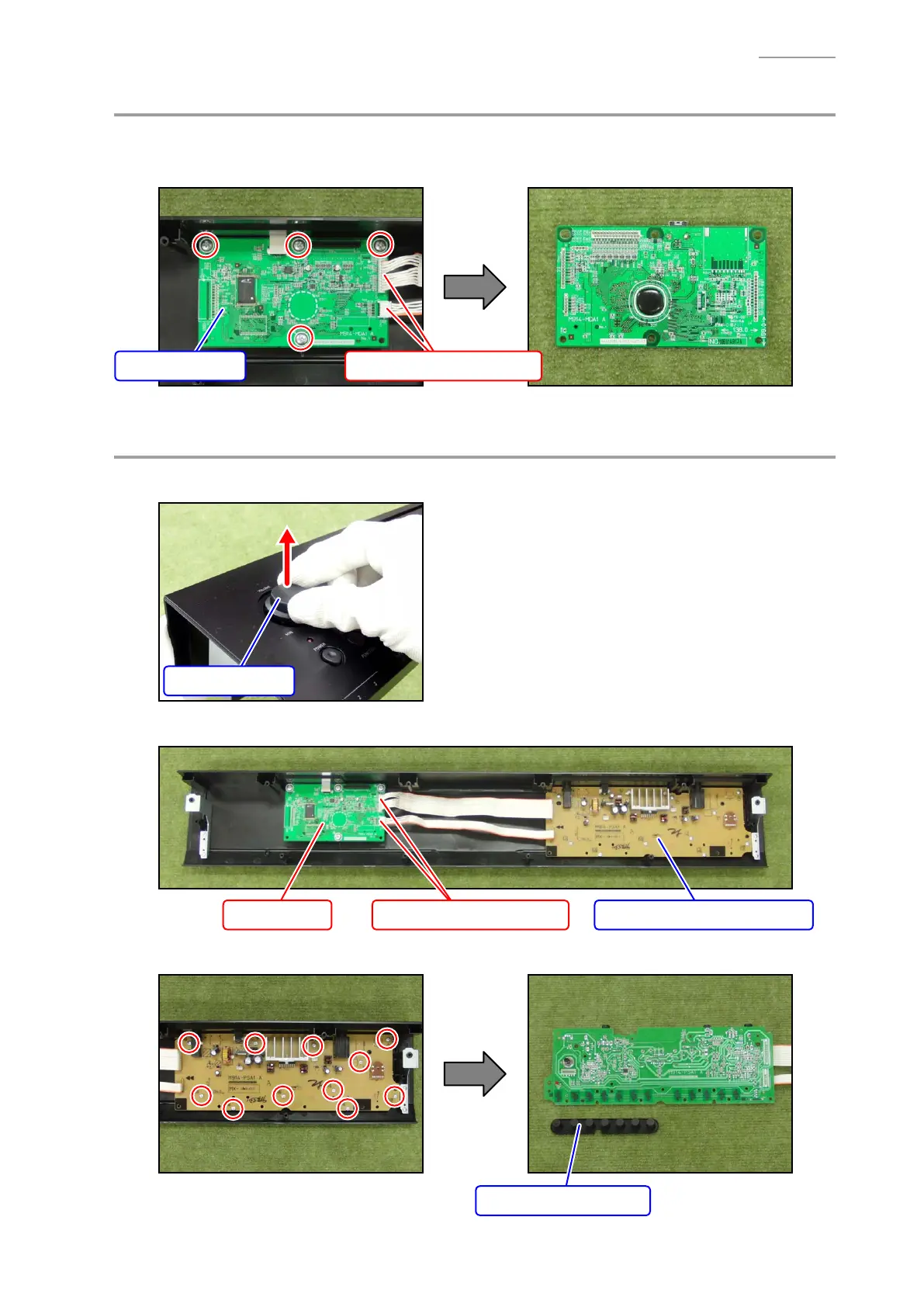

B. Remove the PCB UNIT/MAIN
B-1. Disconnect two connectors.
B-2. Undo four screws and then remove the PCB UNIT/MAIN.
PCB UNIT/MAIN Connectors (PSA1 PCB)
C. Remove the PCB UNIT/POWER & AMP
C-1. Remove the KNOB/ROTARY.
KNOB/ROTARY
C-2. Disconnect two connectors from the MDA1 PCB.
PCB UNIT/POWER & AMPConnectors (PSA1 PCB)MDA1 PCB
C-3. Undo 11 screws and then remove the PCB UNIT/POWER & AMP and RUBBER BUTTON/A.
RUBBER BUTTON/A

Casio CDP-130 Specifications

General

USB port	No
Headphone outputs	1
USB connector type	USB Type-B
Headphone connectivity	6.3 mm
Sound effects	Chorus, Reverberation
Output voltage	1.5 V
Output impedance	3 Ω
Number of speakers	2
Metronome tempo range	30 - 255 bpm
Amplifier output power	16 W
Chorus effects quantity	5
Maximum polyphony (notes)	48
Reverberation effects quantity	10
Adjustable tone range (octaves)	-12 - 12
Keys quantity	88 keys
Product color	Black
Power source type	-
Power consumption (min)	18 W

Weight and Dimensions

Depth	286 mm
Width	1322 mm
Height	129 mm
Weight	10800 g
Stand depth	373.2 mm
Stand width	1332 mm
Stand height	753.3 mm
