Casio CDP-130 Service Manual & Parts Guide

CDP-130
– 15 –

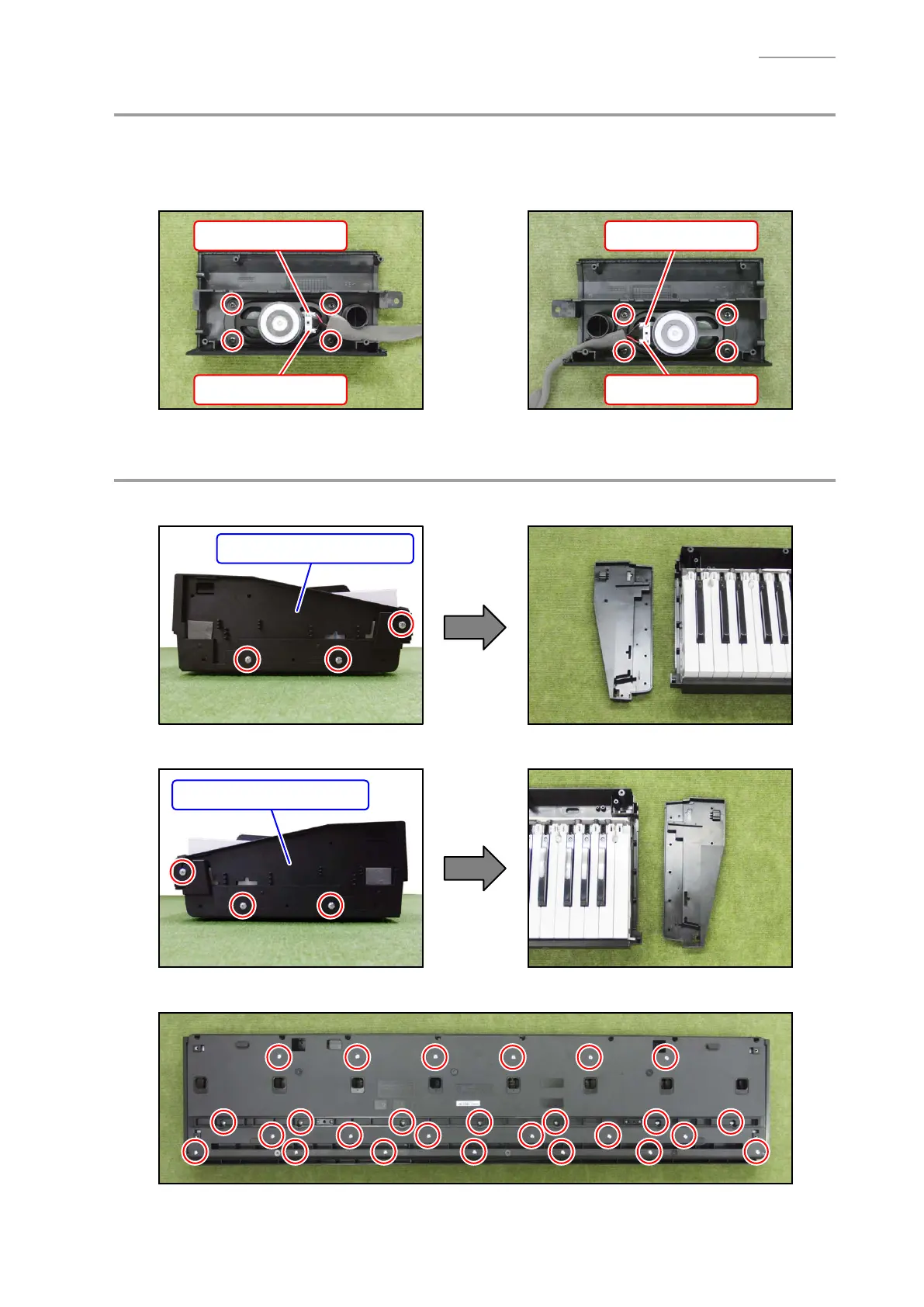

D. Remove the SPEAKER
D-1. Unsolder two lead wires.
D-2. Undo four screws and then remove the SPEAKER.
<Left speaker> <Right speaker>
Lead wire (Black)
Lead wire (Red)
Lead wire (Red)
Lead wire (Black)
E. Remove the Keyboard Unit
E-1. Undo three screws and then remove the CASE/SIDE/INNER/LEFT.
CASE/SIDE/INNER/LEFT
E-2. Undo three screws and then remove the CASE/SIDE/INNER/RIGHT.
CASE/SIDE/INNER/RIGHT
E-3. Undo 26 screws.
