Casio CDP-130 Service Manual & Parts Guide

CDP-130
– 23 –

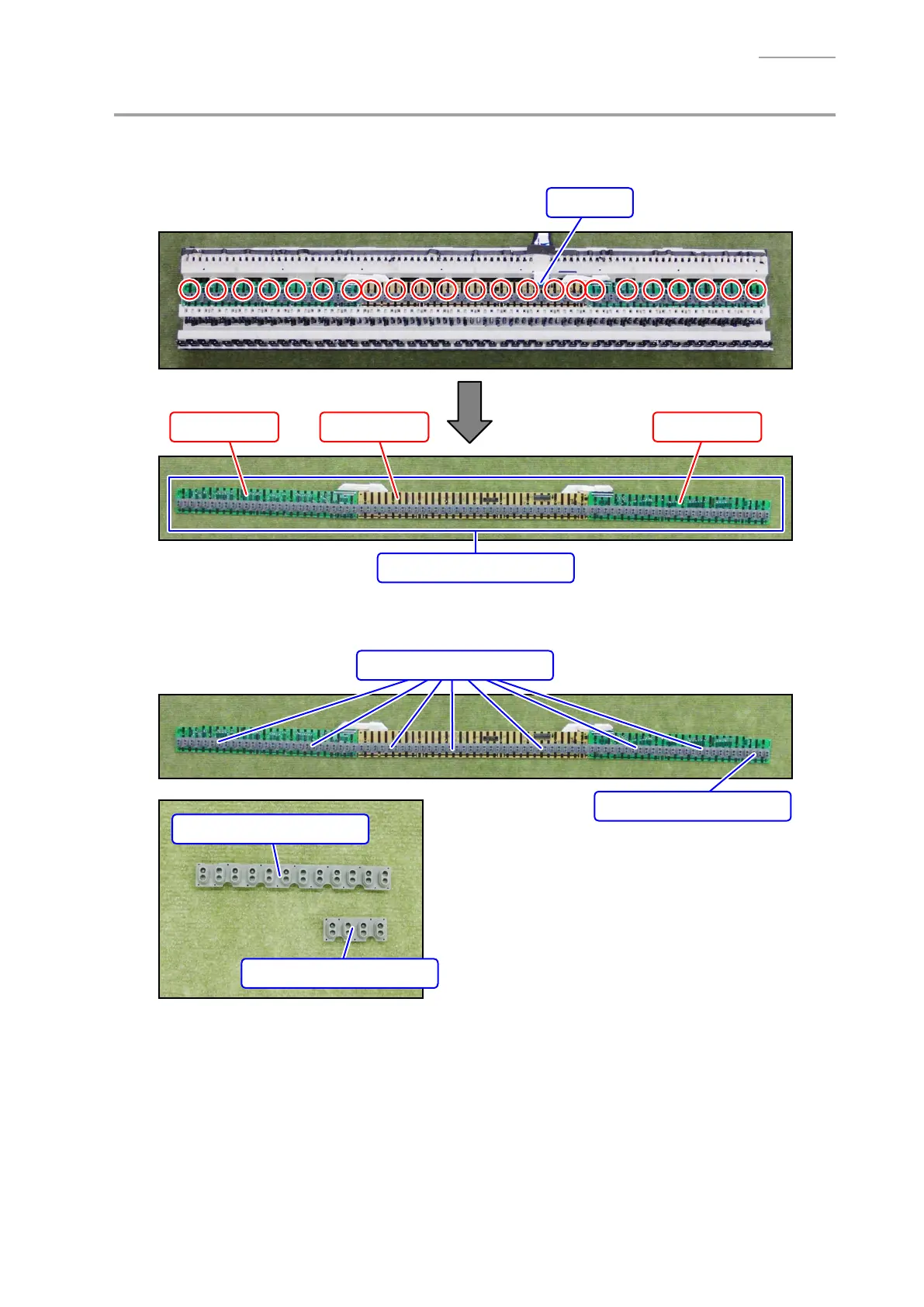

C. Remove the PCB UNIT/KEYBOARD
C-1. Unlock the connector and disconnect the CABLE.
C-2. Undo 23 screws and then remove the PCB UNIT/KEYBOARD.
CABLE
PCB UNIT/KEYBOARD
KYA1 PCB KYB1 PCB KYC1 PCB
C-3. Remove eight RUBBER CONTACT.
[NOTE] The RUBBER CONTACT/GC differs from the others in length.
RUBBER CONTACT/AG
RUBBER CONTACT/AG
RUBBER CONTACT/GC
RUBBER CONTACT/GC

Casio CDP-130 Specifications

General

USB port	No
Headphone outputs	1
USB connector type	USB Type-B
Headphone connectivity	6.3 mm
Sound effects	Chorus, Reverberation
Output voltage	1.5 V
Output impedance	3 Ω
Number of speakers	2
Metronome tempo range	30 - 255 bpm
Amplifier output power	16 W
Chorus effects quantity	5
Maximum polyphony (notes)	48
Reverberation effects quantity	10
Adjustable tone range (octaves)	-12 - 12
Keys quantity	88 keys
Product color	Black
Power source type	-
Power consumption (min)	18 W

Weight and Dimensions

Depth	286 mm
Width	1322 mm
Height	129 mm
Weight	10800 g
Stand depth	373.2 mm
Stand width	1332 mm
Stand height	753.3 mm
