Casio CDP-130 Service Manual & Parts Guide

CDP-130
– 24 –

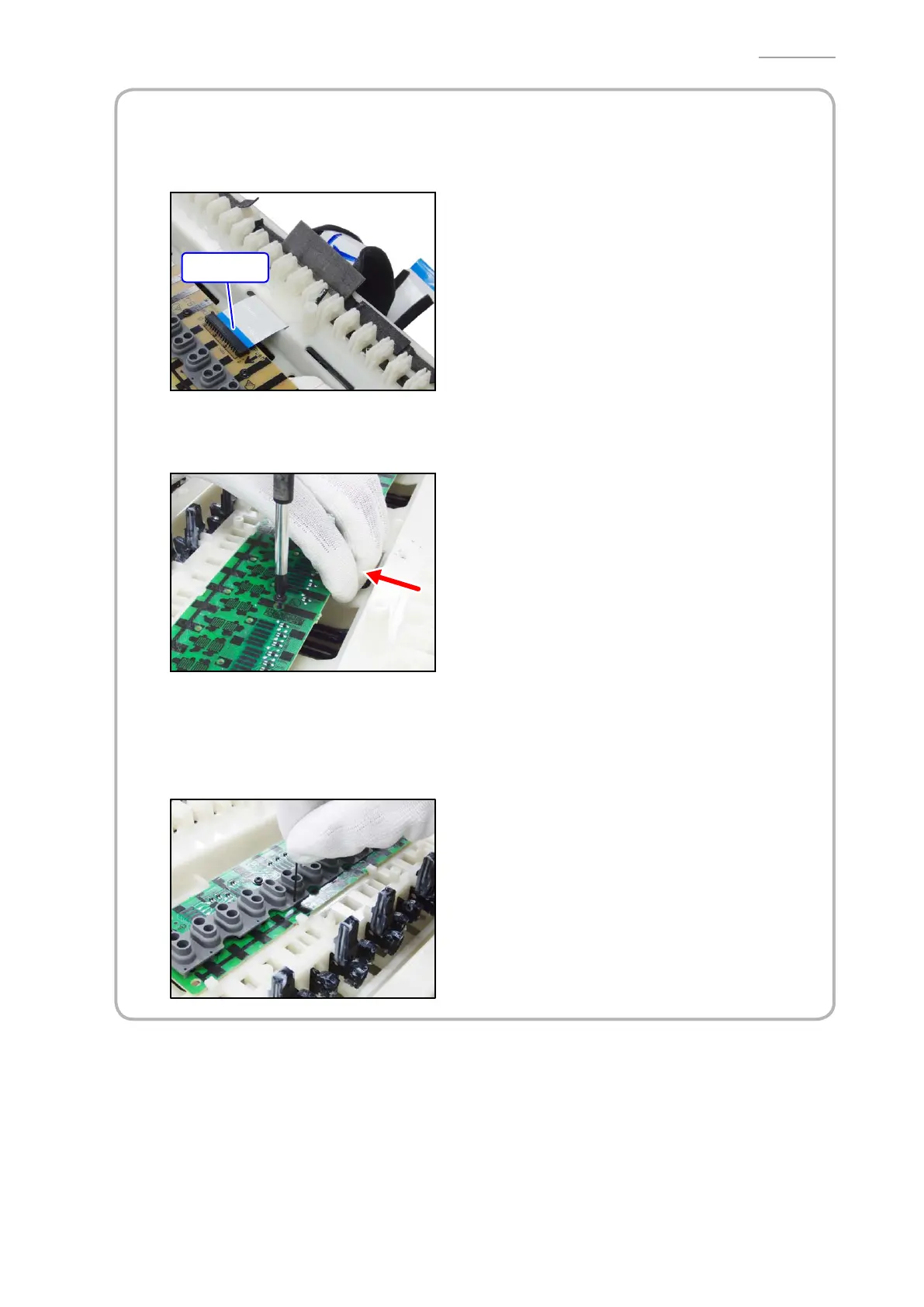

<Installing the PCB UNIT/KEYBOARD>
(1) Connect the CABLE to the KYB1 PCB and lock the connector.
[NOTE] Insert it fi rmly and lock up.
CABLE
(2) Secure the KYA1/KYB1/KYC1 PCBs with 23 screws.
Press the PCBs lightly in the direction of the red arrow in the illustration below while tightening
a screw.
(3) Install eight RUBBER CONTACT.
[NOTE] Be sure to install the RUBBER CONTACT/GC at the correct location.
[NOTE] Lightly insert the tip of a rubber contact strip into the PCB fi rst, and then, press it
in using the end of a paper clip. Do not press the RUBBER CONTACT forcefully to
avoid damaging the RUBBER CONTACT.

Casio CDP-130 Specifications

General

USB port	No
Headphone outputs	1
USB connector type	USB Type-B
Headphone connectivity	6.3 mm
Sound effects	Chorus, Reverberation
Output voltage	1.5 V
Output impedance	3 Ω
Number of speakers	2
Metronome tempo range	30 - 255 bpm
Amplifier output power	16 W
Chorus effects quantity	5
Maximum polyphony (notes)	48
Reverberation effects quantity	10
Adjustable tone range (octaves)	-12 - 12
Keys quantity	88 keys
Product color	Black
Power source type	-
Power consumption (min)	18 W

Weight and Dimensions

Depth	286 mm
Width	1322 mm
Height	129 mm
Weight	10800 g
Stand depth	373.2 mm
Stand width	1332 mm
Stand height	753.3 mm
