Casio CDP-130 Service Manual & Parts Guide

CDP-130
– 36 –

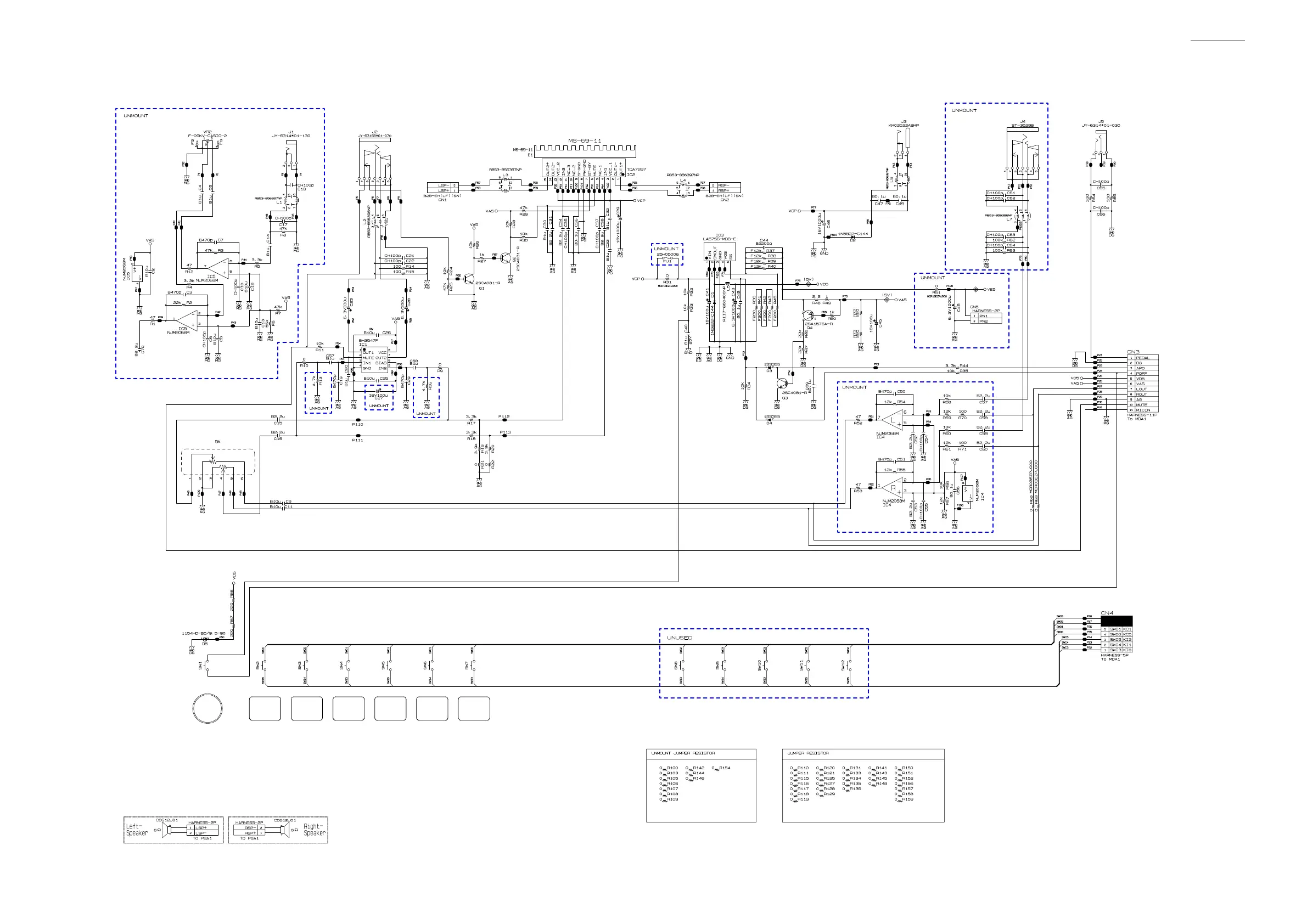

Power & Amp PCB: M914-PSA1
MAIN VOL. (VR1)
POWER SWITCH
POWER DEMO
FUNCTION
GRAND
PIANO 1
ELEC
PIANO 1
METRONOME HALL
LEFT SPEAKER RIGHT SPEAKER
(to MDA1/CN20)
(to MDA1/CN11)
PHONES (J2)
(to RIGHT SPEAKER)
DC 12 V IN (J3) DAMPER PEDAL (J5)
(to LEFT SPEAKER)

Casio CDP-130 Specifications

General

USB port	No
Headphone outputs	1
USB connector type	USB Type-B
Headphone connectivity	6.3 mm
Sound effects	Chorus, Reverberation
Output voltage	1.5 V
Output impedance	3 Ω
Number of speakers	2
Metronome tempo range	30 - 255 bpm
Amplifier output power	16 W
Chorus effects quantity	5
Maximum polyphony (notes)	48
Reverberation effects quantity	10
Adjustable tone range (octaves)	-12 - 12
Keys quantity	88 keys
Product color	Black
Power source type	-
Power consumption (min)	18 W

Weight and Dimensions

Depth	286 mm
Width	1322 mm
Height	129 mm
Weight	10800 g
Stand depth	373.2 mm
Stand width	1332 mm
Stand height	753.3 mm
