6-10. To mount optional circuit

The following optional circuits are provided for model CE-6000.

1. Multi-drawer circuit

2. Paper near end circuit

1) Multi-drawer kit (Only Drawer 2)

1-1. Prepare the following parts kit for multi-drawer circuit. The parts kits are supplied from sales

division.

MDL-10--------------- Multi-drawer kit

1-2. Check whether the parts of clerk kit are as follows:

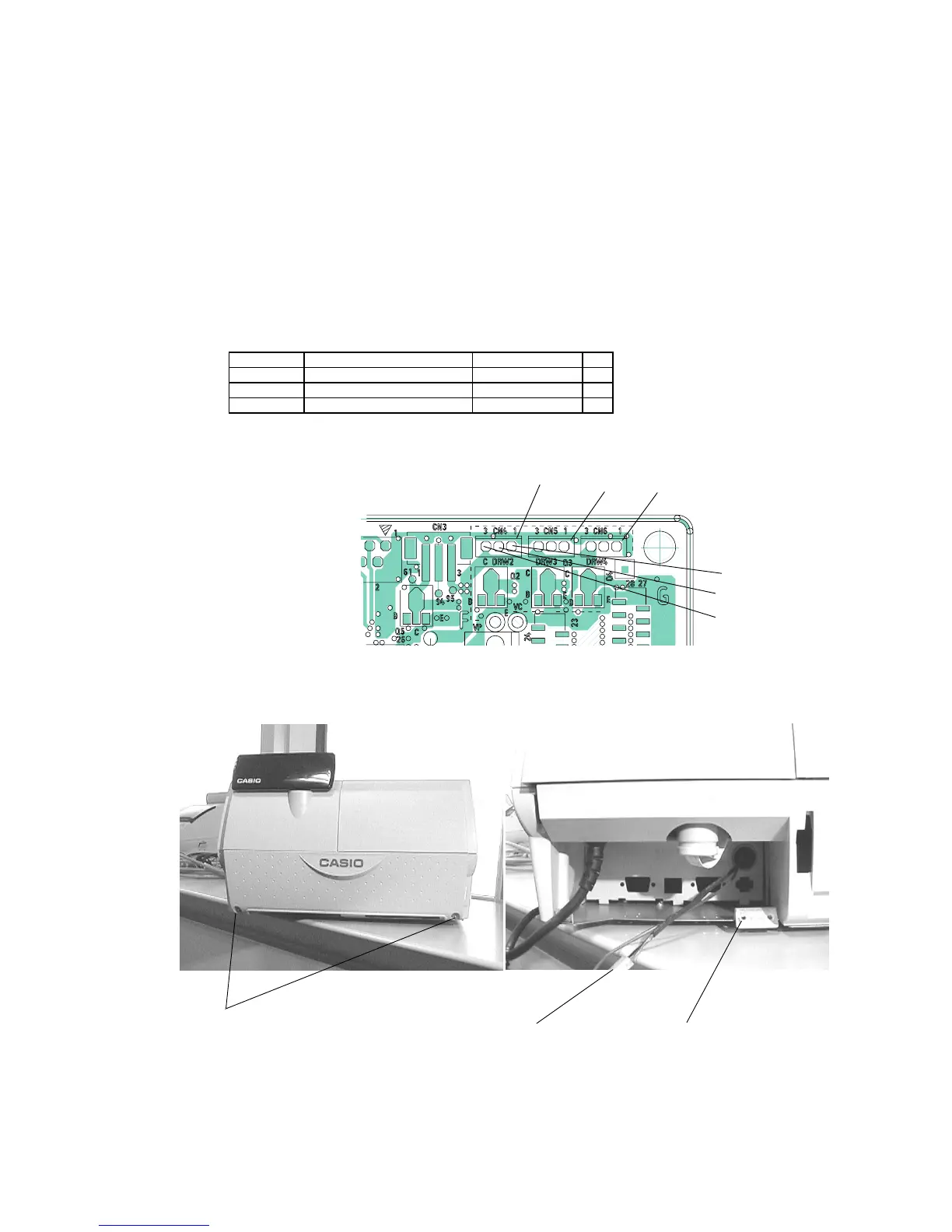

1-3. Connect the drawer connector cable to the main PCB by solder.

Drawer2

Red

Brown

Black

1-4. Open the back cover of lower cabe to release the 2 screws. Then, connect the necessary

extension cable for drawer. In this case, do no forget to fix the FG wire of the extension

cable to the frame ground plate by the screw.

Release the 2 screws and open the

back cover of lower case.

Connect the extension

drawer cable to the

drawer connector.

Fix the FG wire of the

extension drawer cable by

screw of the parts kit.

1-5. Connect 1 pin FG connector of the drawer extension cable to the drawer 1 pin connector.

Close the back cover of lower case by 2 screws.

Code No. Parts Name Specification Q'ty

10006121 Drawer connector cable E440721A*1 1

62481534 Extension cable for Drawer E440714*1 1

59000209 Screw 3X4ZMC-3. 1

Not used

— 16 —

Casio CE-6000 Service Manual
