— 5 —

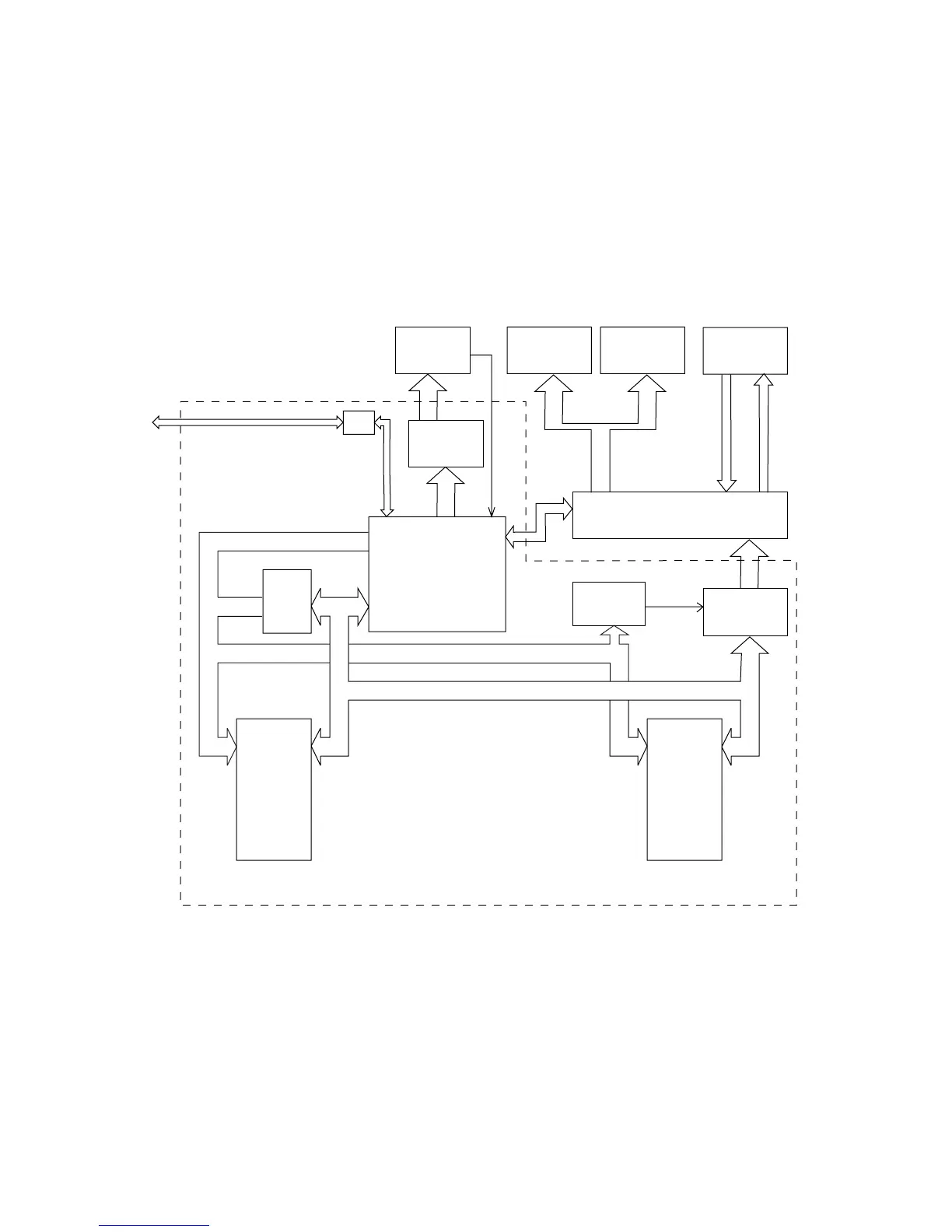

4-2. BLOCK DIAGRAM (CE-6000)
Address
Latch
Address bus A8 - A19
A0 -A7
Data bus D0 -D7
RAM1
HY628100A
LLG-70
(128 K bytes)
CPU
uPD784215GC-084-8EU
Flash ROM 1
LH28F016SCT
-L95
(2 M bytes)
Data buff
er
I/O selector
Printer driver
Printer
M-U420-061
LED driver and K
ey control
LED display
LED customer
display
K
eyboard
COM1
Driver
MAIN PCB E457-1 C
6
8
Table of Contents
Service Manual
2
Default Chapter
2
Table of Contents
2
Ce-6000
3
Specifications
3
Initialize (Mac) Operation
5
F-Init (Fmac) Operation
5
Block Diagram
6
To Open the Upper Case
8
Circuit Explanation
10
Power Supply Circuit
10
Reset and Power down Circuit
11
Flash ROM1 Address Circuit
15
Memory Map
15
Printer Drive Circuit
16
RS232C Port COM1 Circuit
17
Keyboard Selection Switch (Not Mounted for CE-6000)
17
To Mount Optional Circuit
18
Multi-Drawer Circuit
18
Paper Near End Sensor Circuit
18
Diagnostic Operation
20
To Start the Diagnostic Program
20
Check Item
20
Operation of each Test
20
Switch Status Test
20
Individual Function Test
22
To Exit the Diagnostic Mode
30
Error Code List
31
IC Data
32
Pcb Layout
41
Circuit Diagram
43
Parts List
58
Main Pcb Block
61
Button Block
62
Customer Display Block
62
Main Display Block
62
Power Supply Block
63
Lower Case Block
64
Upper Case Block
64
Others
65
Printer Block
65
Printer (M-U420-061)
66
Drawer
69
Dl-2419 Usa
69
Dl-2518 Canada
71
