General Guide
E-3
CAUTION
• Make sure that the cover is fully open whenever you are playing on the keyboard. A partially open cover can suddenly close
unexpectedly and pinch your fingers.
NOTE
• The names shown here are always indicated in bold when they appear within the text of this manual.

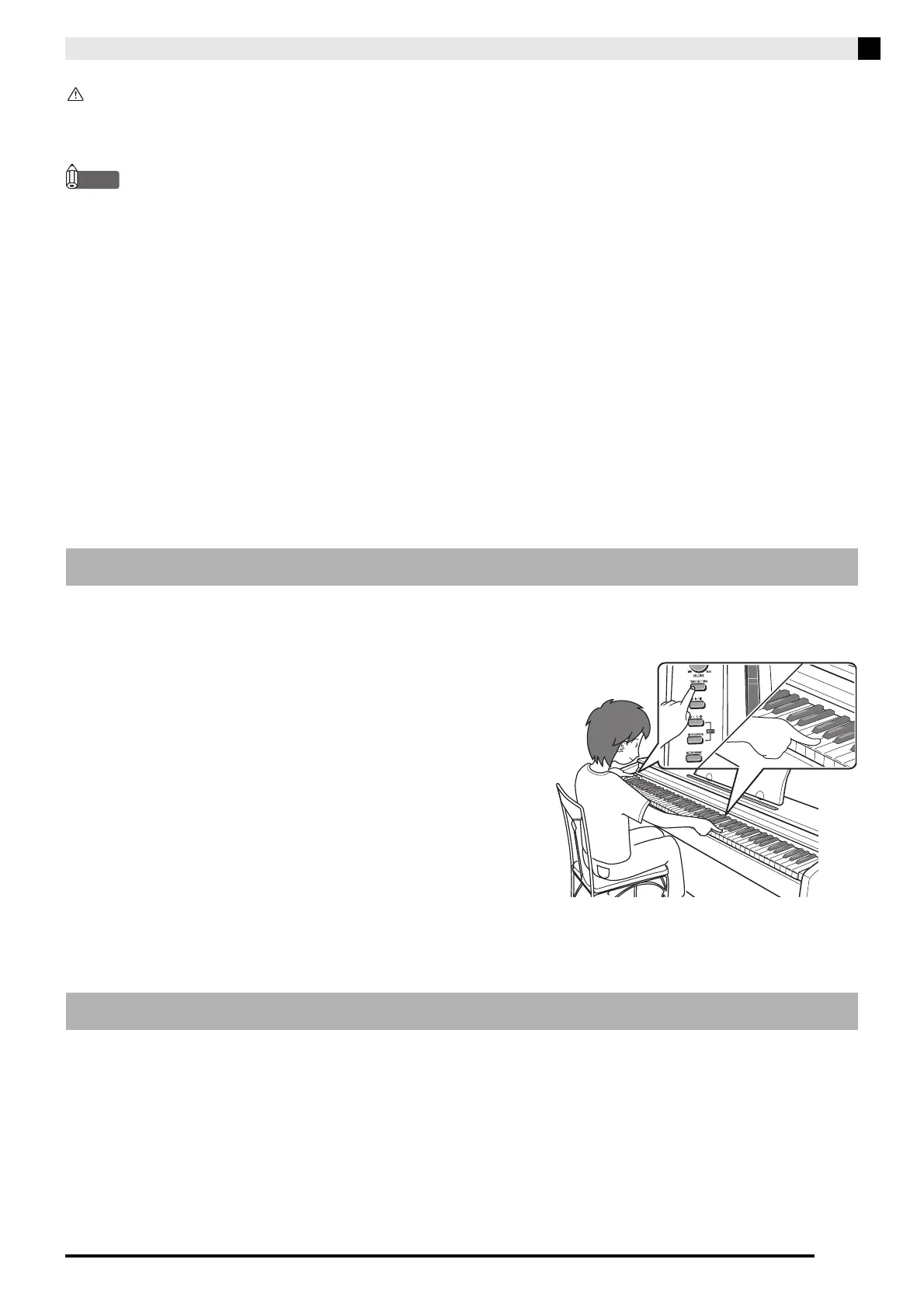

The TONE/SETTING button is used when configuring a variety of different digital piano settings. The following
are TONE/SETTING button basics.
z To change a setting, hold down the TONE/SETTING button
as you press the keyboard key that is assigned the setting
you want to select.
An operation confirmation tone will sound whenever you
press a keyboard key to configure a setting.
Example: “Selecting a Tone Using the Keyboard Keys” on
page E-7.
z For details about operations and settings, see “Configuring Settings with the Keyboard” on page E-18.
Your digital piano lets you save its current settings, and lock its buttons to protect against operation errors. For
details, see “bq Setup Memory” and “br Operation Lock” on page E-22.
1 PHONES jack
2 DC 12V terminal
3 MIDI IN terminal
4 MIDI OUT terminal
5 Pedal connector
6 VOLUME controller
7 TONE/SETTING button
8 SONG X/
button
9 LR button
bk RECORDER button
bl METRONOME button
bm GRAND PIANO (CLASSIC) button
bn GRAND PIANO (MODERN) button
bo Power lamp
bp POWER button
TONE/SETTING Button
Saving Settings and Using Operation Lock
To Next Page
