Casio CPS-7 Service Manual

— 9 —
A
B
CH1
CH2
~~
CH1: 50 mV CH2: 50 mV
A 1 ms
A 1 ms
CH1
CH2
CH1: 0.1 V CH2: 0.1 V
9
0
~~

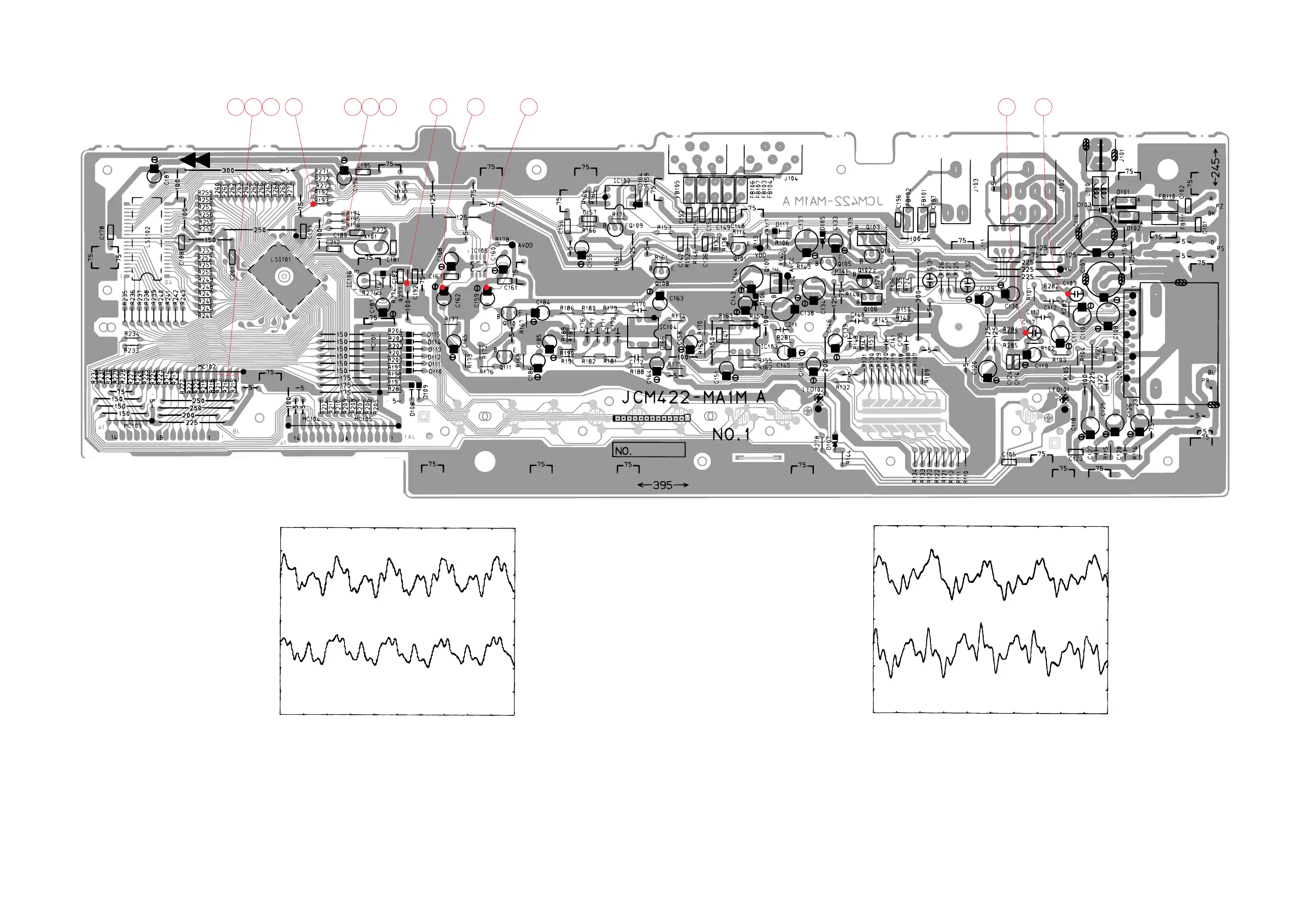

PCB VIEW AND CHECK PRINTS
Tone: Piano-1
Key: A4
Touch response: Off
Volume: Maximum
9 DAC output (R-ch)
UPD6379GR pin 5
0 DAC output (L-ch)
UPD6379GR pin 8
A Equalizer output (R-ch)
B Equalizer output (L-ch)
12119
101
6 823 4 5 7
