– 12 –

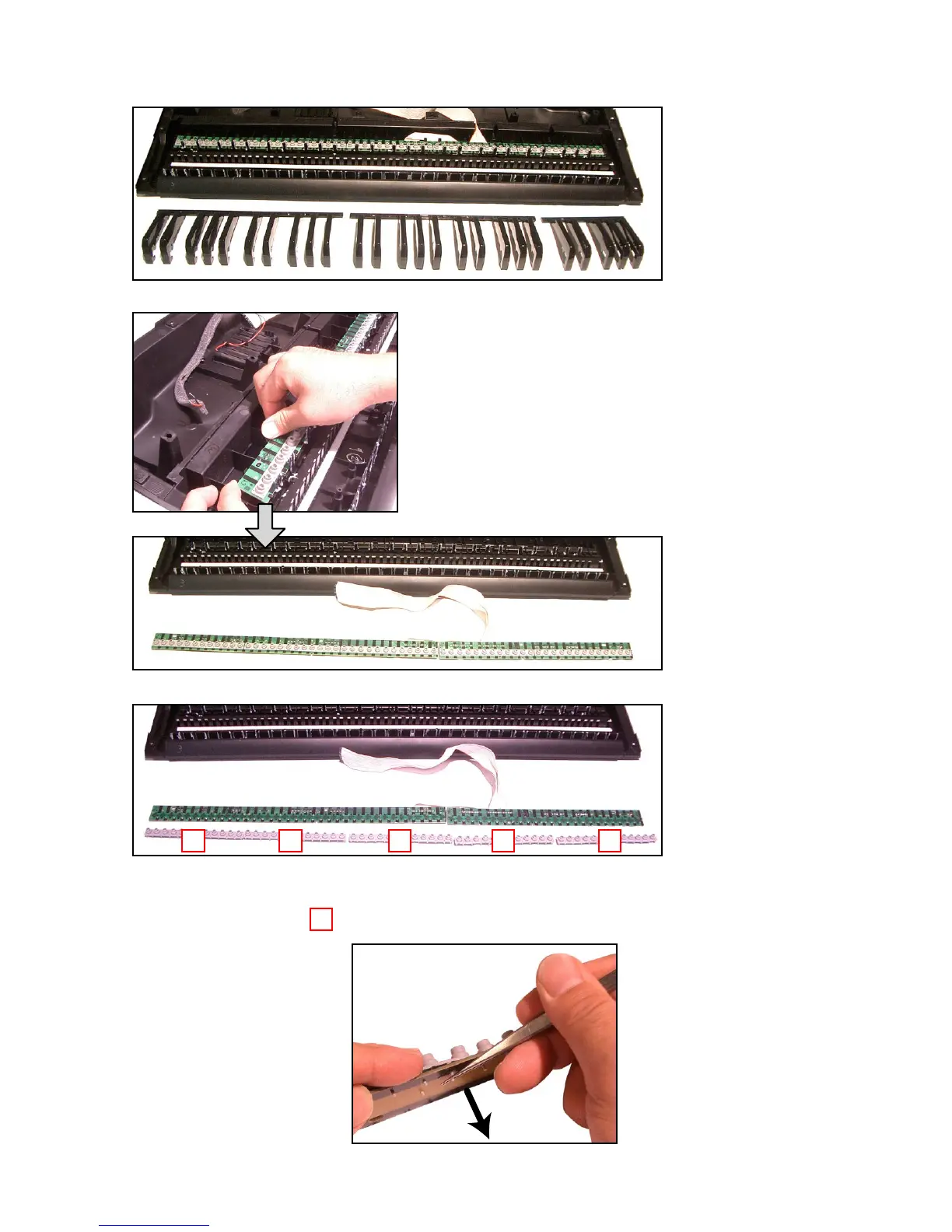

11-3. Remove the black keys.
11-4. Remove the hooks and then Key PCB. (M800-KYA1/KYA2)
11-5. Remove the rubber keys.
Caution while assembling:
There are two types of rubber keys and they are different in length.
The longest rubber key ( ) must be installed at the right end.
How to install the rubber keys.
4 25 3 1
1
To Next Page
