CTK-4200
– 37 –

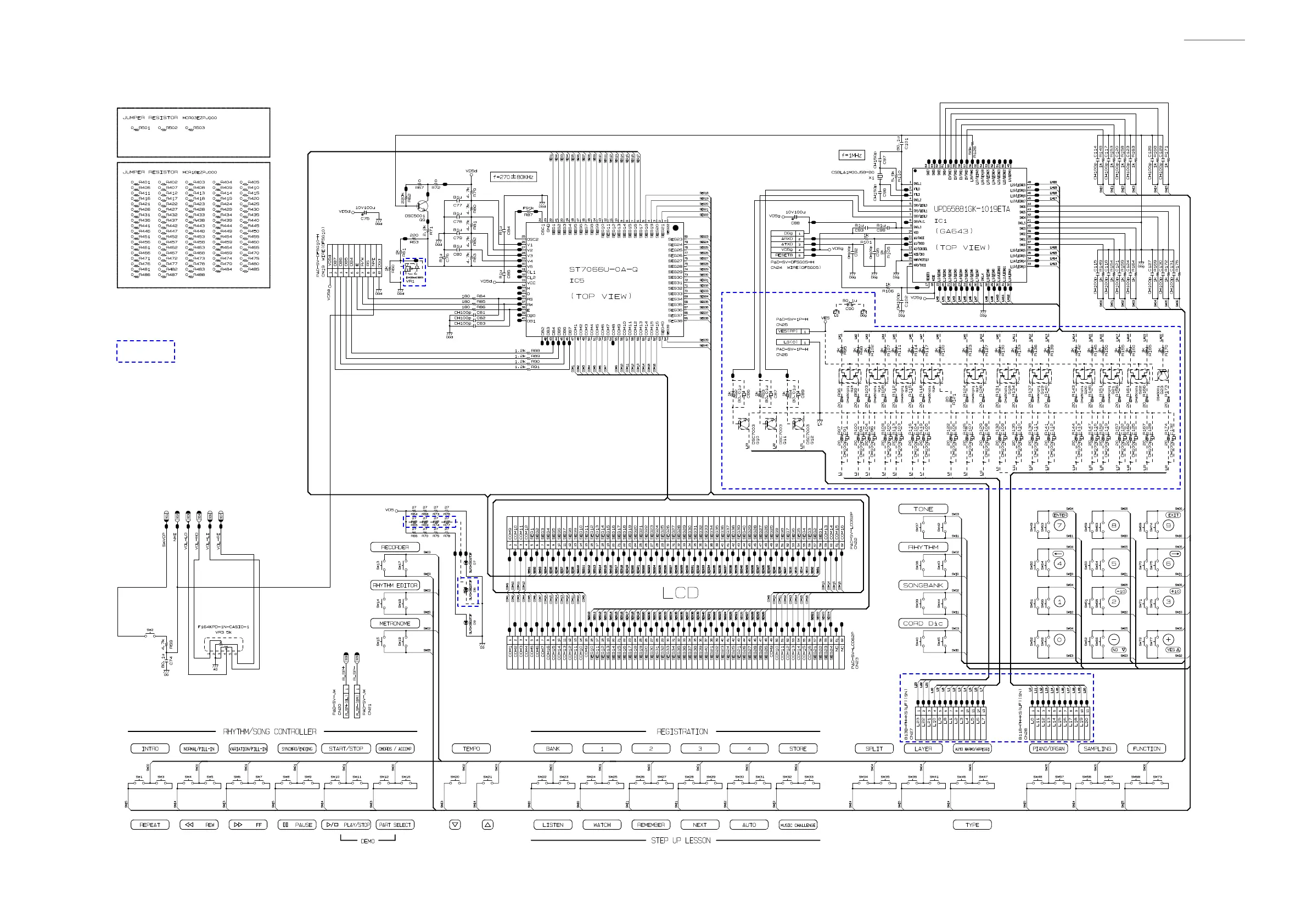

Sub PCB: M828-PSA1 (2/2)
(to MDA1/CN7)
(to RIGHT
SPEAKER)
MAIN VOL.
(VR3)
POWER
SWITCH
(SW2)
Not used
(to MDA1/CN2)
