E-13
*

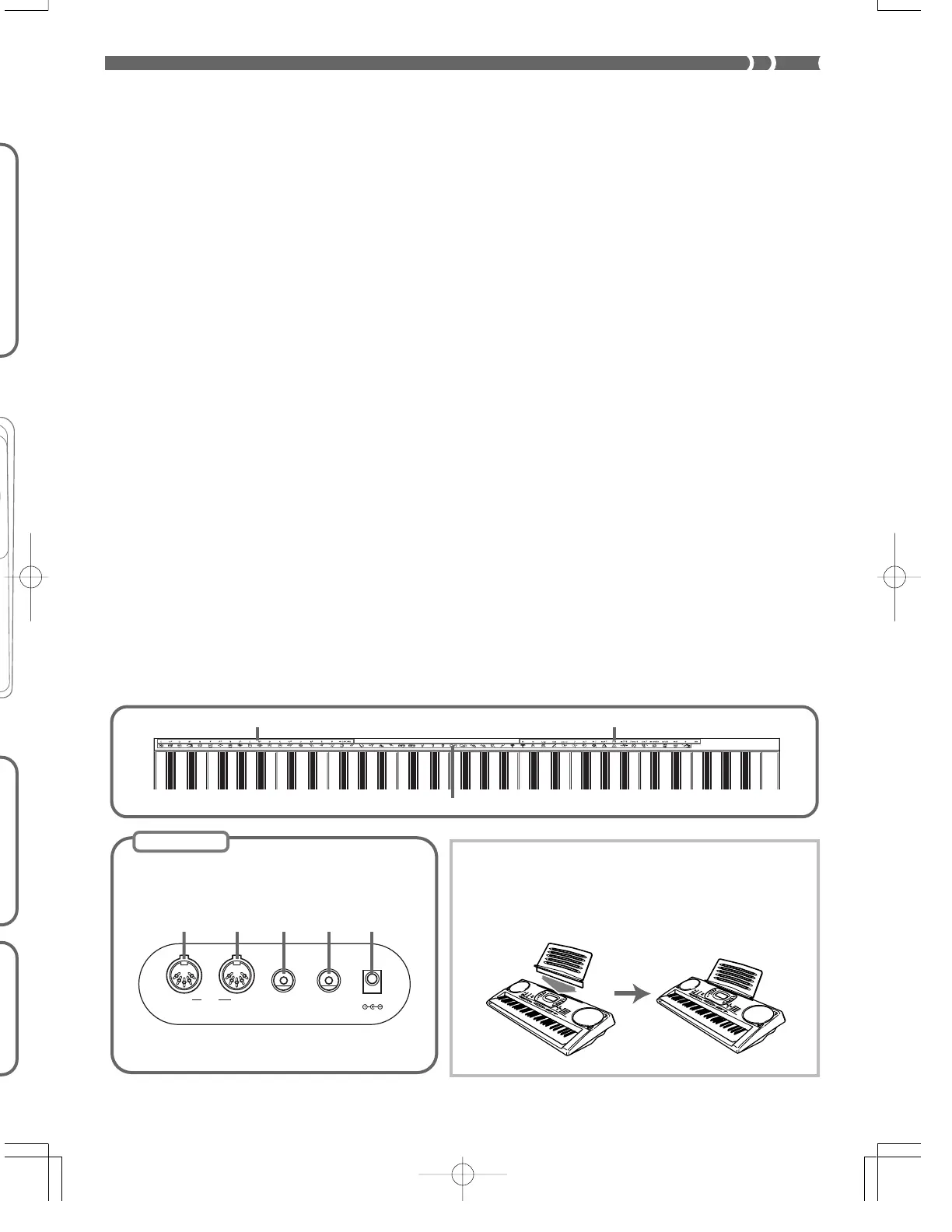

Attaching of the Score Stand
Firmly press the music stand provided with the keyboard
all the way into the groove on the top of the keyboard.
OUT IN
SUSTAIN/
ASSIGNABLE JACK
MIDI
PHONES/
OUTPUT
DC 9V
H
I
J K L M
ab
c
703A-E-015A
Rear Panel
• Key, button, and other names are indicated in the text of this manual using bold type.
1 Speaker
2 POWER button
3 Power indicator
4 MODE switch
5 VOLUME slider
6 Rhythm list
7 Equalizer list
8 a) SONG MEMORY button
b) ONE TOUCH PRESET button
9 a) EQUALIZER button
b) REVERB button
c) CHORUS button
d) DSP button
e) MIXER button
f) ACCOMP VOLUME button
0 Display
A a) DEMO button
b) SYNTH button
c) ADVANCED TONE button
d) TONE button
e) RHYTHM button
B a) [왗] / [왘] CURSOR buttons
b) [왖] EXIT button
c) [왔] ENTER button
C Tone list
D a) INTRO/ENDING 1/2 buttons
b) VARIATION/FILL-IN 1/2 buttons
c) SYNCHRO/FILL-IN NEXT
button
d) START/STOP button
e) TEMPO buttons
E a) BANK button
b) REGISTRATION buttons
c) STORE button
d) SONG MEMORY TRACK
buttons
F a) AUTO HARMONIZE button
b) SPLIT button
c) LAYER button
d) TOUCH/TRANSPOSE/SET-
TING button
G a) Number buttons
• For input of numbers to
change displayed settings.
b) [+]/[–] buttons (YES/NO)
• Negative values can be
changed only by using [+] and
[–] to increment and decre-
ment the displayed value.
H a) CHORD root names
b) Chord types name
c) Percussion instrument list
I MIDI OUT terminal
J MIDI IN terminal
K SUSTAIN/ASSIGNABLE JACK
terminal
L PHONES/OUTPUT terminal
M DC 9V jack
To Next Page
