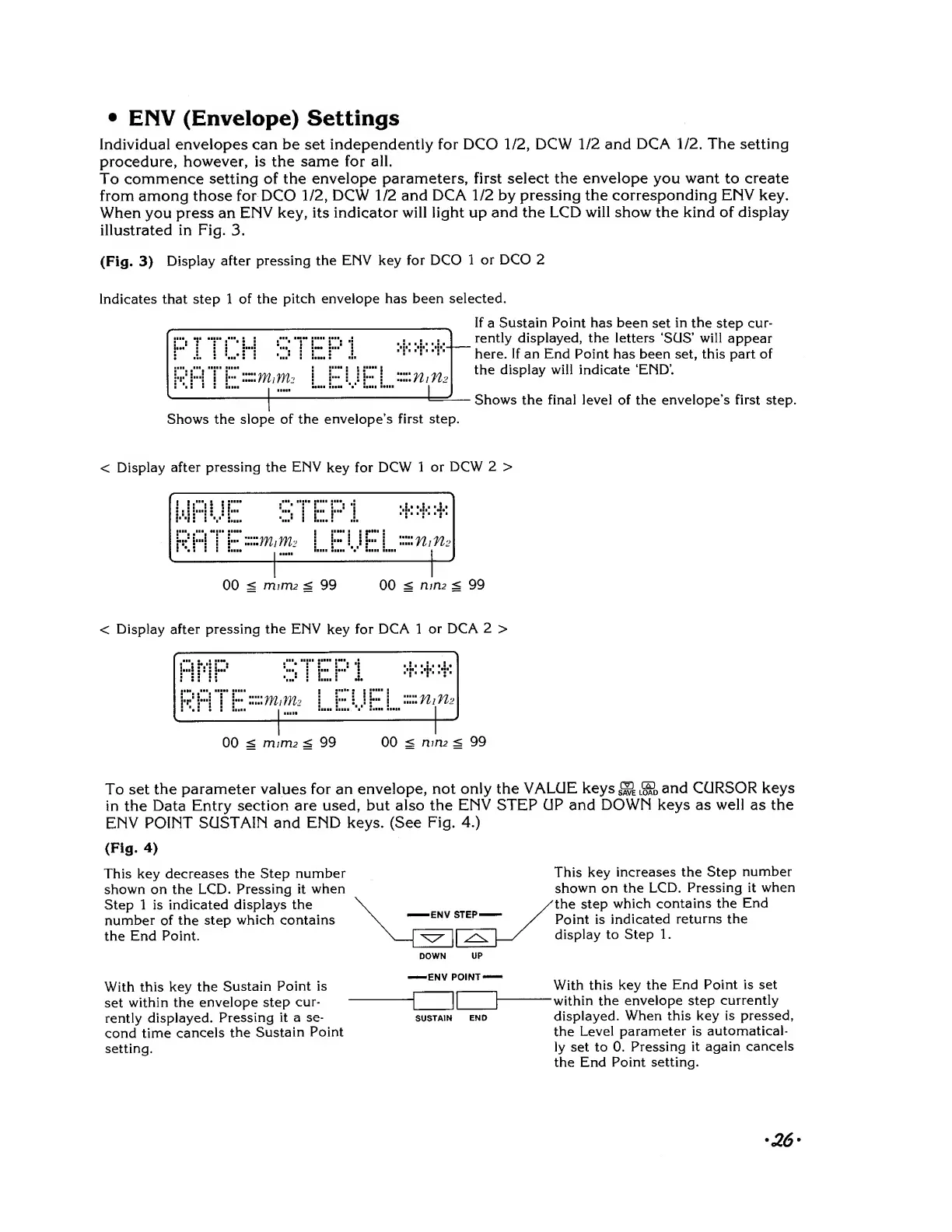

ENV (Envelope)
Settings
Individual envelopes can be
set
independently for DCO
1/2,
DCW 1/2 and
DCA
1/2.
The setting
procedure,
however, is the same for
all.
To commence setting
of the envelope
parameters, first select the
envelope
you
want to create
from among those for DCO
1/2,
DCW
1/2
and DCA
1/2 by pressing the corresponding ENV key.
When
you
press an
ENV
key,
its
indicator will light up
and the
LCD will show
the
kind of display
illustrated
in Fig.
3.
(Fig.
3)
Display after
pressing the
ENV key
for DCO 1
or DCO 2
Indicates that step 1
of the
pitch envelope
has been selected.
If
a
Sustain Point has been
set
in the
step
cur-
rently displayed, the letters 'SGS' will
appear
here. If an End Point has been set, this part of
the display will indicate 'END'.
Shows the final level of the envelope's first step.
Shows the slope
of
the
envelope's
first step.
<
Display
after
pressing the ENV
key
for
DCW
1 or
DCW
2
>
i-'-irivii O 1
1!
•Pi
......
s
RfiTE
=W
'
W
-
1.
00
^
mirri2
g
99 00
^
nm
2
^
99
<
Display
after
pressing the ENV
key
for DCA 1
or DCA
2
>
AMP
STEPi
**
Rhi
1 !:::!
:::::
m
Mi
!....
E
'
J
E !....
:::::
Ui
M
00
^
mm\2
^
99 00 s
nmz
^
99
PITCH
STEPI
:•!•::!•::•!:-
LEUEL=»'*»
To set
the parameter values
for
an
envelope, not
only the
VALUE
keys
^
Lg?D
and CURSOR keys
in the Data
Entry
section are used, but
also the
ENV STEP UP
and DOWN keys as well as the
ENV
POINT SUSTAIN
and END keys. (See
Fig.
4.)
(Fig.
4)
This key decreases
the Step
number
shown on the LCD.
Pressing it
when
Step 1 is
indicated displays
the
number of
the step
which contains
the End Point.
With
this key the
Sustain
Point is
set
within the
envelope step
cur-
rently displayed.
Pressing
it a se-
cond
time
cancels
the
Sustain
Point
setting.
-ENV
POINT
-
SUSTAIN
END
This
key
increases the Step
number
shown on the LCD.
Pressing it
when
the
step
which contains the
End
Point is
indicated
returns the
display
to Step
1.
With
this key the End
Point is set
-within
the envelope step
currently
displayed.
When this
key is pressed,
the Level parameter
is
automatical-
ly
set to 0.
Pressing it again
cancels
the End
Point setting.
To Next Page
