2.2. USB cradle HA-N60IO
The basic specification of the USB cradle (HA-N60IO/HA-N60IO-CN) is as follows:

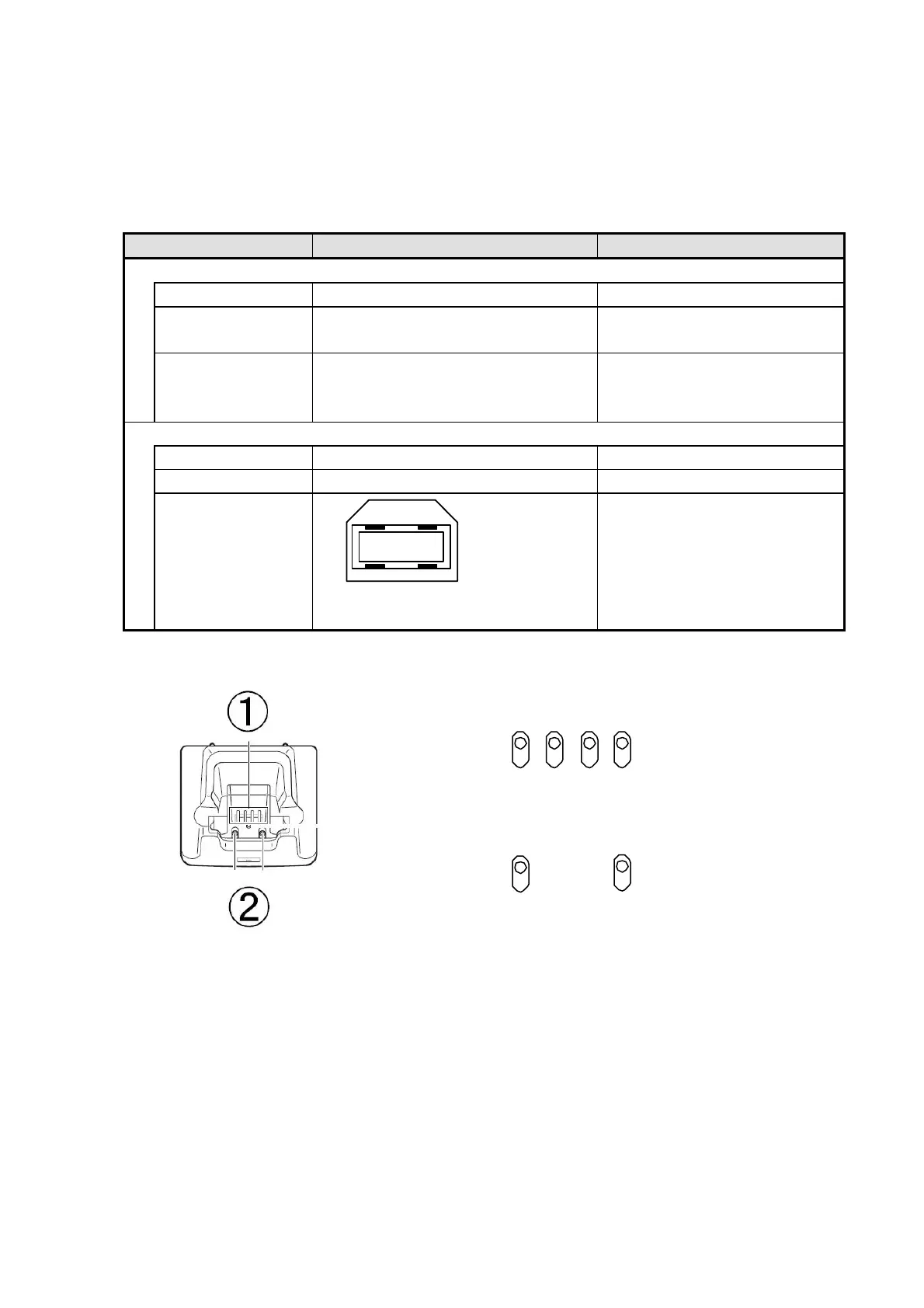

Table 2-4 Basic Specifications
Item Specification Remarks
Interface with the terminal
Standard USB 2.0 Full speed
Communication
speed
12Mbps (maximum)
Connector Contact terminal Power supply and communications
to the unit
See terminal layout*1
USB client
Standard USB 2.0 Full speed
Transfer speed 12Mbps (maximum) Low speed is not supported
Connector
1
2
34
USB connector B-type receptacle
1: VBus
2: -Data (D-)
3: +Data(D+)
4: GND
*1 See terminal layout
[1] Terminal layout (from left)
1 2 3 4
[2] Terminal layout (from left)
5 6
Figure 2-3 Terminal Layout
