22
*1 See terminal layout

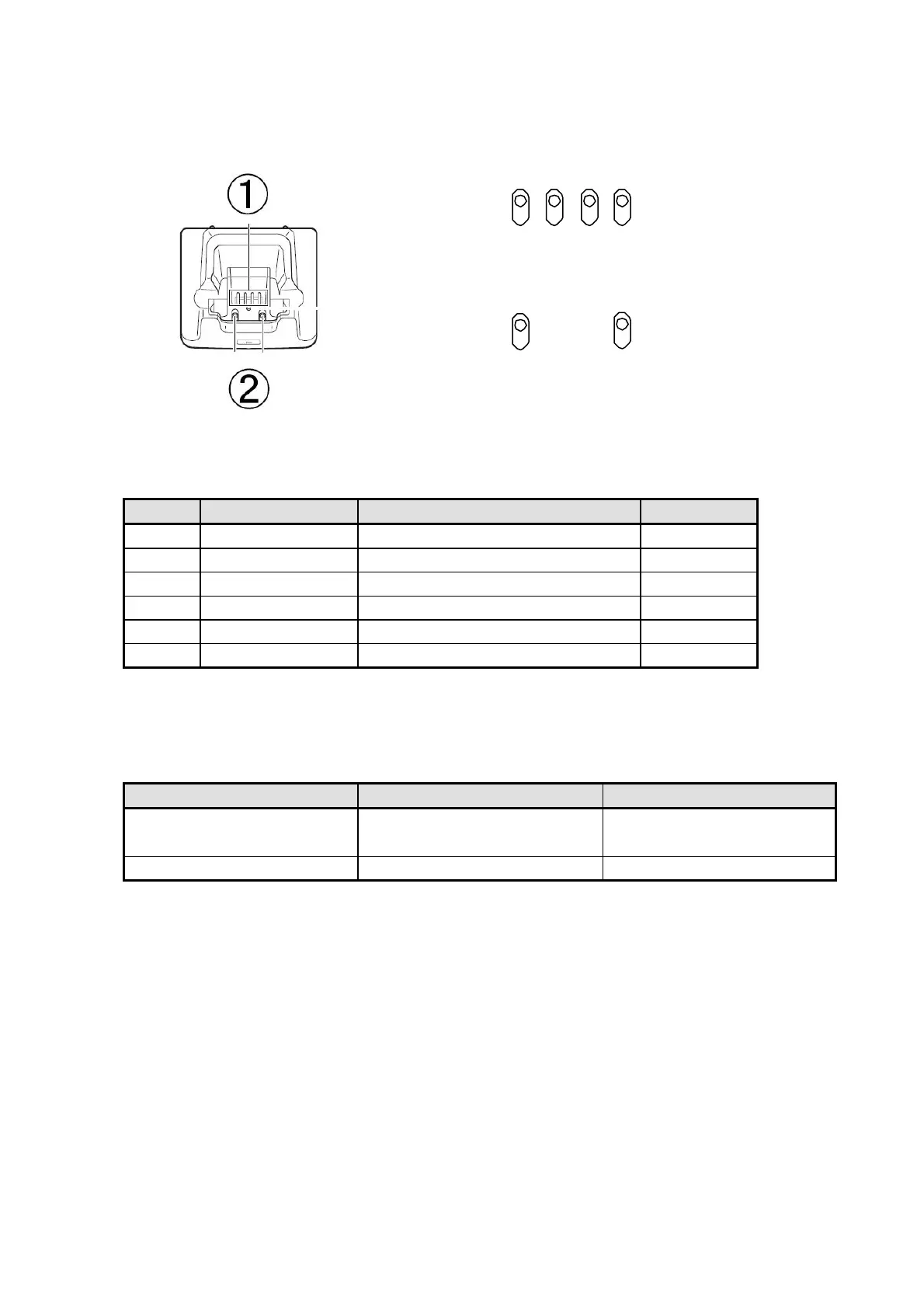

[1] Terminal layout (from left)
1 2 3 4
[2] Terminal layout (from left)
5 6
Figure 2-4 Terminal Layout
Table 2-8 Terminal Table
Terminal Name Function Direction
1 D+ USB D+ IN/OUT
2 D- USB D- IN/OUT
3 USB_ID USB host/client switch OUT
4 V BUS USB power supply IN/OUT
5 V CRADLE Unit power supply -
6 GND GND -
Dimensions and Weight
Table 2-9 Dimensions and Weight
Product Specification Remarks
Size
94.0×83.9×106.6 Including rubber feet
(width x depth x height (mm))
Weight Approx. 280g Including rubber feet
