– 62 –
DT-X200/DT-X8

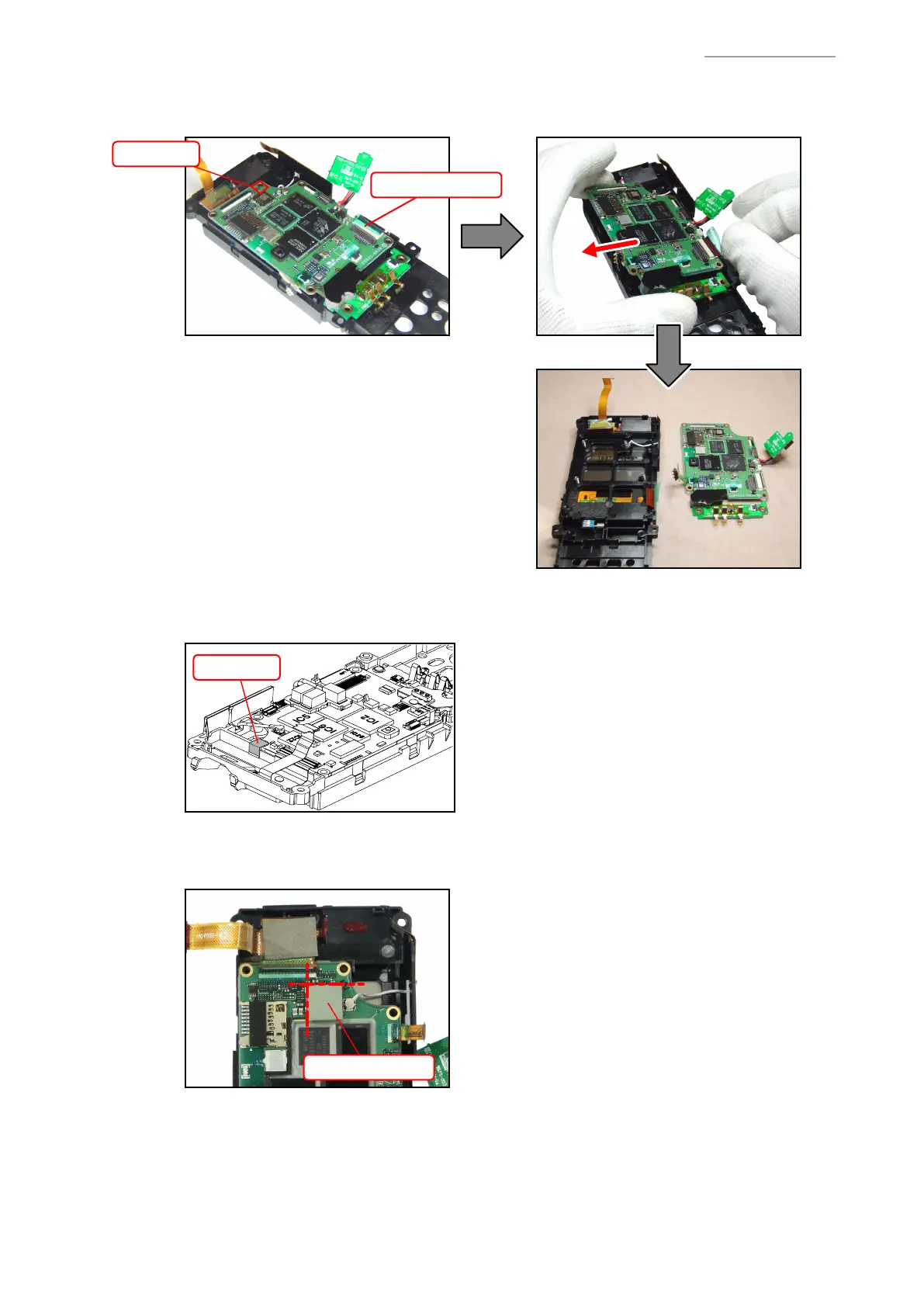

4. Peel off the tape, unlock the connector lock, and remove the FPC.
5. Peel off the tape, and remove the MAIN-PCB.
FPC
Tape
Note on reassembling:
After installing the MAIN-PCB, fi x it with tape.
HEAT-SHEET-B (Full Range Imager model)
When the MAIN-PCB is replaced with a new one, attach the HEAT-SHEET-B.
Tape
HEAT-SHEETB
