Casio DT-X200 - Exploded View; Final-Assy; Labels

— 68 —
DT-X200/DT-X8

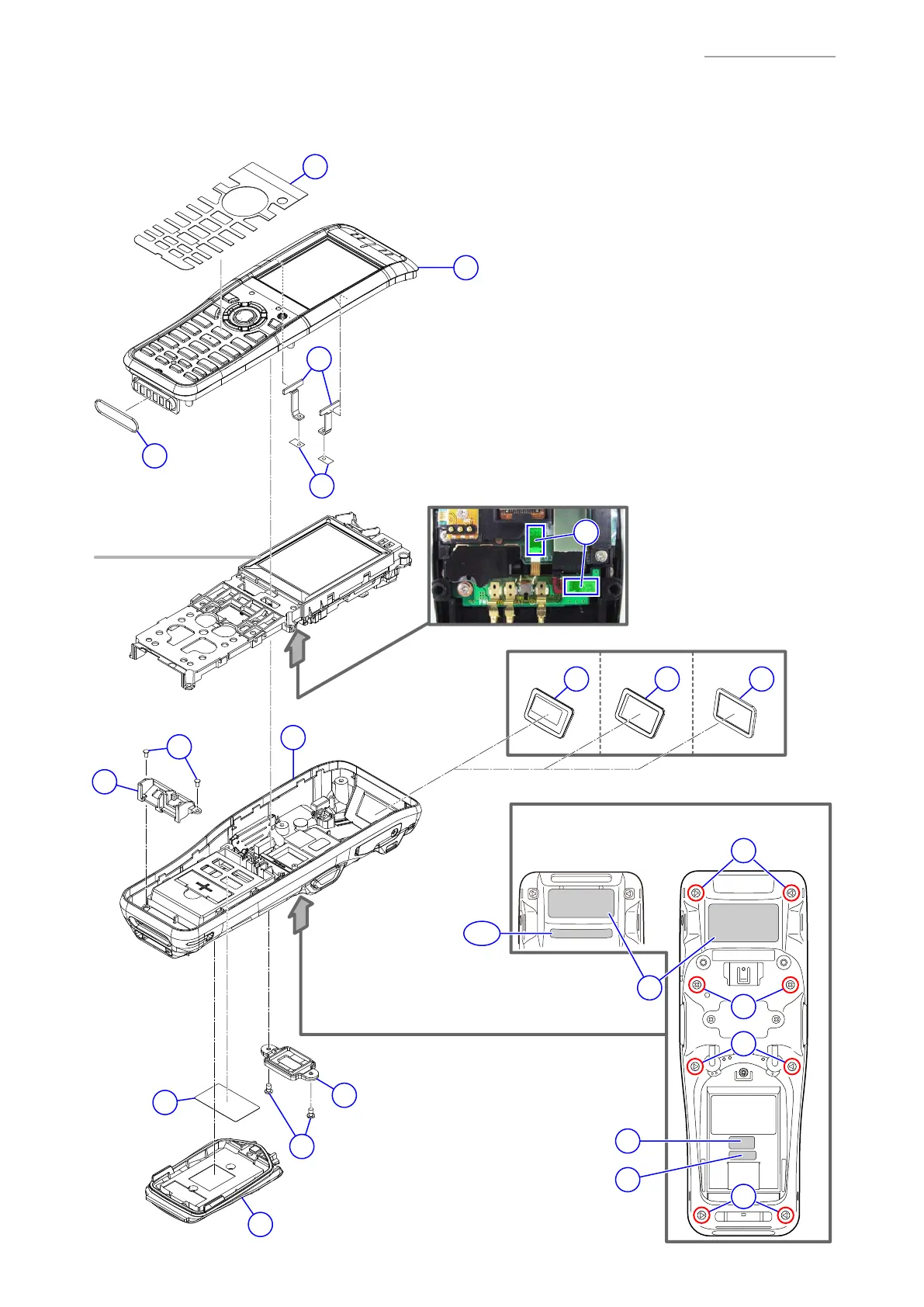

7-1. EXPLODED VIEW
7-1-1. FINAL-ASSY / LABELS
Full Range Laser/2D
9
S2
S1
4
1
2
3
5
7
6 6 6
8
89
LASER
2D FRI
10 UPPER-CASE-UNIT
11 LOWER-CASE-UNIT
LABEL/CAUTION 14-1
INNER-CASE-UNIT
LABEL/WINCE6.0
LABEL/REVISION
13
12
S4
S4
S4
S3
LABEL/RATING 14
