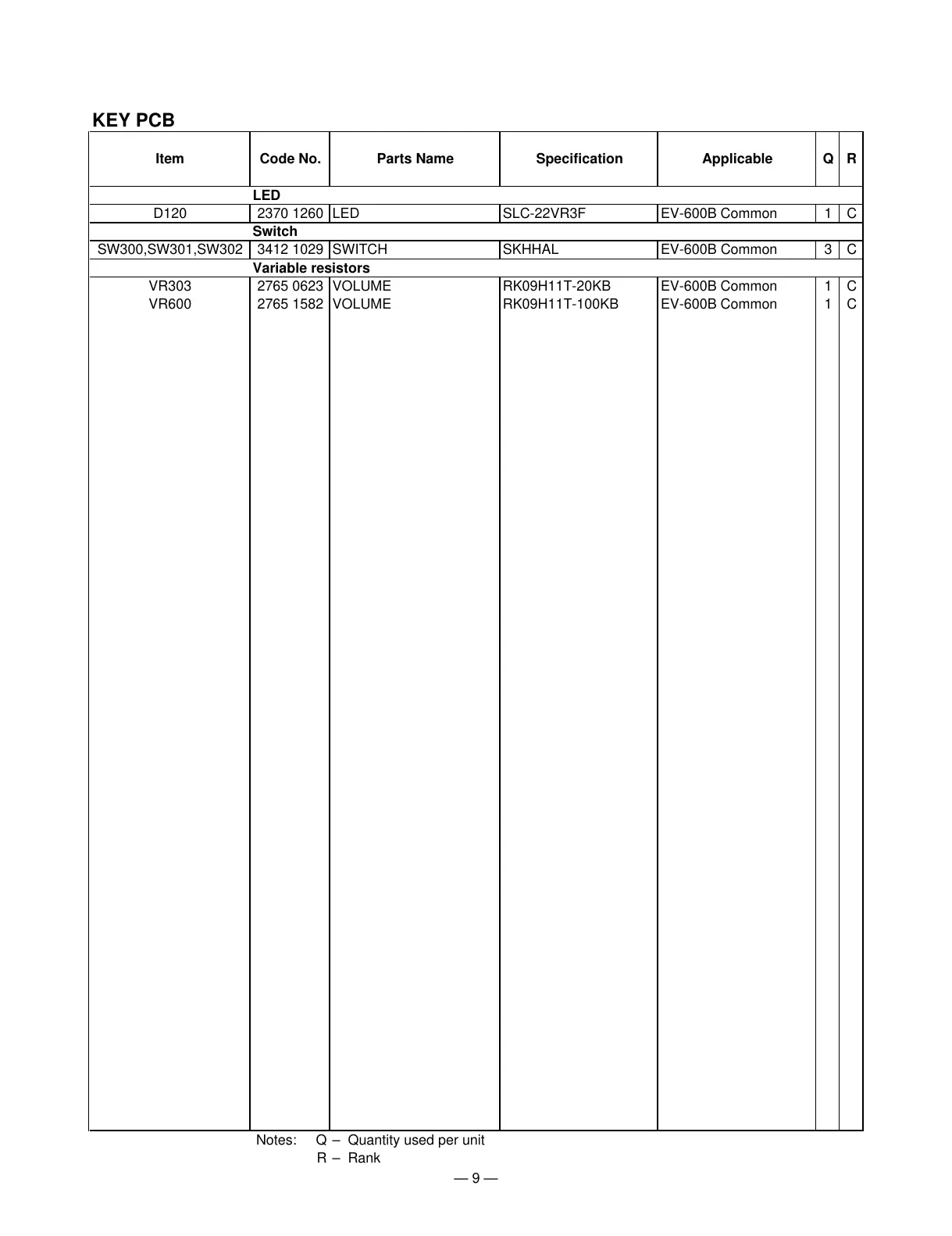

KEY PCB
Item Code No. Parts Name Specification Applicable Q R
LED
D120 2370 1260 LED SLC-22VR3F
EV-600B Common
1C
Switch
SW300,SW301,SW302 3412 1029 SWITCH SKHHAL
EV-600B Common
3C
Variable resistors
VR303 2765 0623 VOLUME RK09H11T-20KB
EV-600B Common
1C
VR600 2765 1582 VOLUME RK09H11T-100KB
EV-600B Common
1C
Notes: Q – Quantity used per unit
R – Rank
— 9 —
