— 13 —

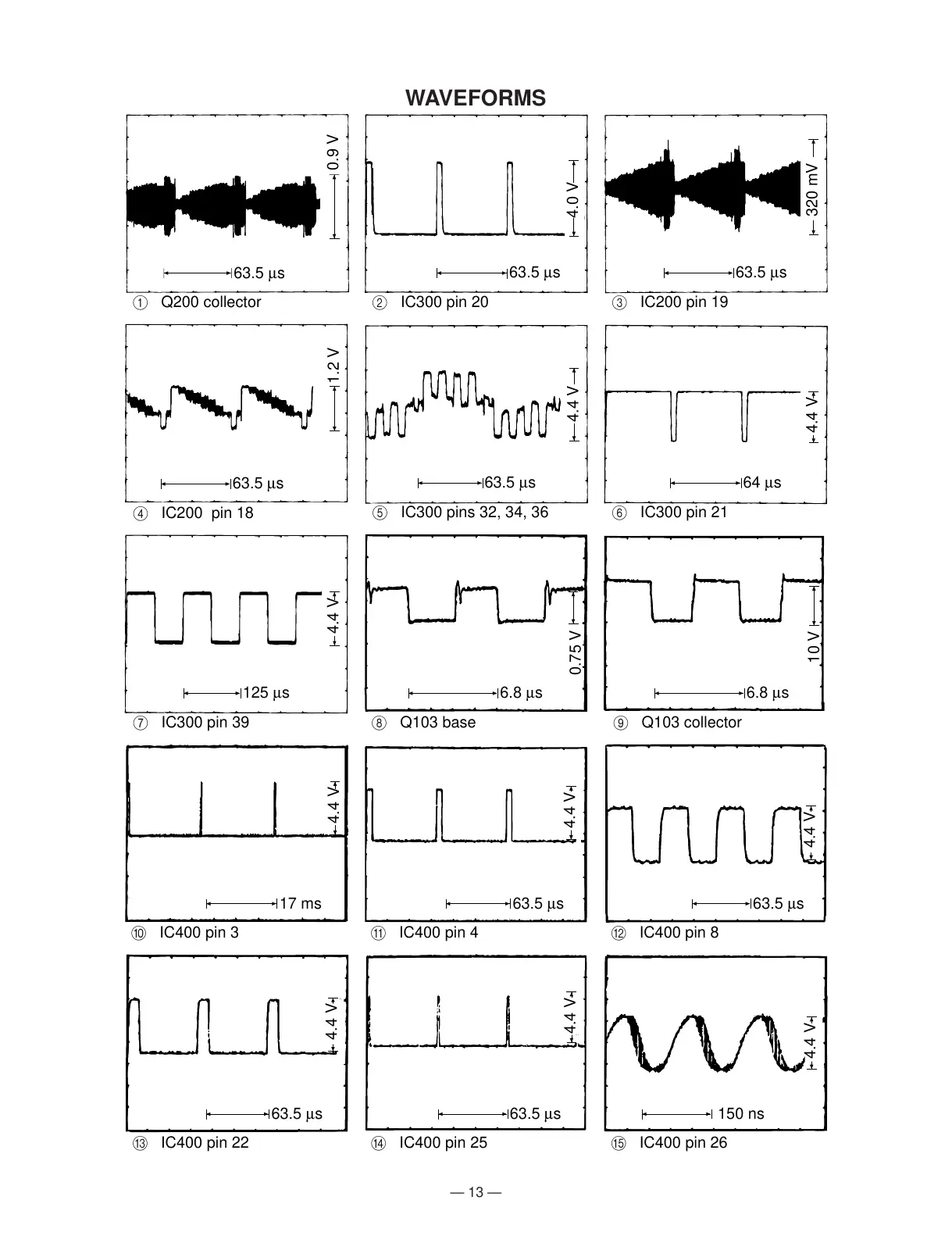

WAVEFORMS
63.5 µs
0.9 V
1 Q200 collector
63.5 µs
4.0 V
2 IC300 pin 20
63.5 µs
320 mV
3 IC200 pin 19
63.5 µs
1.2 V
4 IC200 pin 18
63.5 µs
4.4 V
5 IC300 pins 32, 34, 36
64 µs
4.4 V
6 IC300 pin 21
125 µs
4.4 V
4.4 V
7 IC300 pin 39
6.8 µs
0.75 V
8 Q103 base
6.8 µs
10 V
9 Q103 collector
17 ms
0 IC400 pin 3
4.4 V
63.5 µs
A IC400 pin 4
4.4 V
63.5 µs
B IC400 pin 8
4.4 V
63.5 µs
C IC400 pin 22
4.4 V
63.5 µs
D IC400 pin 25
4.4 V
150 ns
E IC400 pin 26
