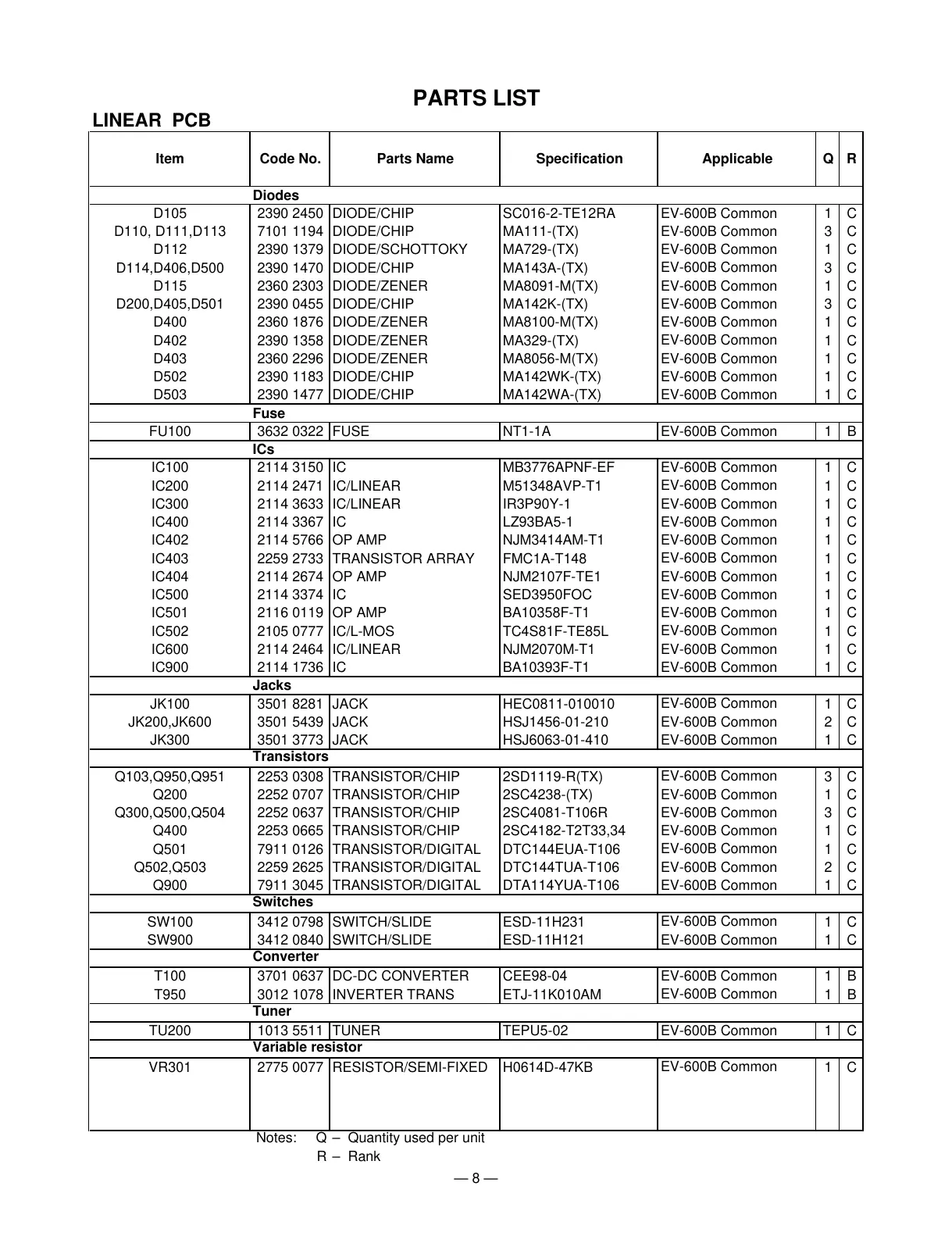

PARTS LIST
LINEAR PCB
Item Code No. Parts Name Specification Applicable Q R
Diodes
D105 2390 2450 DIODE/CHIP SC016-2-TE12RA
EV-600B Common
1C
D110, D111,D113 7101 1194 DIODE/CHIP MA111-(TX)
EV-600B Common
3C
D112 2390 1379 DIODE/SCHOTTOKY MA729-(TX)
EV-600B Common
1C
D114,D406,D500 2390 1470 DIODE/CHIP MA143A-(TX)
EV-600B Common
3C
D115 2360 2303 DIODE/ZENER MA8091-M(TX)
EV-600B Common
1C
D200,D405,D501 2390 0455 DIODE/CHIP MA142K-(TX)
EV-600B Common
3C
D400 2360 1876 DIODE/ZENER MA8100-M(TX)
EV-600B Common
1C
D402 2390 1358 DIODE/ZENER MA329-(TX)
EV-600B Common
1C
D403 2360 2296 DIODE/ZENER MA8056-M(TX)
EV-600B Common
1C
D502 2390 1183 DIODE/CHIP MA142WK-(TX)
EV-600B Common
1C
D503 2390 1477 DIODE/CHIP MA142WA-(TX)
EV-600B Common
1C
Fuse
FU100 3632 0322 FUSE NT1-1A
EV-600B Common
1B
ICs
IC100 2114 3150 IC MB3776APNF-EF
EV-600B Common
1C
IC200 2114 2471 IC/LINEAR M51348AVP-T1
EV-600B Common
1C
IC300 2114 3633 IC/LINEAR IR3P90Y-1
EV-600B Common
1C
IC400 2114 3367 IC LZ93BA5-1
EV-600B Common
1C
IC402 2114 5766 OP AMP NJM3414AM-T1
EV-600B Common
1C
IC403 2259 2733 TRANSISTOR ARRAY FMC1A-T148
EV-600B Common
1C
IC404 2114 2674 OP AMP NJM2107F-TE1
EV-600B Common
1C
IC500 2114 3374 IC SED3950FOC
EV-600B Common
1C
IC501 2116 0119 OP AMP BA10358F-T1
EV-600B Common
1C
IC502 2105 0777 IC/L-MOS TC4S81F-TE85L
EV-600B Common
1C
IC600 2114 2464 IC/LINEAR NJM2070M-T1
EV-600B Common
1C
IC900 2114 1736 IC BA10393F-T1
EV-600B Common
1C
Jacks
JK100 3501 8281 JACK HEC0811-010010
EV-600B Common
1C
JK200,JK600 3501 5439 JACK HSJ1456-01-210
EV-600B Common
2C
JK300 3501 3773 JACK HSJ6063-01-410
EV-600B Common
1C
Transistors
Q103,Q950,Q951 2253 0308 TRANSISTOR/CHIP 2SD1119-R(TX)
EV-600B Common
3C
Q200 2252 0707 TRANSISTOR/CHIP 2SC4238-(TX)
EV-600B Common
1C
Q300,Q500,Q504 2252 0637 TRANSISTOR/CHIP 2SC4081-T106R
EV-600B Common
3C
Q400 2253 0665 TRANSISTOR/CHIP 2SC4182-T2T33,34
EV-600B Common
1C
Q501 7911 0126 TRANSISTOR/DIGITAL DTC144EUA-T106
EV-600B Common
1C
Q502,Q503 2259 2625 TRANSISTOR/DIGITAL DTC144TUA-T106
EV-600B Common
2C
Q900 7911 3045 TRANSISTOR/DIGITAL DTA114YUA-T106
EV-600B Common
1C
Switches
SW100 3412 0798 SWITCH/SLIDE ESD-11H231
EV-600B Common
1C
SW900 3412 0840 SWITCH/SLIDE ESD-11H121
EV-600B Common
1C
Converter
T100 3701 0637 DC-DC CONVERTER CEE98-04
EV-600B Common
1B
T950 3012 1078 INVERTER TRANS ETJ-11K010AM
EV-600B Common
1B
Tuner
TU200 1013 5511 TUNER TEPU5-02
EV-600B Common
1C
Variable resistor
VR301 2775 0077 RESISTOR/SEMI-FIXED H0614D-47KB
EV-600B Common
1C
Notes: Q – Quantity used per unit
R – Rank
— 8 —
