DISASSEMBLY
NOTE : Here EX-M1 is used.

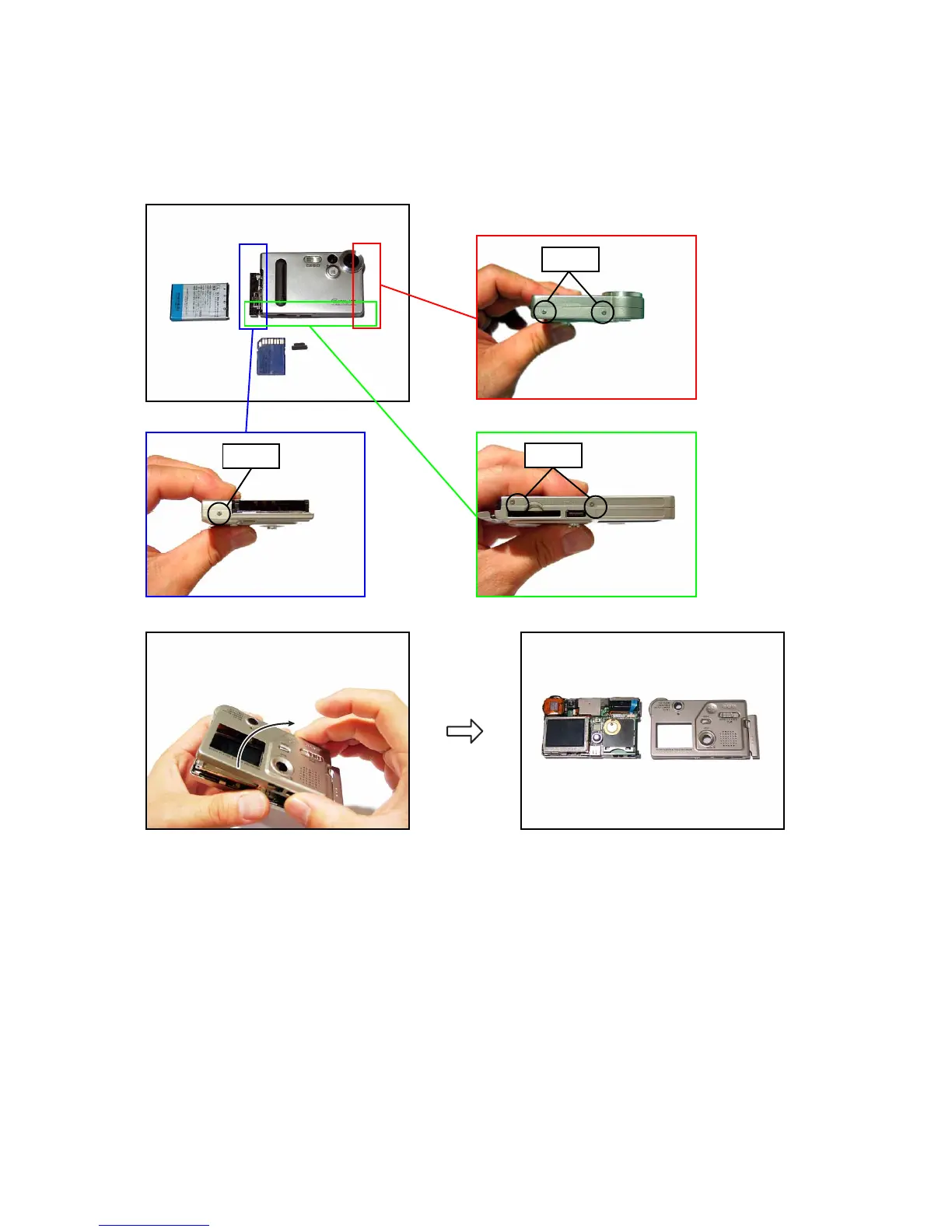

1. Remove the CARD, BATTERY and the JACK COVER.
2. Remove five screws.
Screw
Screws
Screws
3. Remove the REAR CASE ASSY.
