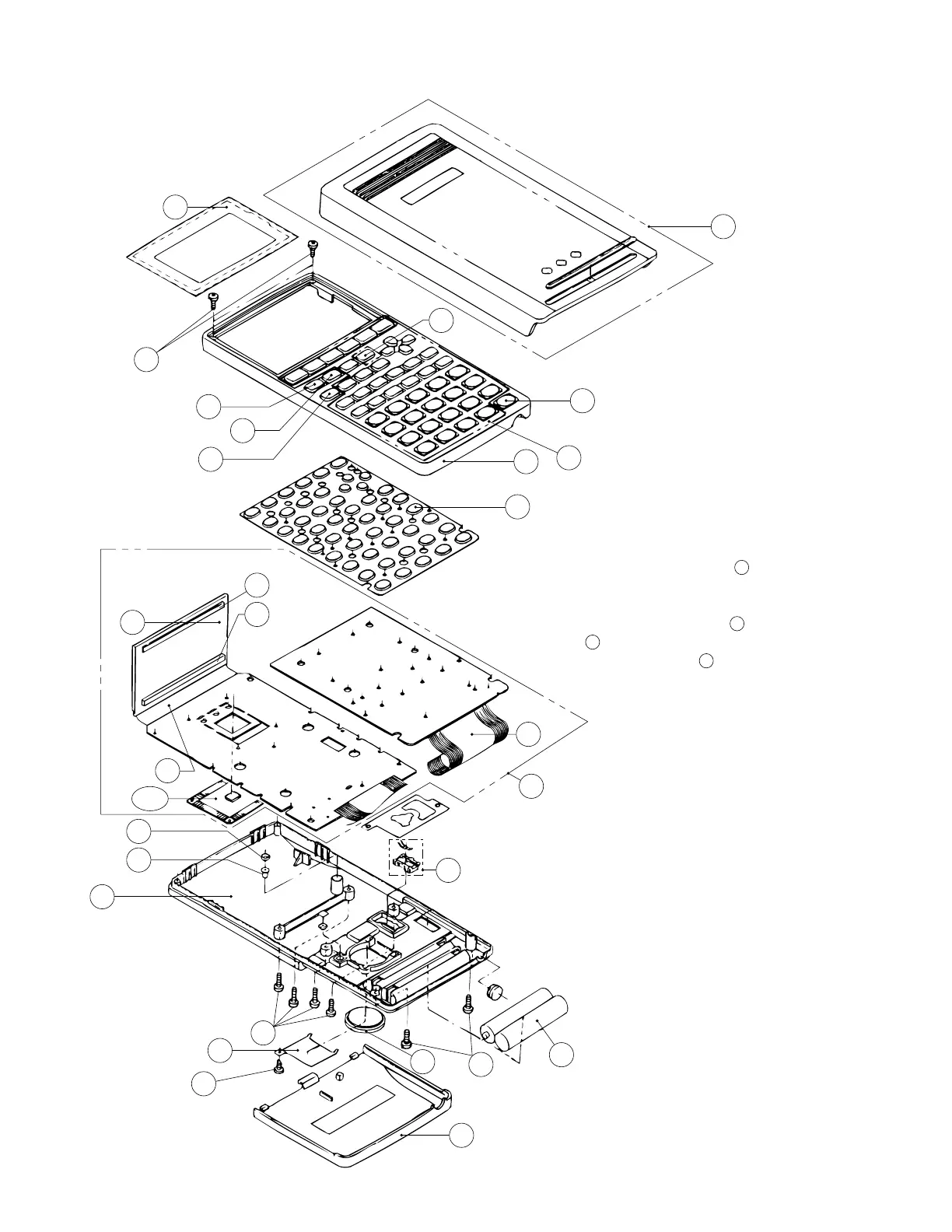

Casio fx-7400G - Exploded View

— 12 —
1
2
6
5
S2
7
8
10
9
11
12
3
13
14
17
18
15
20
21
22
23
16
B1
B2
S2
LSI1
19
DISASSEMBLY
1. Peel the display plate C from the upper case,
then loosen the two screws
S1 .
2. Remove the battery cover J, then loosen the
screw D, then remove the battery holder K.
3. Remove the lithium battery
B1 and the two bat-
teries
B2 .
4. Loosen the six screws
S2 , then open the lower
case 7.
S1
4
7. EXPLODED VIEW
