– 25 –
IT-G500
Y
Laser Barcode read
No. Operation Test Details
56 mm
15°
25°
1

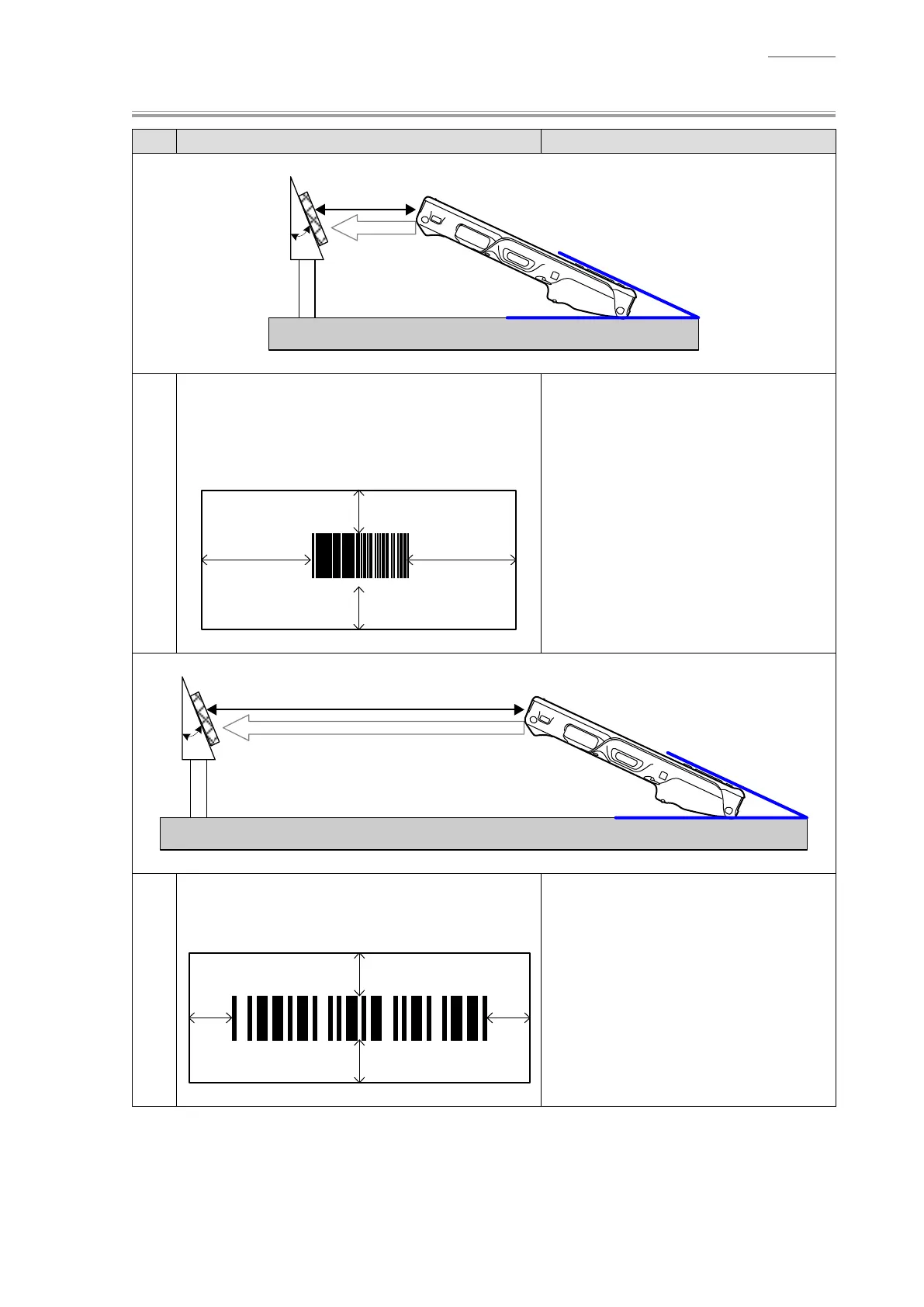

Select [3].Laser Barcode read. (MENU-4)
Read the barcode for the short distance test from a
distance of 56 mm by pressing the “Center Trigger”
key.
10 mm
10 mm
25 mm25 mm
The test result is automatically judged.
If the test result is OK, proceed to the
next step.
If the barcode cannot be read, press the
“CLR” key to return to the menu screen.
550 mm
15°
25°
2
Read the barcode for the long distance test from
a distance of 550 mm by pressing the “Center
Trigger” key.
10 mm
10 mm
10 mm10 mm
If the barcode is read normally, the
screen returns to the menu screen.
If the barcode cannot be read, press the
“CLR” key to return to the menu screen.
