IT-G500
Y
Cradle I/F (USB-Client)

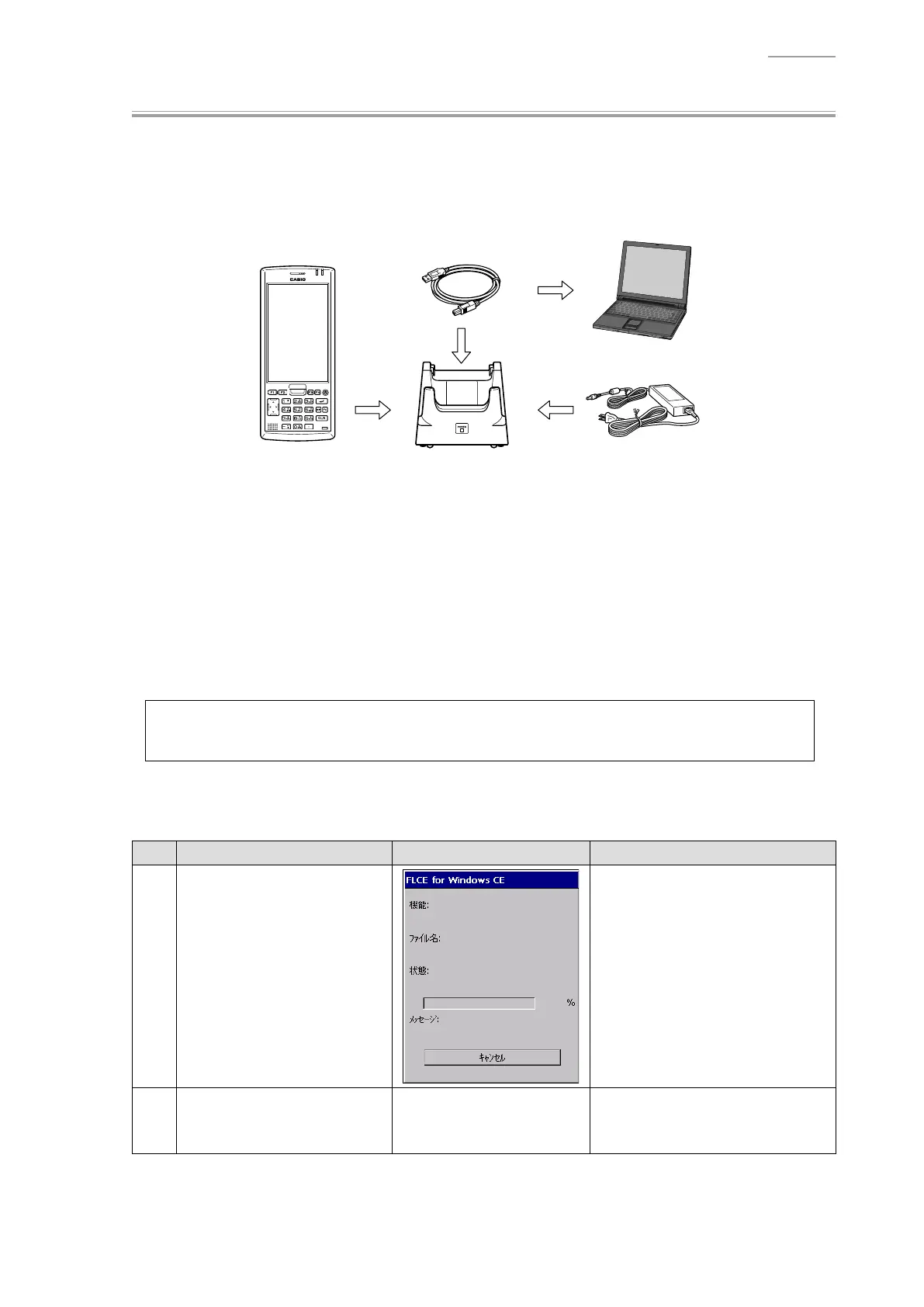

<Required equipment>
Connect equipment as follow.
USB cable
(to connect cradle to PC)
Test Object
Ethernet cradle AC adaptor & AC cord
* Pre-installation of the Microsoft ActiveSync/Windows Mobile Device Center is required.
Depends on OS to be used.
ActiveSync: for Windows XP or earlier,
Windows Mobile Device Center: for Windows Vista or later
PC*
<Preparation of you PC>
• Install “LMWIN” before starting test.
• Script fi les
Make fi les referring to the following format and save them to the folder (C:\Program Files\LMWIN) on
your PC.
/SO “C:\USBDATA.DAT” C:\FlasdDisk\DIAG\WLAN
/RO C:\FlashDisk\DIAG\WLAN\USBDATA.DAT C:\
• Store USBDATA.DAT on the C: drive.
<Testing procedure>
No. Operation Display Test Details
1
Start up “LMWIN” on your
PC and execute the script fi le
“CradleIF(Client)”.
Confi guration of “LMWIN”:
USB
Start up “
CradleUSBTest.
exe
” under \\My Device\
FlashDisk\DIAG.
Automatically judges the test
result after transferring USBDATA.
DAT (128 KB) between the PC
and IT-G500.
2
Check the test result and
press the “ENT” key.
Test is completed and the screen
returns to the OS screen.
To Next Page
