Casio IT-G500 User Manual

– 51 –
IT-G500

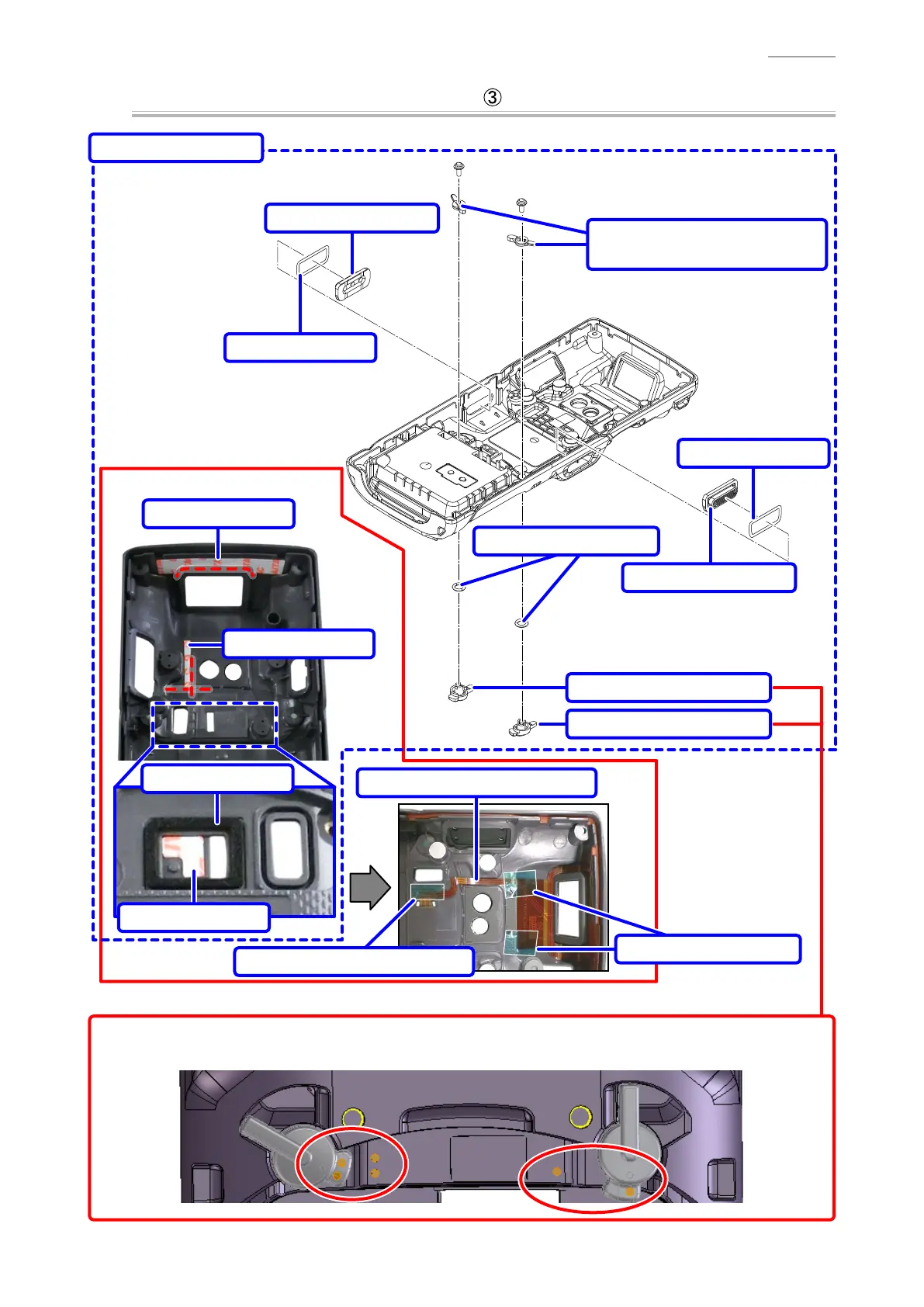

Disassembling the LOWER-CASE-UNIT
IT-G500-GC21E-ST Only
HOOK-L/BATTERY-PY024
HOOK-R/BATTERY-PY024
RING/LOCK/BATTERY
[ Note on reassembling ]
The number of dot marks of the battery pack cover lock switch should be the same as that on the case side.
LOCK/BATTERY-HOOK-PY024
Screws (S12)
D-TAPE/TRIGGER
SUB-ASSY/TRIGGER
SUB-ASSY/TRIGGER
D-TAPE/TRIGGER
CASE-ASSY/LOWER
TAPE-C/NFC
CUSHION/NFC
TAPE-A/NFC
TAPE-B/NFC
TAPE-G/CONNECTOR-PY22
FPC/NFC *NFC antenna
TAPE-B/CONNECTOR

Casio IT-G500 Specifications

General

Type	Handheld bar code reader
Wavelength	650 nm
Sensor type	CMOS
Scanner type	2D
Tilt reading angle	0 - 25 °
Optical sensor resolution	0.25 pixels
Linear (1D) barcodes supported	Codabar, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, MSI
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, QR Code
Battery voltage	3.7 V
Power source type	Battery
Battery technology	Lithium
USB version	2.0
Standard interfaces	USB, Bluetooth, Wireless LAN
Connectivity technology	Wireless
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
RAM capacity	512 MB
Keys quantity	22 keys
Product color	Black
LED indicators	Charging, Status
Internal memory	4000 MB
Built-in display	Yes
Housing material	-
Display resolution	480 x 800 pixels
Display technology	LCD/TFT
Processor frequency	1.5 MHz
Protection features	Dust resistant, Water resistant
International Protection (IP) code	IP67

Weight and Dimensions

Depth	22 mm
Width	74 mm
Height	175 mm
Weight	270 g
