– 50 –
IT-G500

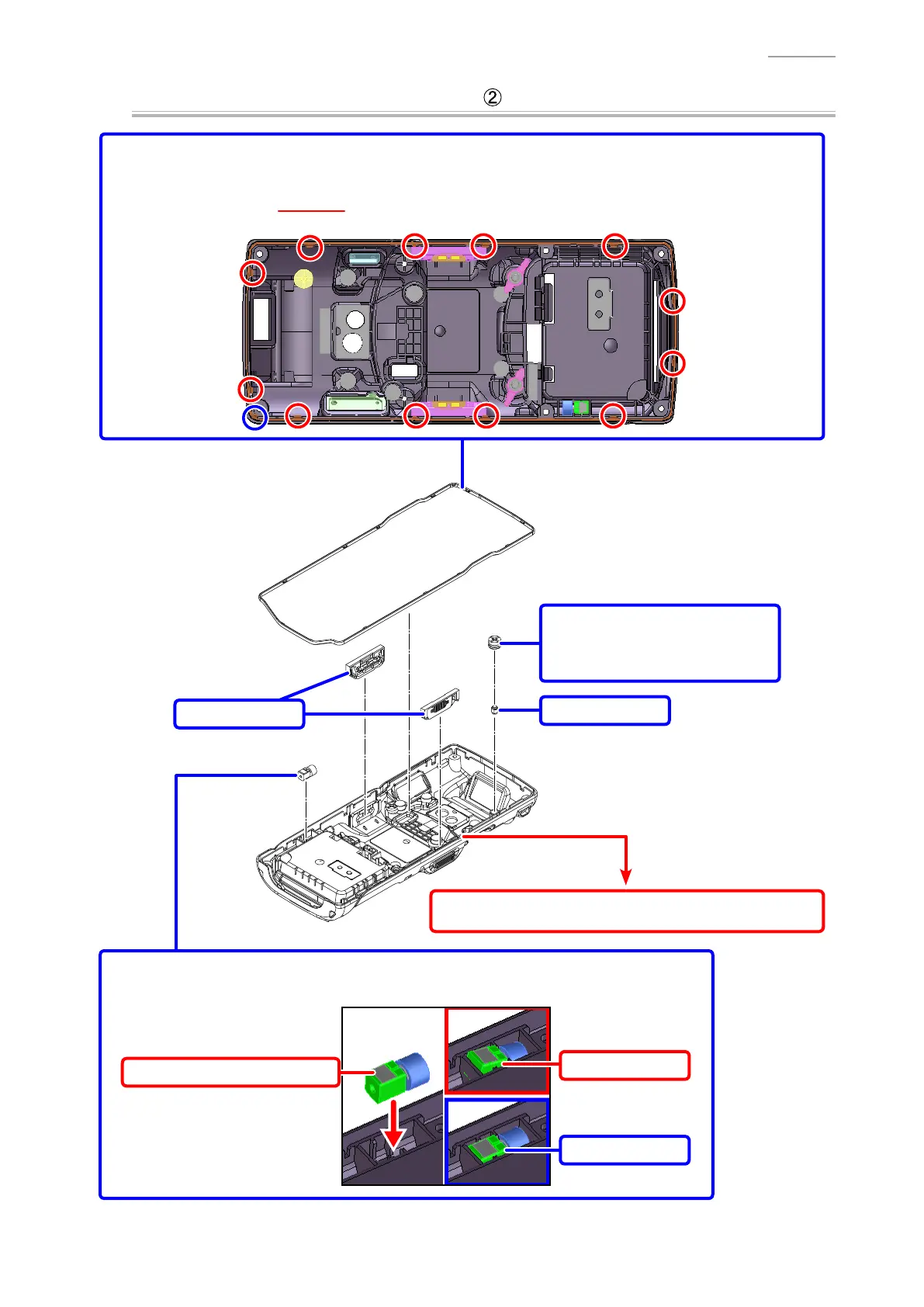

Disassembling the LOWER-CASE-UNIT
BUTTON/RESET
TRIGGER UNIT
MOTOR/VIBRATION
[ Note on reassembling ]
Terminal surface: Facing up
NG: Inclining.
OK
RUBBER/RESET
[ Note on reassembling ]
Push it until it stops.
PACKING/PL
[ Note on reassembling ]
Insert it into the part indicated by the blue circle.
Insert the convex parts (
13 places) of the packing into the respective slits in the case to secure them.
Disassembling the LOWER-CASE-UNIT
To Next Page
