Casio IT-G500

– 59 –
IT-G500

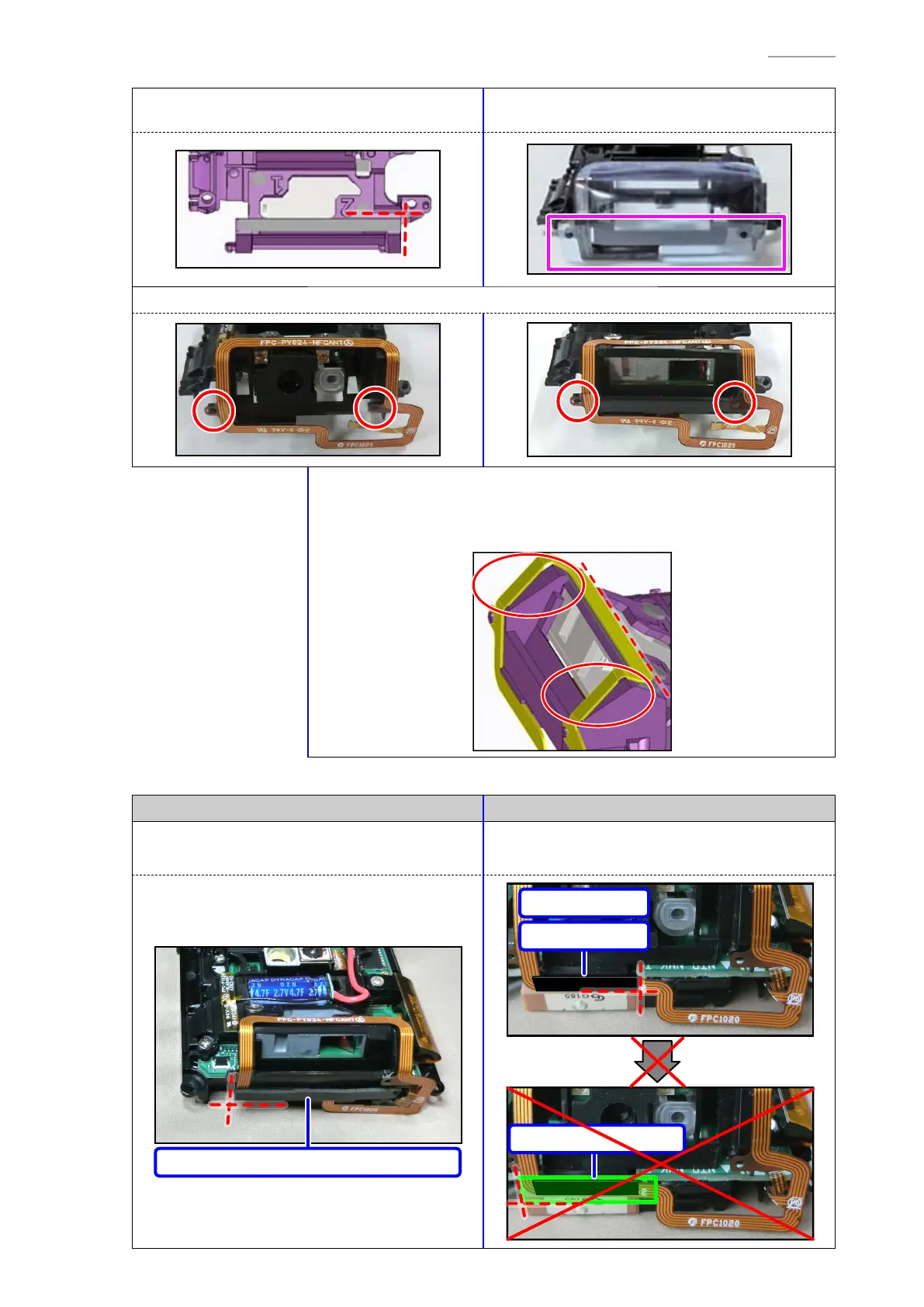

Peel off the upper side of the release paper and
attach the double-face tape.
Peel off the lower side of the release paper and
attach the double-face tape.
Attach the NFC antenna while aligning it with the guides.
Attach the upper section of the NFC antenna while aligning it with the
reference position shown below.
Although an interspace between the NFC antenna and the case is created,
this is normal.
Non-WAN model WAN model

Attach the SPACER/INNER CASE.

Attach the tapes (TAPE/GPS,
TAPE/CONNECTOR-C).
SPACER/INNER CASE * Part eliminated
TAPE/GPS
TAPE/CONNECTOR-C
CUSHION/GPS
