– 60 –
IT-G500
Disassembling the I-CASE
Y
WAN model: (1) to (2)
NOTE:
For assembling process, refer to “6-2. Separating the INNER-CASE-UNIT and UPPER-
CASE-UNIT”.

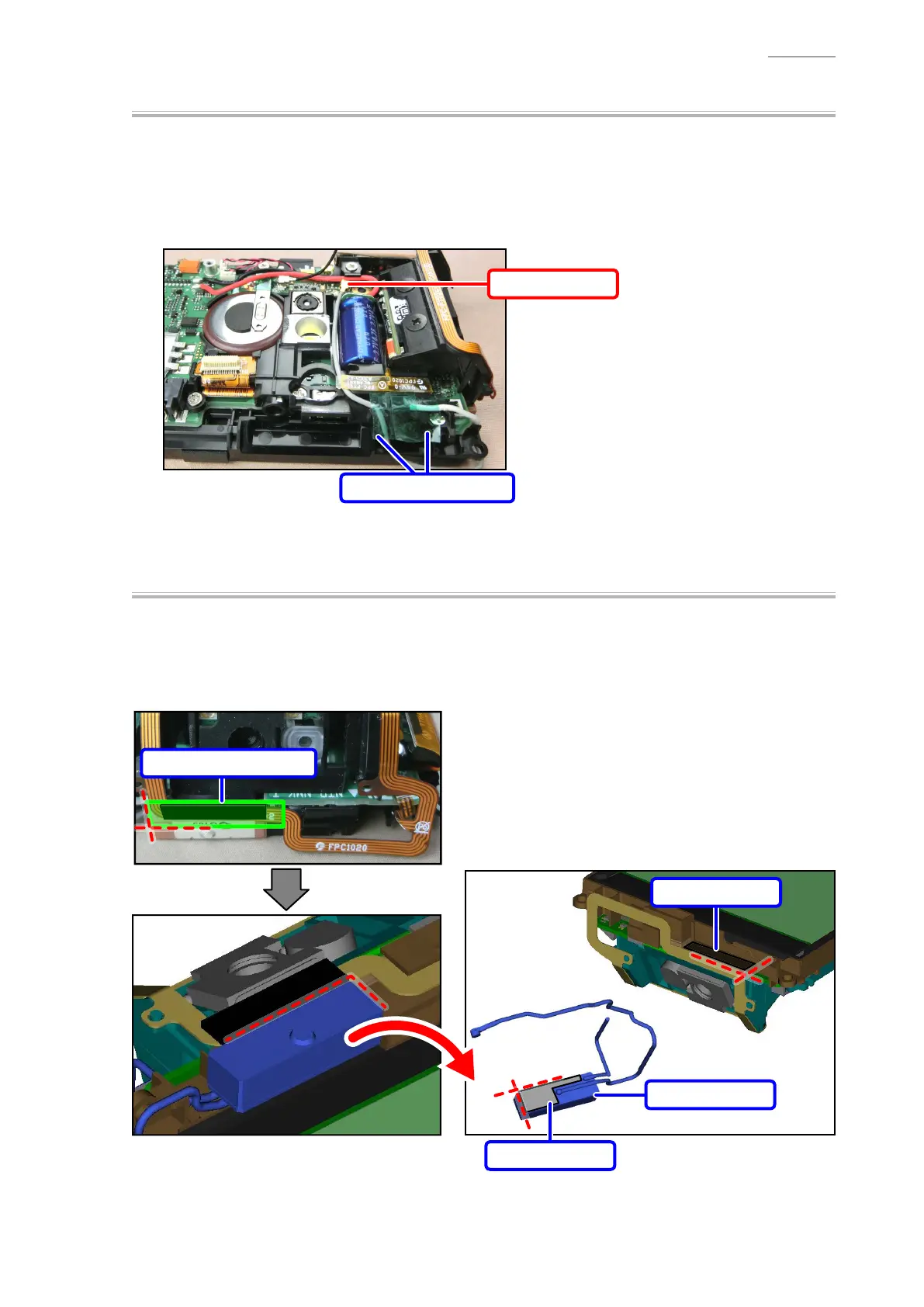

(1) Peel the tapes (TAPE/CONNECTOR-A) (2 places).
(2) Remove the GPS cable.
GPS cable
TAPE/CONNECTOR-A
(3) If the NFC antenna is not replaced, go to (4).
Replacing the GPS antenna

Peel off the tape (TAPE/CONNECTOR-C).

Replace the GPS-ANTENNA with a new 1.
NOTE:
The GPS-ANTENNA is secured by 2 spacers (SPACER/GPS-A, SPACER/GPS-B).
TAPE/CONNECTOR-C
SPACER/GPS-B
SPACER/GPS-A
GPS-ANTENNA
