— 24 —

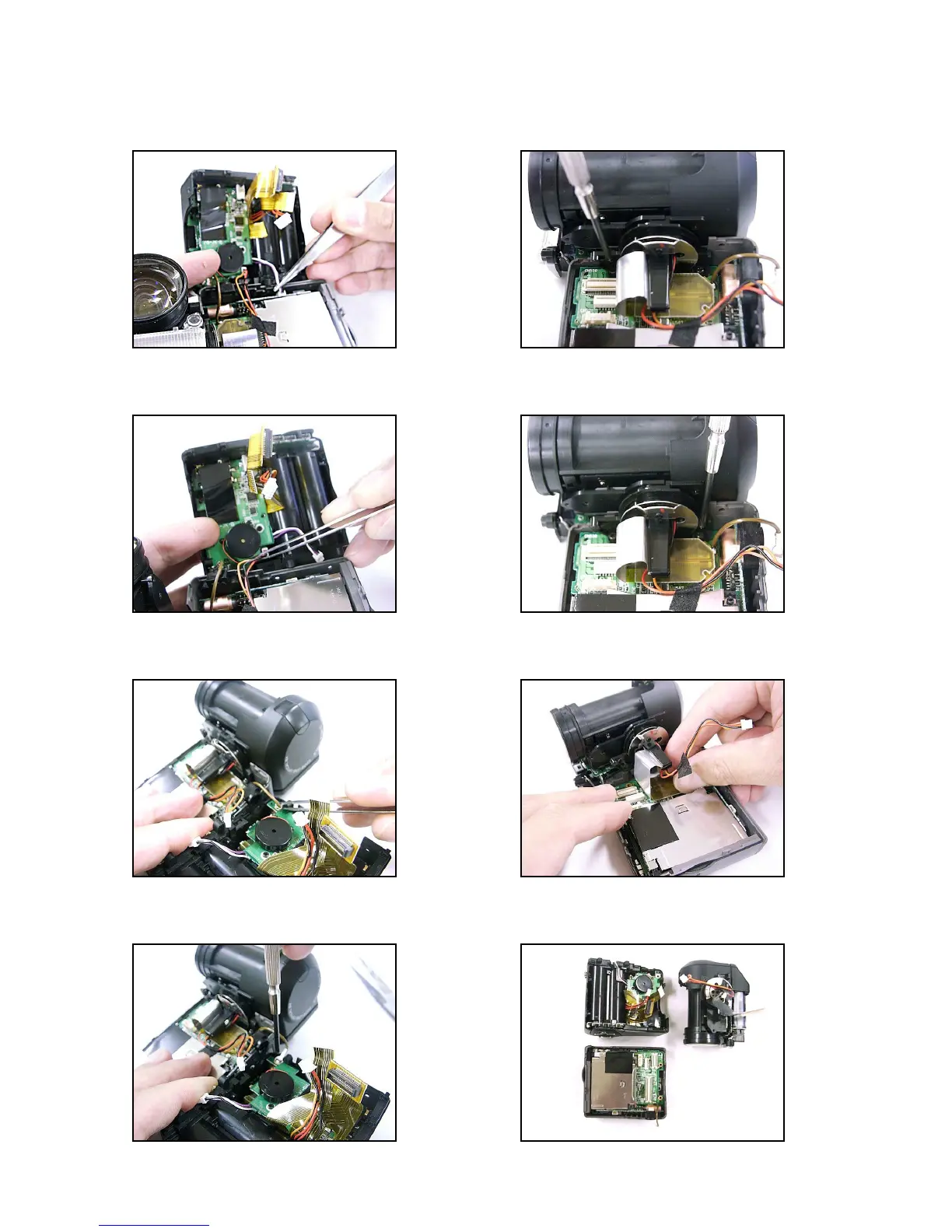

15. Remove the connector (CN900).
16. Remove the connector (CN101).
17. Lift up the bending of solderless terminal.
18. Remove the silver screw.
19. Remove the screw affixing the lens block.
20. Remove the screw affixing the lens block.
21. Remove the connector (CN510).
22. Separated in three blocks.
