— 9 —

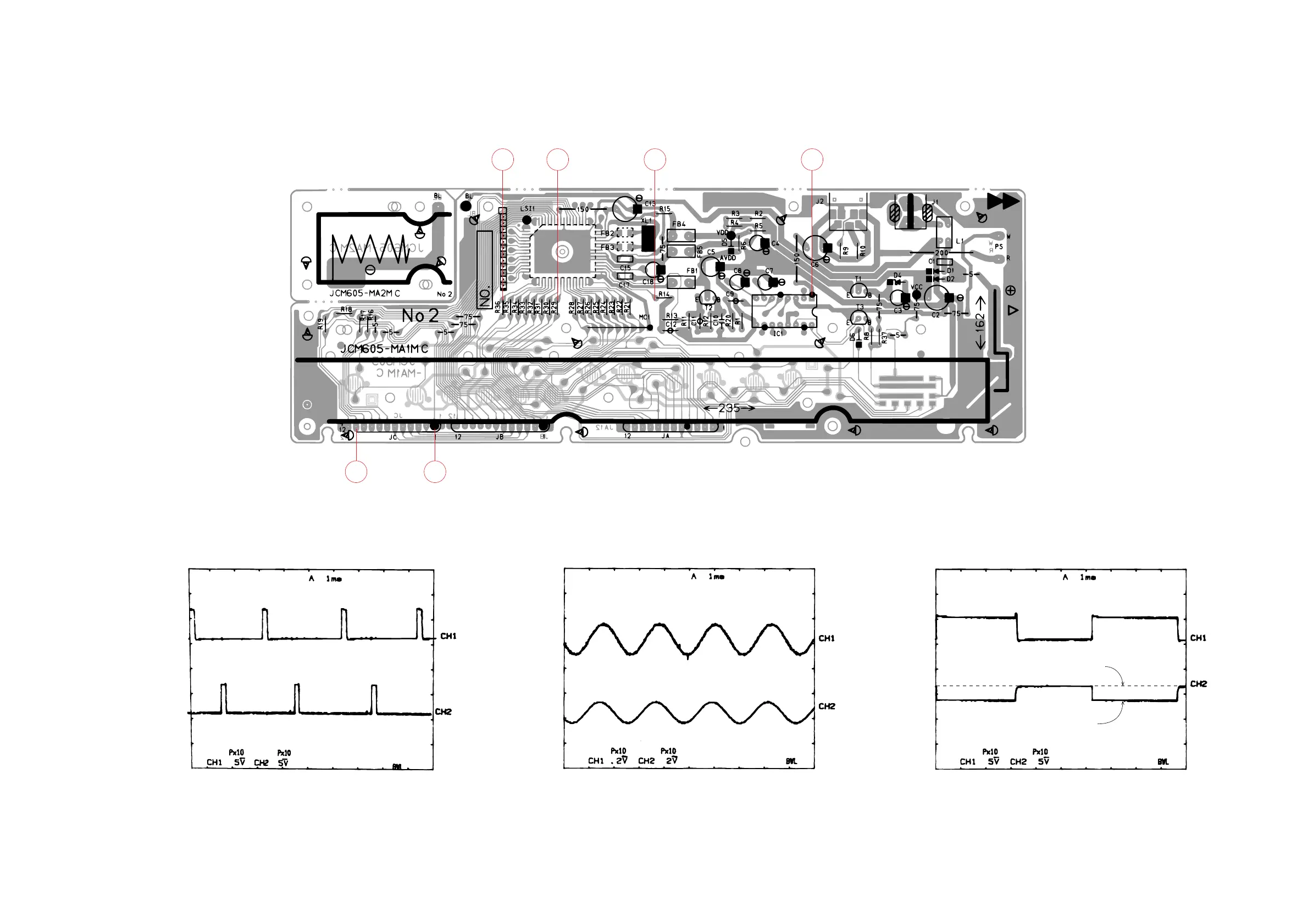

PCB VIEW
AND MAJOR W
A
VEFORMS
1
2
1
2
Key scan signal KO0
MSM6521-11 pin39
Key scan signal KO7
MSM6521-11 pin46
3
4
3
4
Sound signal output
MSM6521-11 pin29
Power amp output
AN8053N pin 1
Key A3 ON
Key A3 OFF (5.6V)
5
6
5
6
LED drive signal LY7
JC connector pin1
LED drive signal LX3
JC connector pin11
2
3
1
4
5
6
10
12
