— 12 —

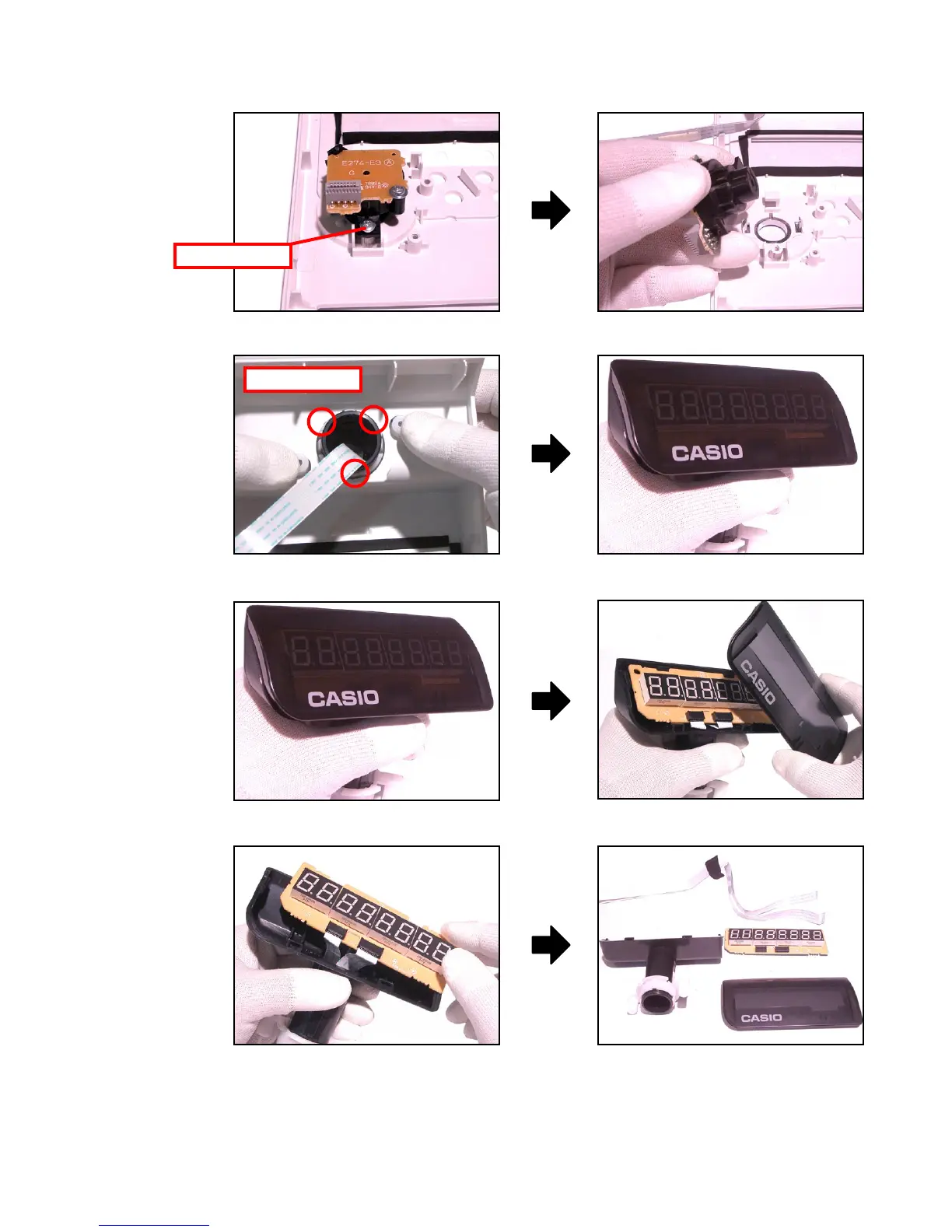

4. Remove the screw and then the MODE SW ASS’Y.
Screw
5. Remove the hook and then remove the STROBE ASSY
Hooks
6. Remove the hook and then remove the STROBE ASSY.
7. Remove two FPCs and then remove the Rear Display Board.
