— 9 —
3. Remove the battery cover and disengage the battery.
4. Remove 3 screws.
Screw
Screws
Printer cover
T
ake-up reel
3. DISASSEMBL
Y
■

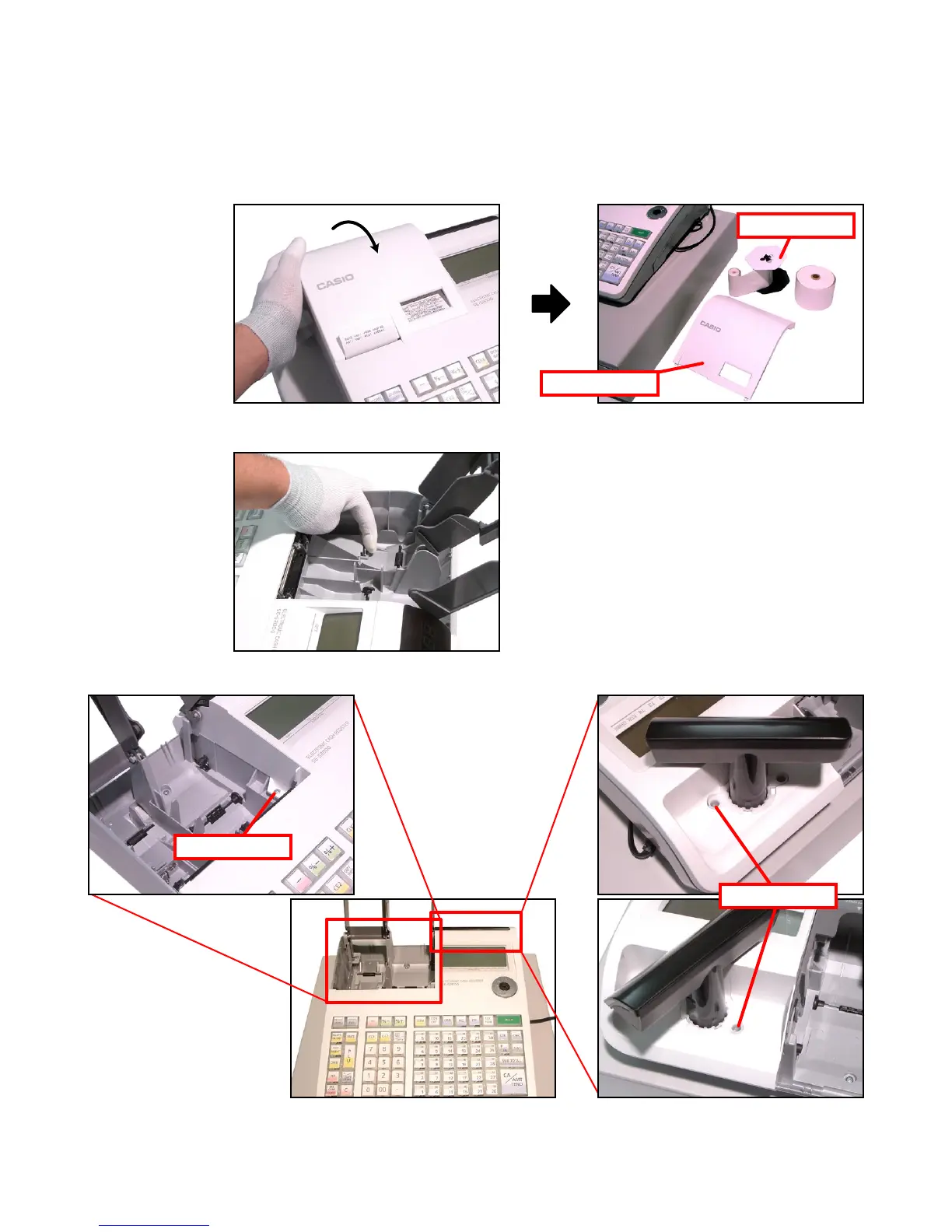

Removing the upper case block
1. Remove the Printer cover.
2. Remove two Roll paper and theTake-up reel.
10
12
Table of Contents
Table of Contents
2
Specifications
3
Initializing the Cash Register
6
Machine Initialization
6
Clearing a Machine Lock up
7
Disassembly
11
Block Diagram
19
Diagnostic Operation
20
When an Error Occurs
41
Error Code List
41
Pcb Layout
43
Circuit Diagrams
45
Parts List
54
4
