— 13
—
■

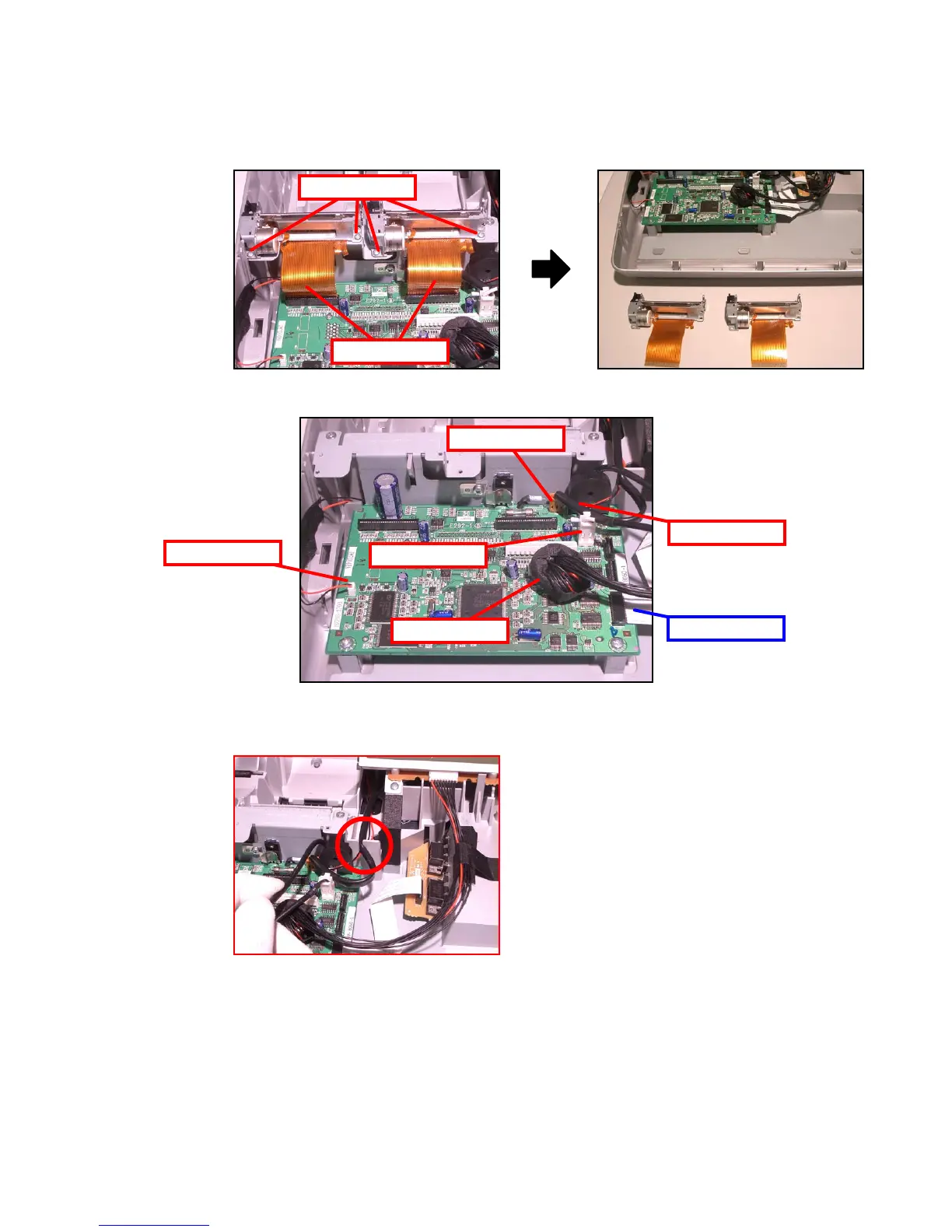

Lower case block disassembly (Printer unit, MAIN PCB, LCD unit, E292-COM PCB)
1. Remove 4 screws.
2. Remove 2 FPCs and then 2 Printer units.
Screws
FPCs
3. Remove the FPC and 5 connectors.
Power
LCD
Battery
Drawer
Motor
Assembling Point:
Run the power cable and the motor wires through the groove on the case.
COM Port
14
16
Table of Contents
Table of Contents
2
Specifications
3
Initializing the Cash Register
6
Machine Initialization
6
Clearing a Machine Lock up
7
Disassembly
11
Block Diagram
19
Diagnostic Operation
20
When an Error Occurs
41
Error Code List
41
Pcb Layout
43
Circuit Diagrams
45
Parts List
54
