— 45 —
SW1, R234, C112: not used
E292-1
Model
NameBoard No. Drawing No.

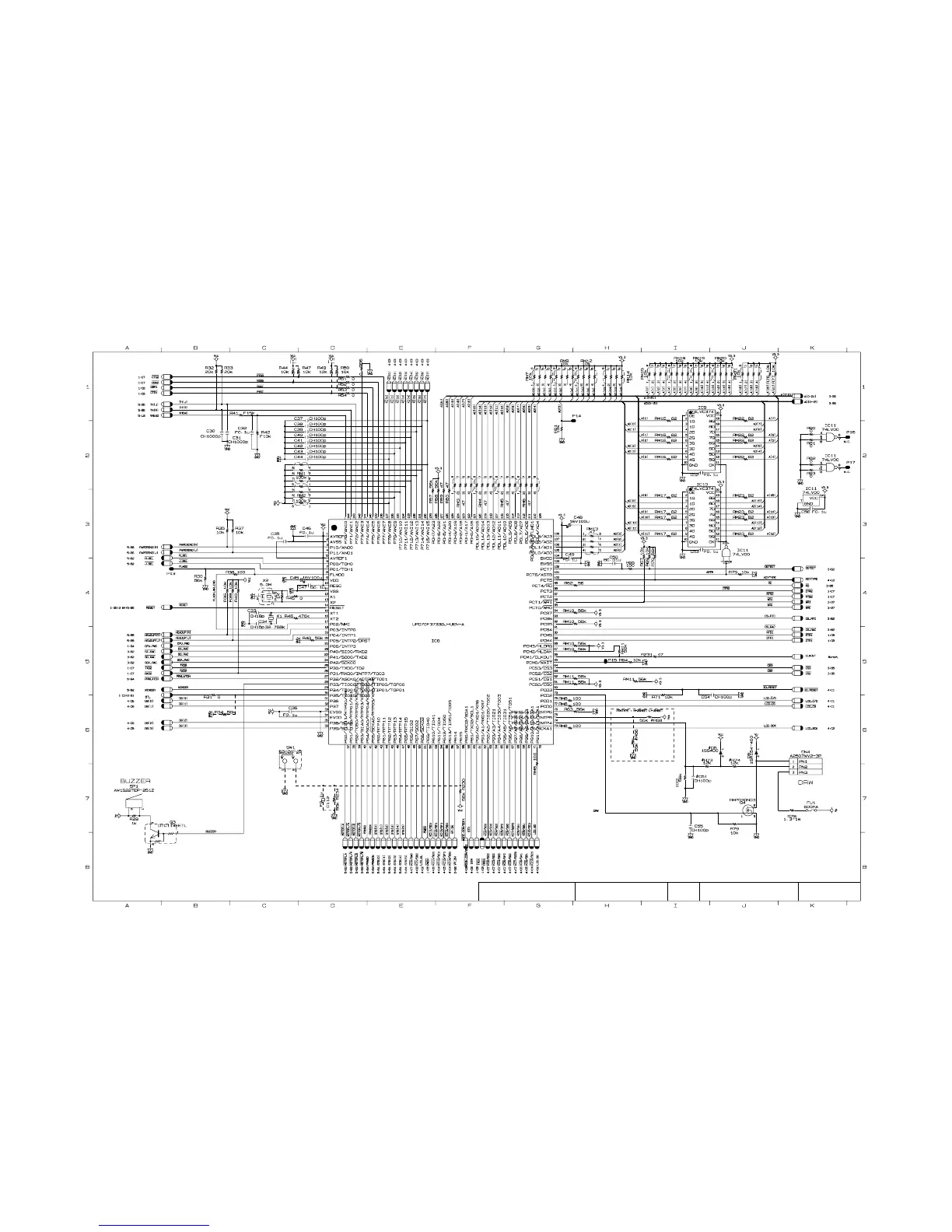

MAIN BOARD 2/5 (CPU)
RJE502513D201CASIO COMPUTER CO.,LTD. SE-S300/S2000/C300/C2000
