G. MOTOR-ASSY

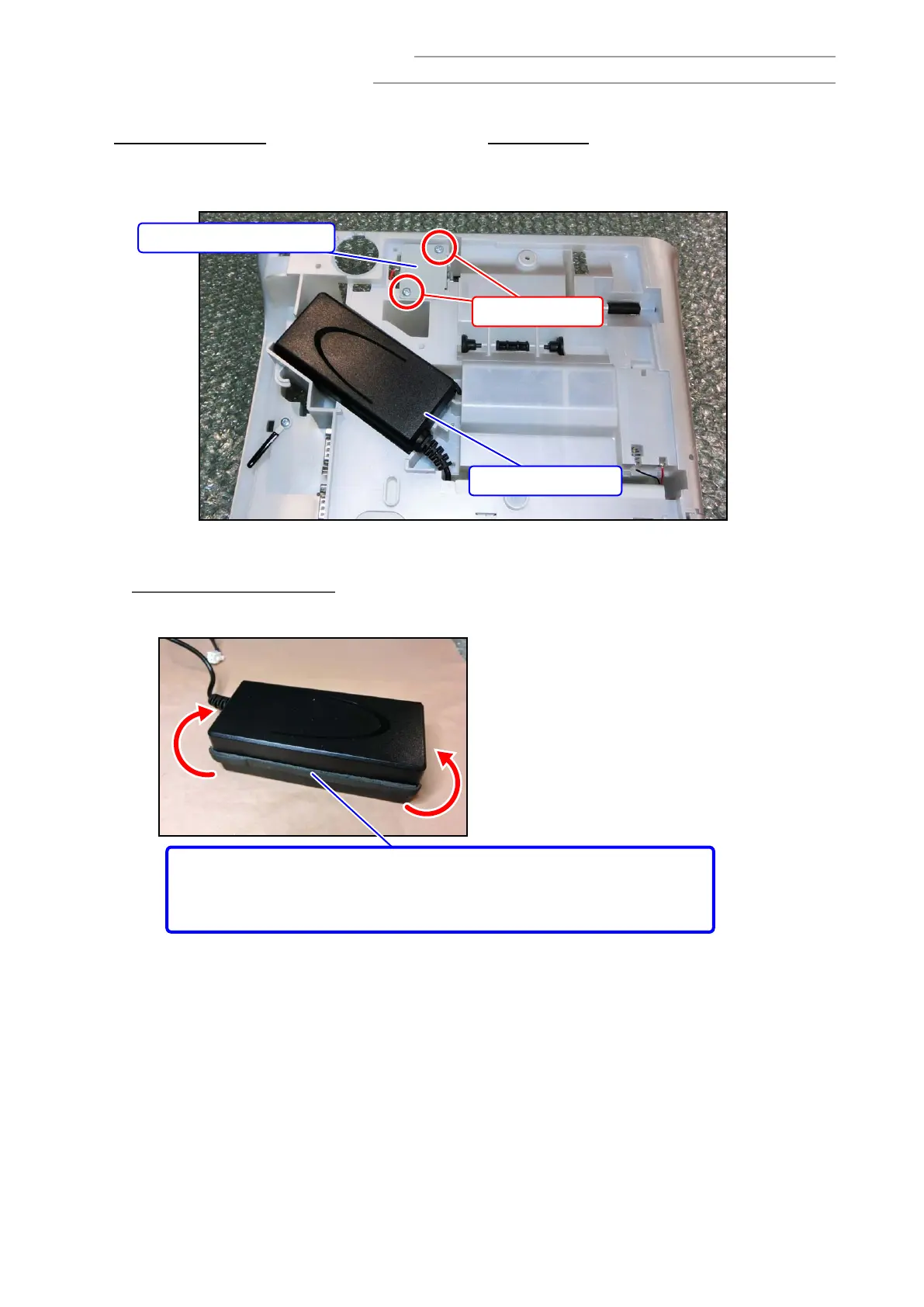

G-1. Undo two screws.
G-2. Remove the MOTOR-ASSY.
H. PS-UNIT
H-1. Remove the PS-UNIT.
MOTOR-ASSY
Screws (S1)
PS-UNIT
NOTES ON ASSEMBLY
Be sure to attach CUSHION/120X6 when replacing the PS-UNIT.
CUSHION/120X6
Attach the cushion in the middle as shown in the photo and fold the edges.
