E-37
3. Data Transfer between a Computer and fx-9860G Series/fx-9750GII/fx-7400GII

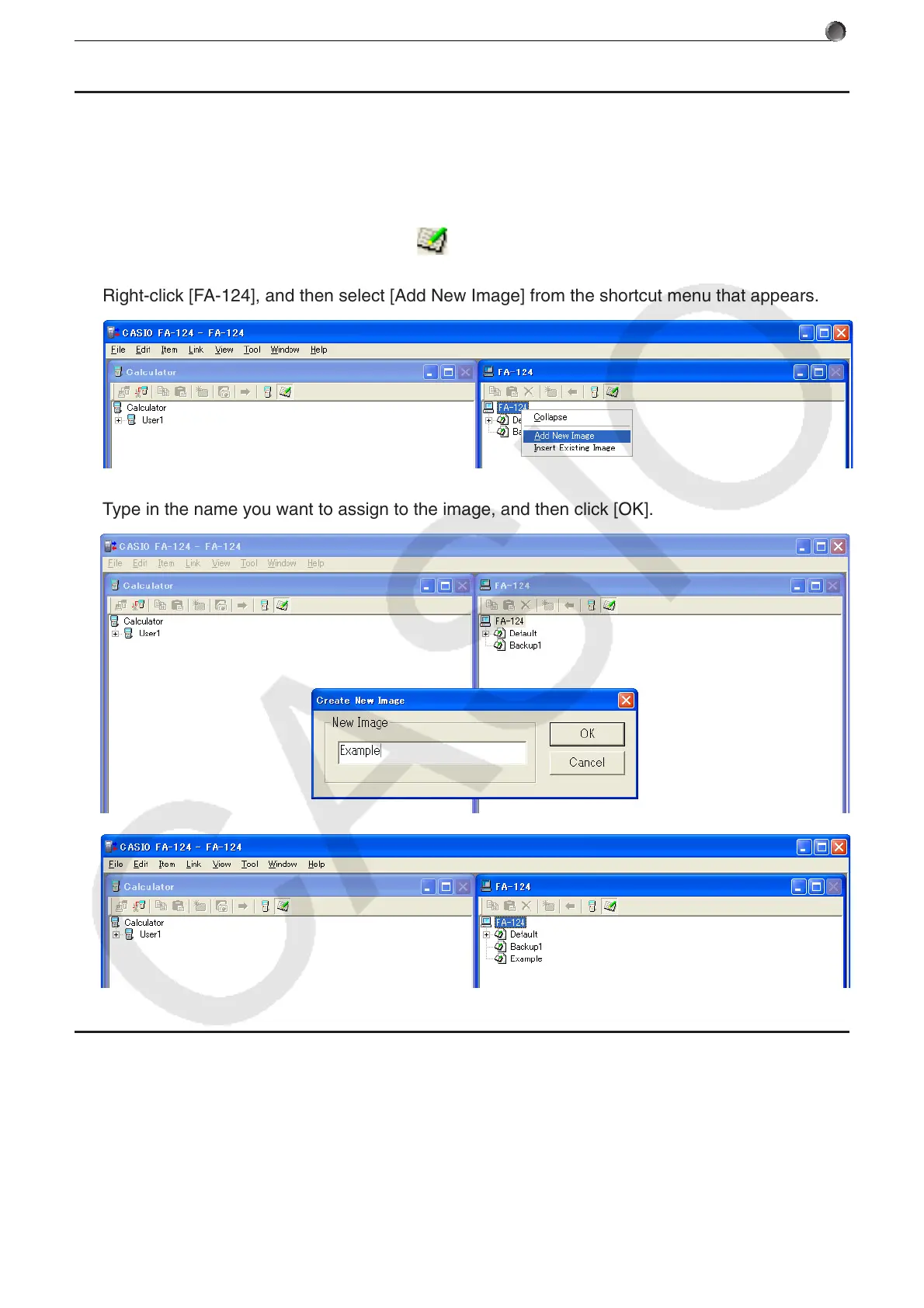

Adding a Flash Image or Memory Image
Use the procedure below when you want to add a flash image or memory image to the FA-124
window. The following procedure shows how to add a flash image. The procedure for adding a
memory image is virtually identical.
1
. On the FA-124 window, click the toolbar button.
2
. Right-click [FA-124], and then select [Add New Image] from the shortcut menu that appears.
3
. Type in the name you want to assign to the image, and then click [OK].
Exporting Flash Images and Memory Images
A flash image or memory image can be saved to a file, and then stored on a computer’s hard disk.
1
. On the FA-124 window, click the image you want to export.
To Next Page
