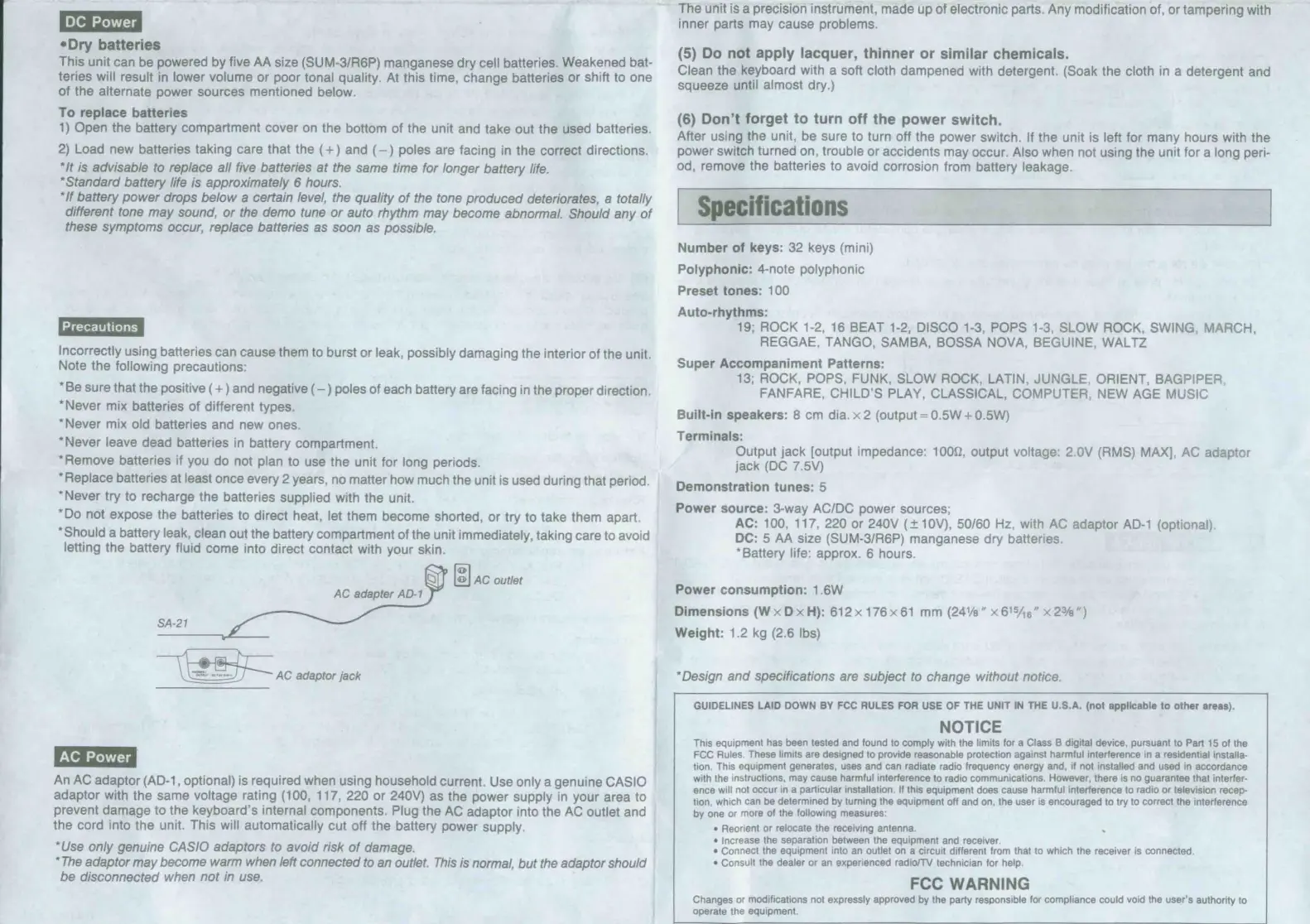

Casio SA-21 User Manual

eDry batteries
This unit can be powered by five AA size (SUM-3/R6P) manganese dry cell batteries. Weakened bat-
teries will result in lower volume or poor tonal quality. At this time, change batteries or shift to one
of the alternate power sources mentioned below.
To replace batteries
1) Open the battery compartment cover on the bottom of the unit and take out the used batteries.
2) Load new batteries taking care that the (+) and (—) poles are facing in the correct directions.
“It is advisable to replace all five batteries at the same time for longer battery life.
*Standard battery life is approximately 6 hours.
"If battery power drops below a certain level, the quality of the tone produced deteriorates, a totally
different tone may sound, or the demo tune or auto rhythm may become abnormal. Should any of
these symptoms occur, replace batteries as soon as possible.
Precautions
Incorrectly
using
batteries
can
cause
them
to
burst
or
leak,
possibly
damaging
the
interior
of
the
unit.
Note
the
following
precautions:
“Be
sure
that
the
positive
(+)
and
negative
(—)
poles
of
each
battery
are
facing
in
the
proper
direction.
“Never
mix
batteries
of
different
types.
“Never mix old batteries and new ones.
“Never leave dead batteries in battery compartment.
“Remove batteries if you do not plan to use the unit for long periods.
“Replace batteries at least once every 2 years, no matter how much the unit is used during that period.
“Never try to recharge the batteries supplied with the unit.
“Do
not
expose
the
batteries
to
direct
heat,
let
them
become
shorted,
or
try
to
take
them
apart.
*Should
a
battery
leak,
clean
out
the
battery
compartment
of
the
unit
immediately,
taking
care
to
avoid
letting
the
battery
fluid
come
into
direct
contact
with
your
skin.
(g] AC outlet
AC adapter AD-1
AC adaptor jack
An AC adaptor (AD-1, optional) is required when using household current. Use only a genuine CASIO
adaptor with the same voltage rating (100, 117, 220 or 240V) as the power supply in your area to
prevent damage to the keyboard’s internal components, Plug the AC adaptor into the AC outlet and
the cord into the unit. This will automatically cut off the battery power supply.
*Use only genuine CASIO adaptors to avoid risk of damage.
*The adaptor may become warm when left connected to an outlet. This is normal, but the adaptor should
be disconnected when not in use.
The unit is a precision instrument, made up of electronic parts. Any modification of, or tampering with
inner parts may cause problems.
(5) Do not apply lacquer, thinner or similar chemicals.
Clean the keyboard with a soft cloth dampened with detergent. (Soak the cloth in a detergent and
squeeze until almost dry.)
(6) Don’t forget to turn off the power switch.
After using the unit, be sure to turn off the power switch. If the unit is left for many hours with the
power switch turned on, trouble or accidents may occur. Also when not using the unit for a long peri-
od, remove the batteries to avoid corrosion from battery leakage.
Number of keys: 32 keys (mini)
Polyphonic: 4-note polyphonic
Preset tones: 100
Auto-rhythms:
19; ROCK 1-2, 16 BEAT 1-2, DISCO 1-3, POPS 1-3, SLOW ROCK, SWING, MARCH,
REGGAE, TANGO, SAMBA, BOSSA NOVA, BEGUINE, WALTZ
Super Accompaniment Patterns:
13; ROCK, POPS, FUNK, SLOW ROCK, LATIN, JUNGLE, ORIENT, BAGPIPER,
FANFARE, CHILD’S PLAY, CLASSICAL, COMPUTER, NEW AGE MUSIC
Built-in speakers: 8 cm dia. x 2 (output = 0.5W +0.5W)
Terminals:
Output jack [output impedance: 1000, output voltage: 2.0V (RMS) MAX], AC adaptor
jack (DC 7.5V)
Demonstration tunes: 5
Power source: 3-way AC/DC power sources;
AC: 100, 117, 220 or 240V (+10V), 50/60 Hz, with AC adaptor AD-1 (optional).
DC: 5 AA size (SUM-3/R6P) manganese dry batteries.
*Battery life: approx. 6 hours.
Power consumption: 1.6W
Dimensions (W x Dx H): 612 17661 mm (24%” x 61545” x 2%”)
Weight: 1.2 kg (2.6 Ibs)
“Design and specifications are subject to change without notice.
GUIDELINES LAID DOWN BY FCC RULES FOR USE OF THE UNIT IN THE U.S.A. (not applicable to other areas).
NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installa-
tion, This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may Cause harmful interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
* Reorient or relocate the receiving antenna. .
¢ Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
