— 15 —

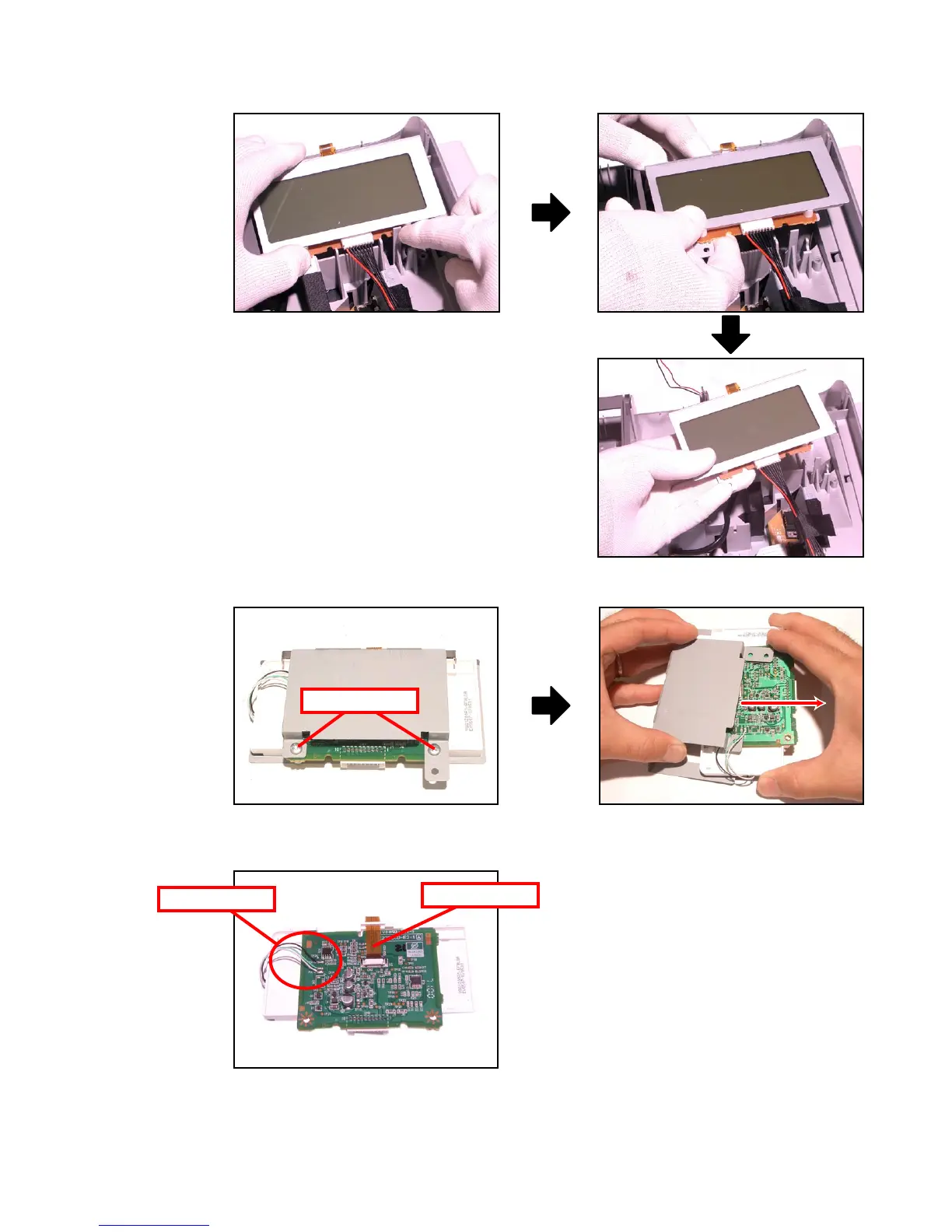

9. Remove 2 screws and then the LCD and E292LCD-E2 PCB.
Screws
10. Unsolder to remove 3 lead wires.
11. Remove the FPC and then the E292LCD-E2 PCB.
Lead wires
FPC
8. Remove the hook and then remove the LCD ASSY.
