— 16
—

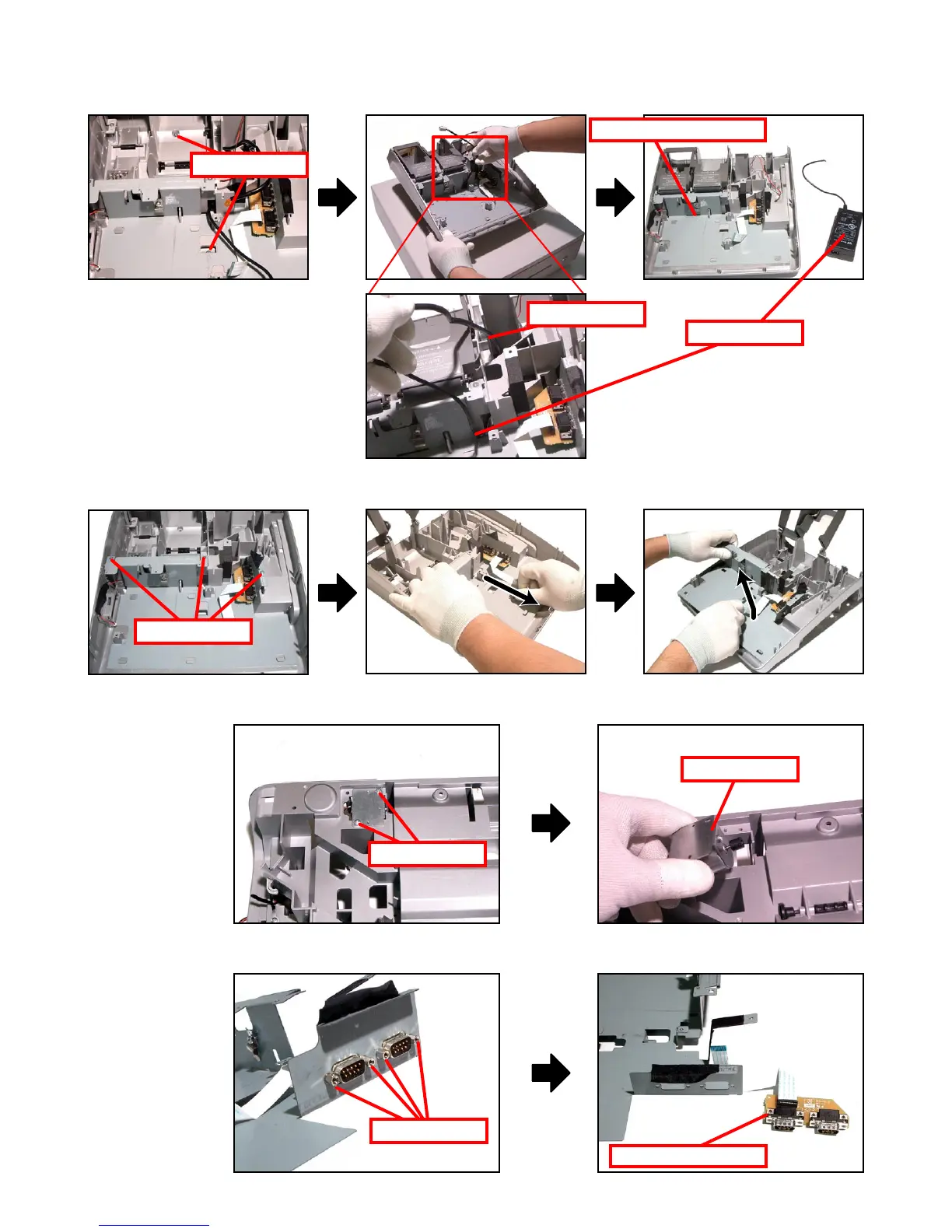

12. Remove 2 screws and then the Lower case unit ans AC Adaptor.
Screws
Drawer
AC
Adaptor
Lower case unit
13. Remove 3 screws and then the Lower case unit ans AC Adaptor.
14. Remove 2 screws and then the Motor assy.
Screws
Motor assy
15. Remove 4 screws and then the E292-COM PCB.
E292-COM PCB
Screws
Screws
17
19
Table of Contents
Table of Contents
2
Specifications
3
Initializing the Cash Register
6
Machine Initialization
6
Clearing a Machine Lock up
7
Disassembly
11
Block Diagram
19
Diagnostic Operation
20
When an Error Occurs
41
Error Code List
41
Pcb Layout
43
Circuit Diagrams
45
Parts List
54
